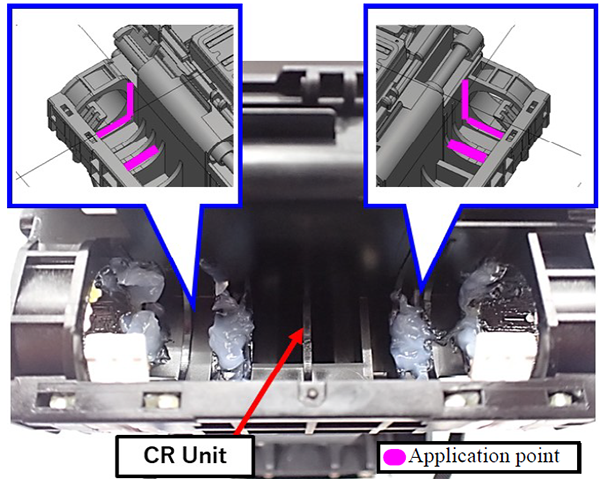

Lubrication 7
| Corresponding Part | CR Unit |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | Apply up to the ribs |
| Tools | ⌀1 mm syringe |
| Lubrication Manner | Lubricate with syringe on the application point as shown in the figure. |
| Precautions | --- |
