Adjustment of Left PG Adjustment Lever (left side of printer)

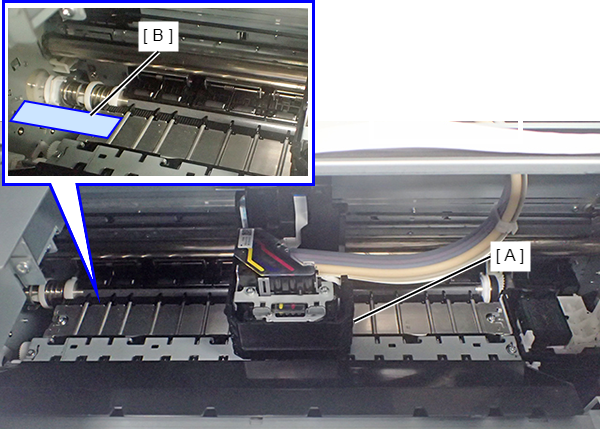

  1. Move the CR Unit (A) to the center of the printer, and place the 1.41 mm thickness gauge (1.33 mm thickness gauge + 0.08 mm Teflon tape) (B) at the position shown below.

  2. Move the CR Unit to the thickness gauge and check whether or not the nozzle surface of the print head touches the thickness gauge.
    • If touches the thickness gauge: Proceed to step 3.
    • If does not touch the thickness gauge: Perform the adjustment in the procedure below.

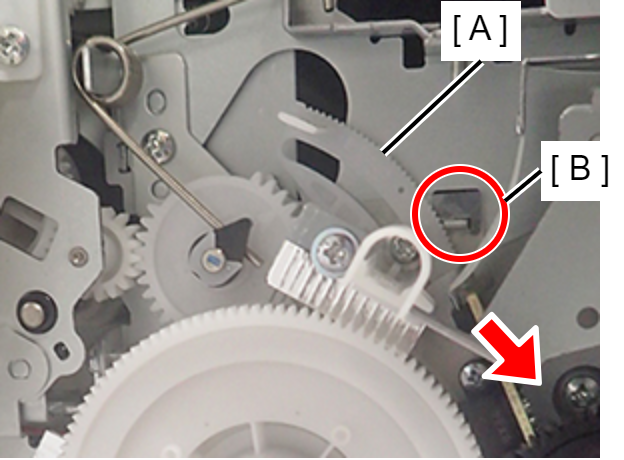

    1. Move the CR Unit to the center of the printer and move the notch of the Left PG Adjustment Lever (A) one notch from the rib (B) in the minus direction.
    2. Move the CR Unit to the thickness gauge again and check whether or not the nozzle surface of the print head touches the thickness gauge.
      • If touch the thickness gauge: Proceed to step 3.

      • If does not touches the thickness gauge: Move the CR Unit to the center part of the printer, and repeat the work of step 1 to 2 until the nozzle surface touches the thickness gauge.

  3. Move the CR Unit (A) to the center of the printer, and place the 1.31 mm thickness gauge (1.23 mm thickness gauge + 0.08 mm Teflon tape) (B) at the position shown below.
  4. Move the CR Unit to the thickness gauge and check whether or not the nozzle surface of the print head touches the thickness gauge.
    • If does not touch the thickness gauge: End adjustment.
    • If touches the thickness gauge: Perform the adjustment in the procedure below.

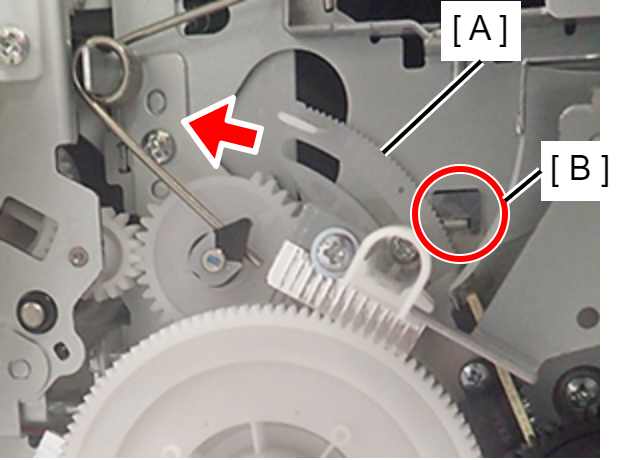

    1. Move the CR Unit to the center of the printer and move the notch of the Left PG Adjustment Lever (A) one notch from the rib (B) in the plus direction.
    2. Move the CR Unit to the thickness gauge again and check whether or not the nozzle surface of the print head touches the thickness gauge.
      • If does not touch the thickness gauge: End adjustment.
      • If touches the thickness gauge: Move the CR Unit to the center part of the printer, and repeat the work of step 1 to 2 until the nozzle surface does not touch the thickness gauge.
    Caution / 注意

    After adjusting the Right PG Adjustment Lever and the Left PG Adjustment Lever, adjust the Right PG Adjustment Lever again.
