Counter reset [B16]

  1. Start the service support mode. (Service mode startup and operating procedures)
  2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

  3. Select [Counter reset].

    Check Point / チェックポイント

    Select and execute the corresponding adjustment item using either procedure below.

    • Selecting by entering the program number

    1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
    2. Press the [#] button and software number key is displayed on LCD. Enter program number “16”.
    3. Press the [#] button.

    • Selecting from menu

    1. Select “Individual Adjustment: MENU” from the Adjustment menu.
    2. Select “Initial Setting Menu” from the Individual Adjustment menu.
    3. Select “Counter Reset” from the Initialize menu.

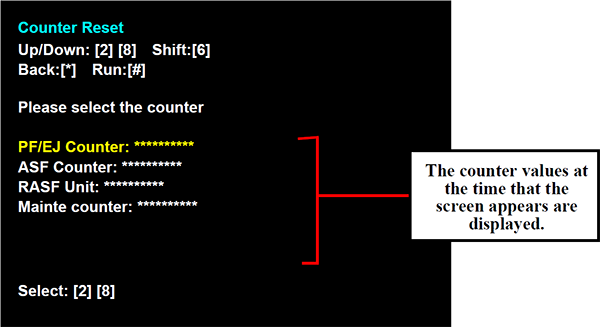

  4. The following screen will be displayed. Select the counter to reset, and press the [#] button.

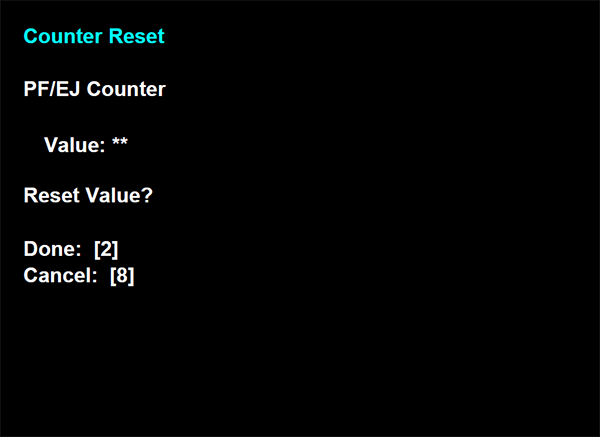

  5. [2] Press the button to execute initialization.(To not execute it, press the [8] button to return to the Initial Setting menu)
  6. After counter initialization is executed, check that the values of the initialized counters have changed to [0] in the counter reset screen.
