# Rear ADF Cover

1. Disengage the two dowels, then remove the ADF Cover Assy (A).

2. Disengage the two dowels, then remove the ASF Cover (A).

3. Remove the two Screw Cover Seals (A).

4. Remove the three screws.


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
5. Disengage the three hooks, and remove the Rear ADF Cover Assy (A).

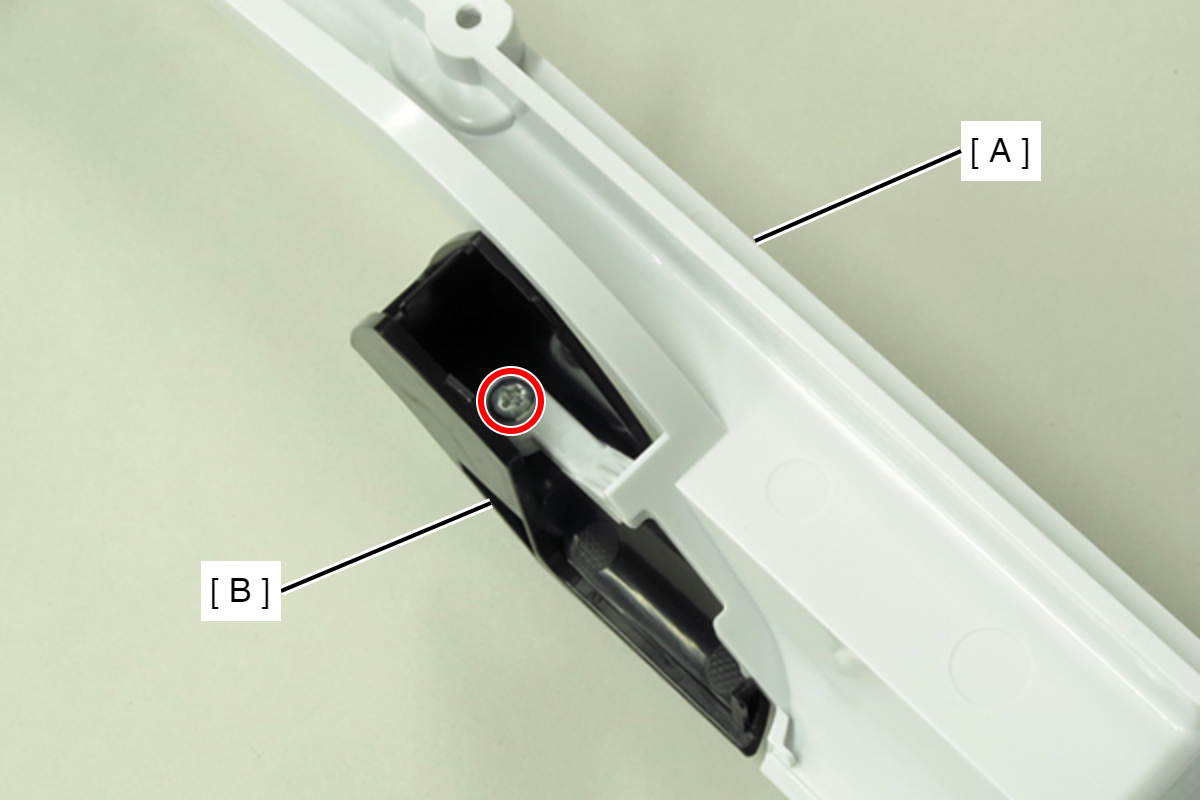

6. Remove the screw, then remove the Rear ADF Base (B) from the Rear ADF Cover (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
