Front Cover Assy

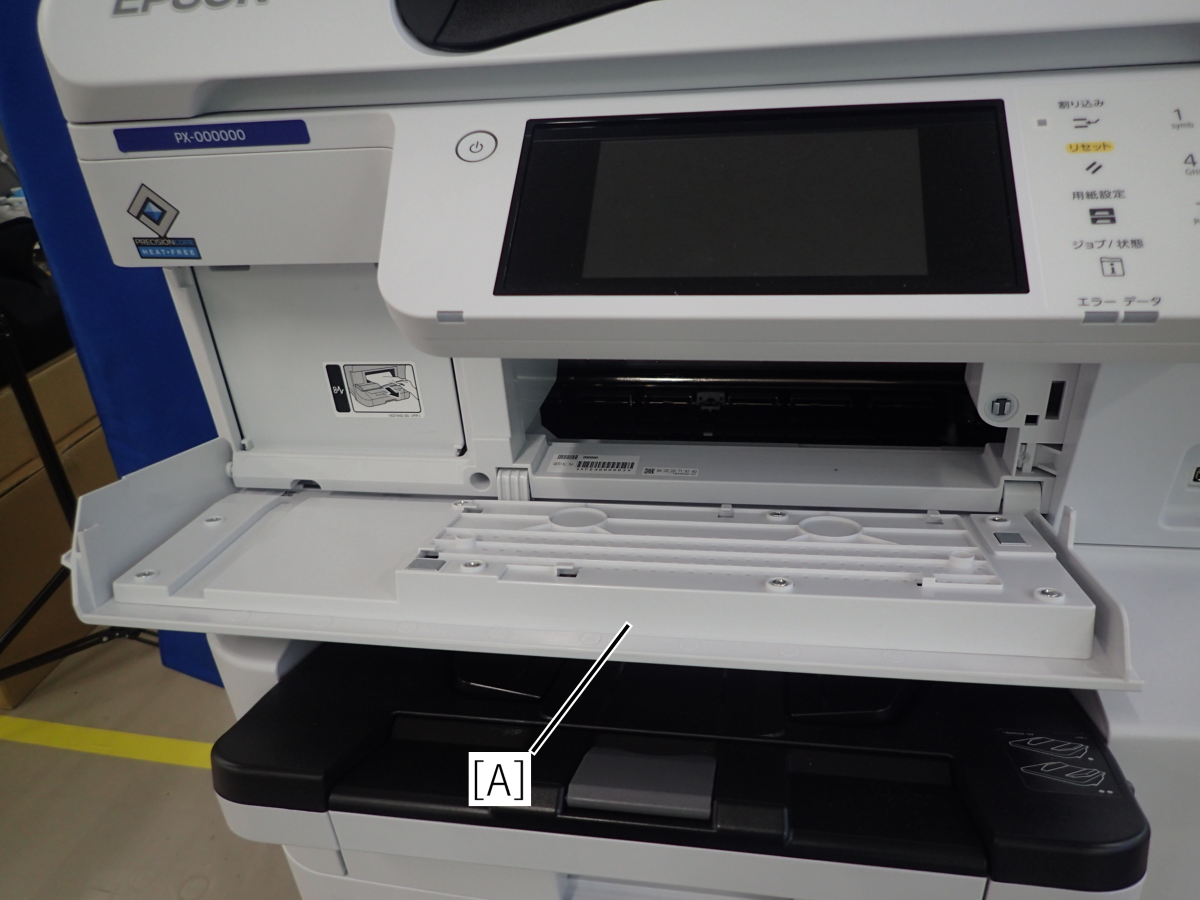

- Open the Front Cover Assy (A).

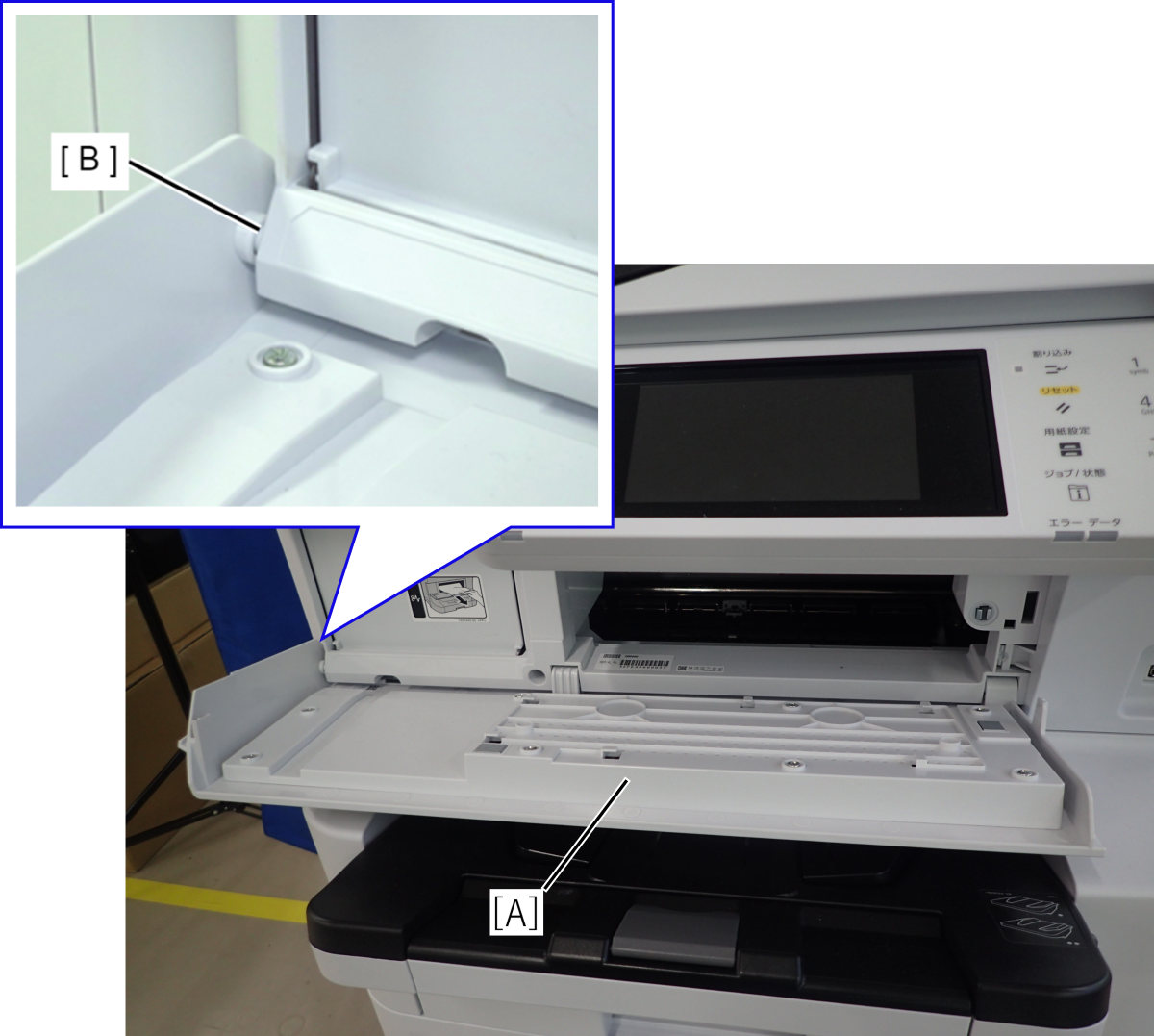

- Disengage the boss (B) of the Front Cover Assy (A).

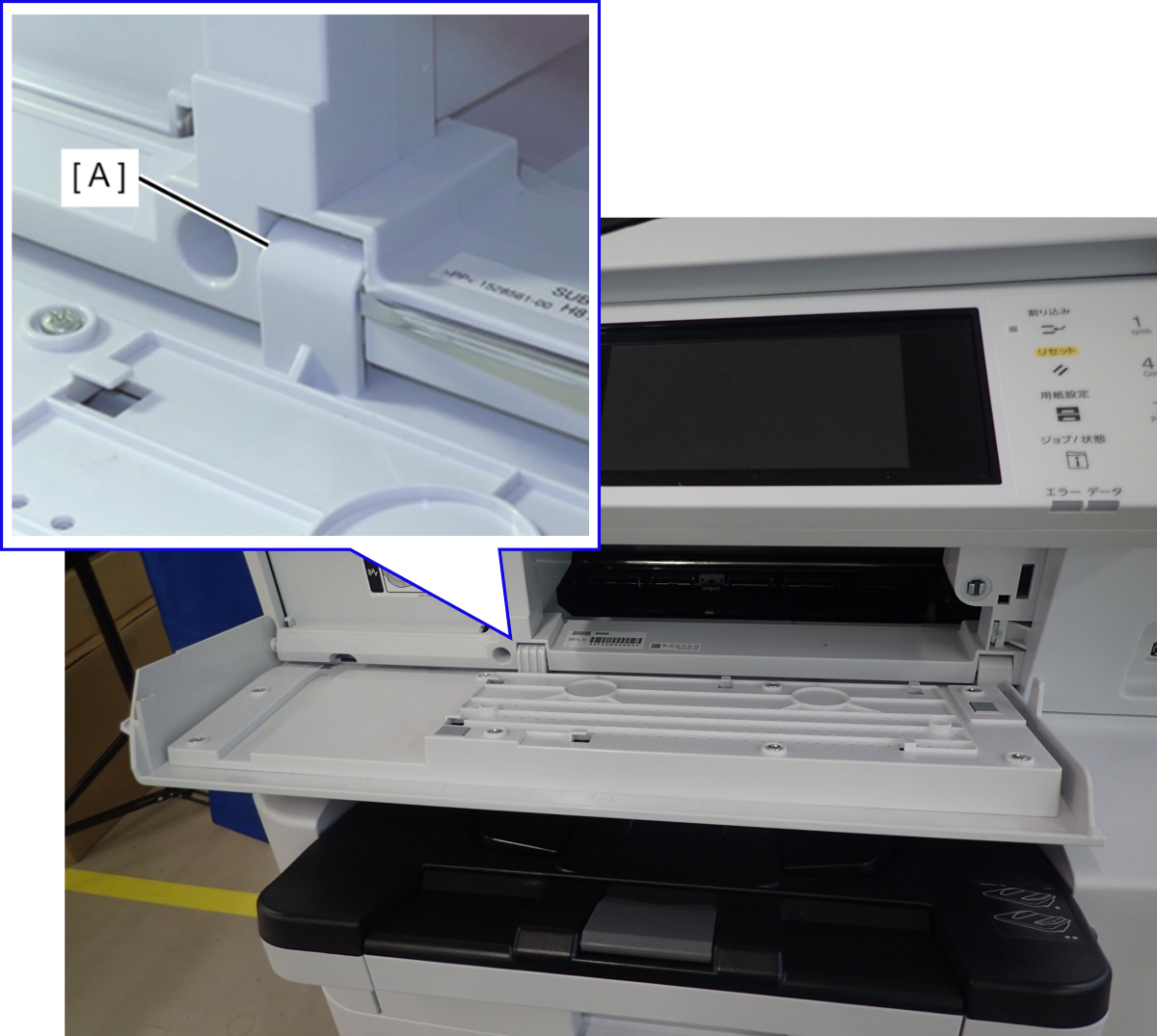

- Disengage the left hook (A) using a flathead screwdriver.

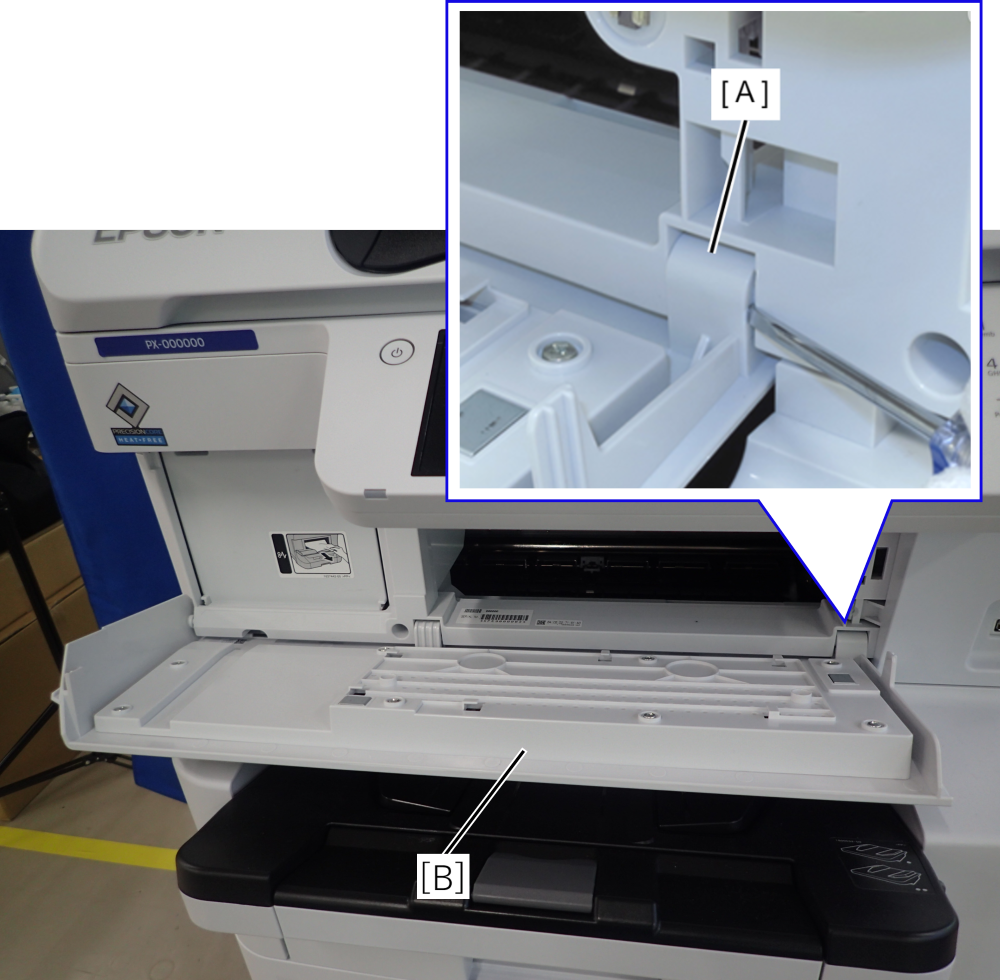

- Disengage the right hook (A), then remove the Front Cover Assy (B).
