Motors

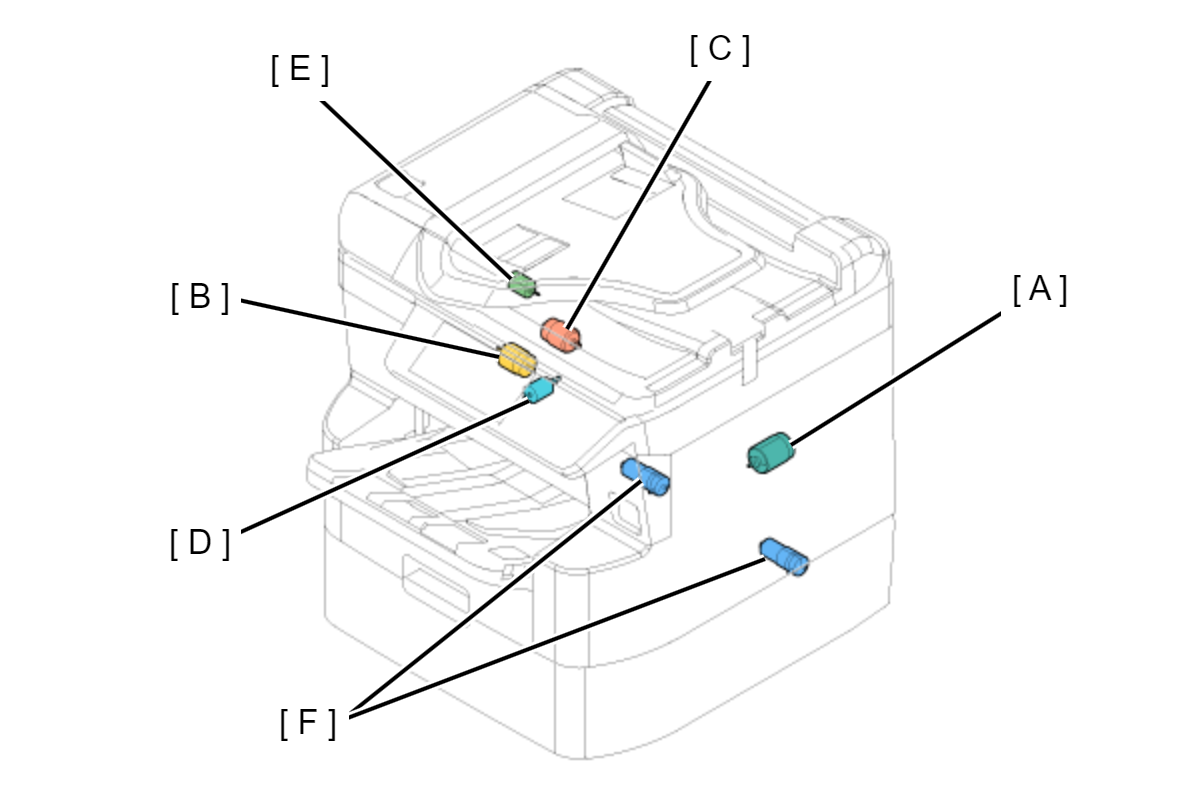

Name Function Type
CR Motor (A) Used for CR operation driving. DC motor (42 VDC ±5%)
PF Motor (B) Used as the paper feeding or paper ejection roller drive. DC motor (42 VDC ±5%)
ASF Motor (C)

Used for driving the feed mechanism.

  • Pickup Roller
  • Rear ASF Unit
  • Auto Duplex Print Assy (Intermediate Roller)
 DC motor (42 VDC ±5%)
Liftup Motor (D) Used for the up/down operation driving of the paper cassettes. DC motor (42 VDC ±5%)
APG Motor (E) Used for driving the PG height change mechanism in accordance with the print settings and paper type. DC motor (42 VDC ±5%)
Supply Pump Motors (F) Used for supplying ink from the ink packs to the inside of the ink supply unit. DC motor (42 VDC ±5%)
