BAND FEED ADJUST (S) [B64]

Paper and Feed Tray
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Paper feed tray: Paper cassette (1) to paper cassette (4) or rear tray
Adjustment pattern

Same as Band Feed Adjust (BAND FEED ADJUST [B55])

Judgment

Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

Adjustment procedure
  1. Start the service support mode. (Service mode startup and operating procedures)
  2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

  3. Select “Band Feed Adjust (S)”.

    Check Point / チェックポイント

    Select and execute the corresponding adjustment item using either procedure below.

    • Selecting by entering the program number

    1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
    2. Press the [#] button and software number key is displayed on LCD. Enter programnumber “64”.
    3. Press the [#] button.

    • Selecting from menu

    1. Select “Simple Adjustment: MENU” from the Adjustment menu.
    2. Select “Band Feed Adjust (S)” from the Simple Adjustment menu.

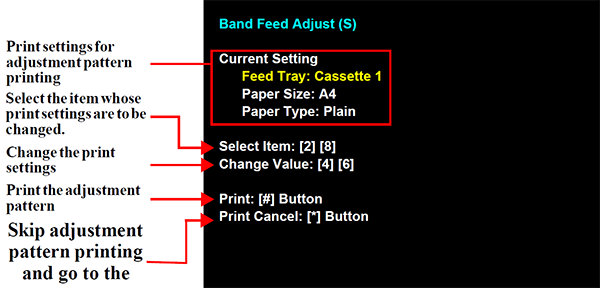

  4. The following screen will be displayed.
  5. Load paper into the paper feed tray.
  6. Press the [#] button to print the adjustment pattern.
  7. Check the adjustment pattern.
  8. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

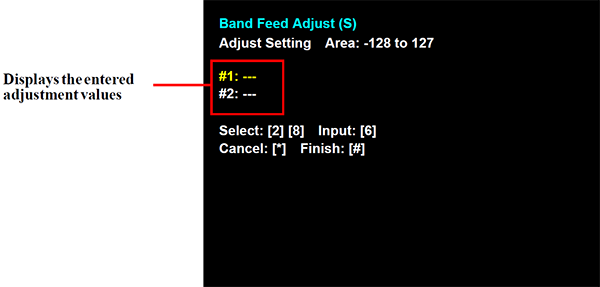

  9. Input a adjustment value.

    Check Point / チェックポイント
    • Operation method is belows.
      • [6] button: Displays the adjustment value input screen
      • [2] button, [8] button: Select the number.
      • [#] button: Finishes adjustment and inputs the adjustment values.
    • In the adjustment value input menu, the software number key is displayed

  10. Check that an adjustment value is entered for all of the adjustment input items and then press the [#] button to end adjustment.

  11. The adjustment end screen appears. Press the [#] button to return to the menu screen.

    Check Point / チェックポイント

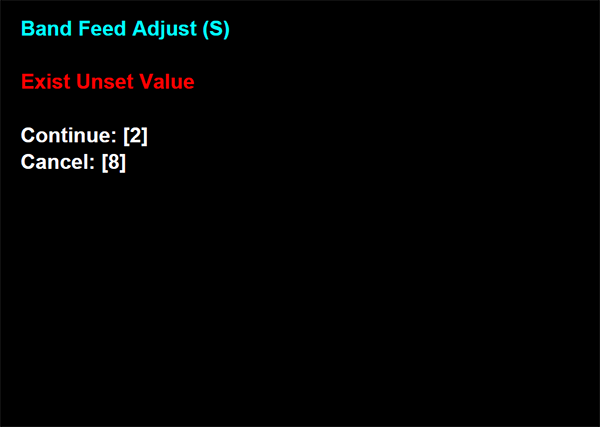

    To end adjustment without entering an adjustment value, press the [#] button in the state without an adjustment value entered in the adjustment input screen to display the following screen. If you press the [8] button in the following screen, the adjustment end screen appears and you can end adjustment.(To continue adjustment, press the [2] button.)
