Checks Before Installation
Install this product at a site that satisfies the following conditions:
- Well-ventilated site
- Site where ventilation ports are not blocked
- Site where an exclusive power outlet can be secured
- Site where paper can be loaded and printed paper can be removed without exerting unnecessary force
- A level site capable of withstanding the following weight and ensuring thefollowing space (For detailed specifications, refer to Product Descriptions.)
Printer main unit only
| Items |
|
| External dimensions |
For storage |
Width |
621 mm |
| Depth |
650 mm |
| Height |
641 mm |
| For printing |
Width |
621 mm |
| Depth |
862 mm |
| Height |
719 mm |
| Weight |
63.4 kg |
Basic model (Printer main unit + one additional cassette)
| Items |
|
| External dimensions |
For storage |
Width |
621 mm |
| Depth |
656 mm |
| Height |
768 mm |
| For printing |
Width |
621 mm |
| Depth |
862 mm |
| Height |
846 mm |
| Weight |
75.0 kg |
Fully set model (Basic model + full options)
| Items |
|
| External dimensions |
For storage |
Width |
772 mm |
| Depth |
797 mm |
| Height |
1058 mm |
| For printing |
Width |
772 mm |
| Depth |
941 mm |
| Height |
1226 mm |
| Weight |
128.8 kg |

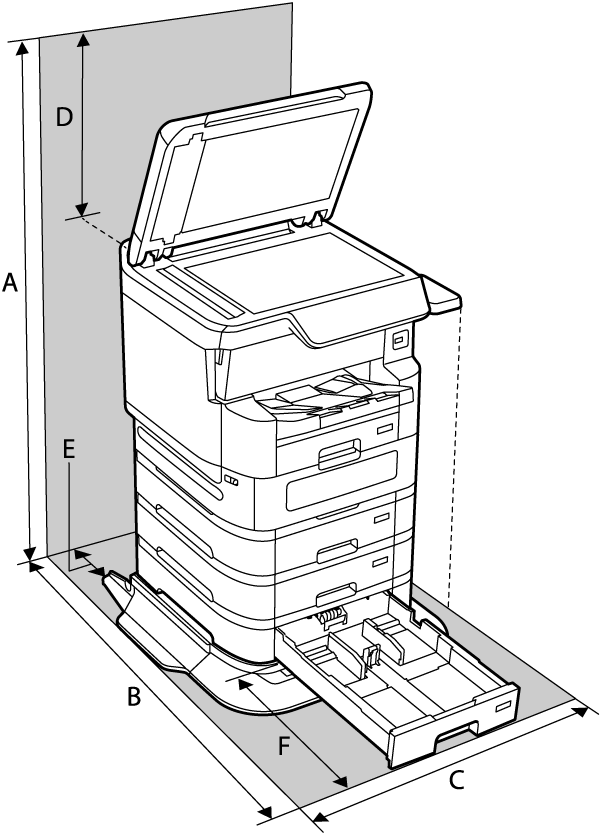

Installation space
| Required space |
|
| A |
1555 mm |
| B |
1324 mm |
| C |
772 mm |
| D |
523 mm |
| E |
100mm |
| F |
529 mm |
