Parameter changing procedure

Start the “FAX Maintenance Mode”.
1. Press and hold down the power button while pressing the [#] button from the power-off state until a message appears on the panel LCD.
2. Input the ID Number.
  Input the ID Number by the following operation method.
  Operation method
  Number input (move in ascending order) : [2] button
  Number input (move in descending order) : [8] button
  • Input digit shift : [6] button
  • Execute : [#] button

  Check Point / チェックポイント

  Enter “91170“ when starting the FAX Maintenance Mode.
3. Push the [#]button after input the ID number, and confirm that following screen is displayed on panel LCD.
4. Push the [#]button on confirmation screen, and confirm that “Authentication Mode” is started.

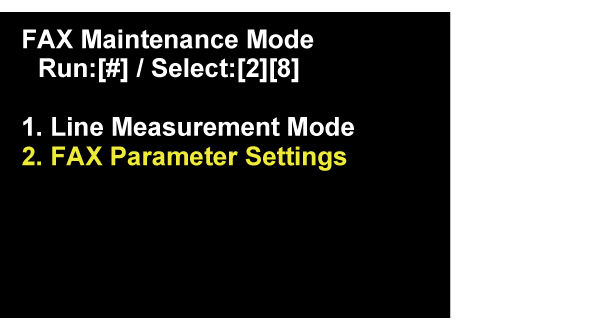

5. Select the “FAX Maintenance Mode”, and push the [#] button.
“Start FAX Parameter” Settings.
1. Select the “FAX Parameter Setting”, and push the [#] button.

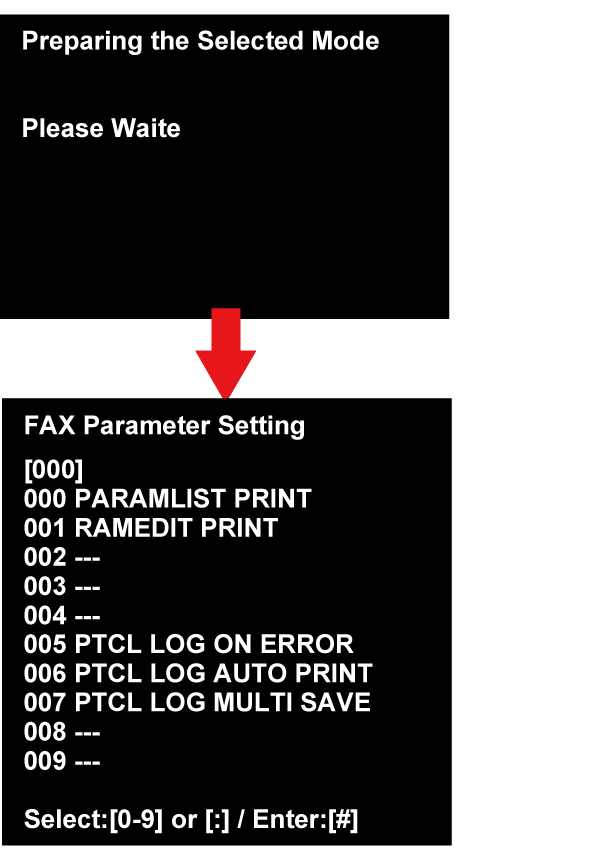

1. Following screen is displayed on Panel LCD.Waiting until the screen is changed. (About 1 minute)

Select the changing item, and enter the setting number.

Enter the number of changing item (3 digit), and push the [#] button.

Check Point / チェックポイント

Where "-" is displayed to the right of the displayed 3 digit number, there is no parameter assignment.
There are the following two types of setting change items, and the changing method is different.

•Parameter of selection type :Select Setting value
•Parameter of input type : Enter Setting value
Regarding detail of changing method, refer to the next pages.

Example of setting change in selection type parameter
