# Setting wireless LAN

• How to set wireless LAN

1. Switching to the access point settings screen

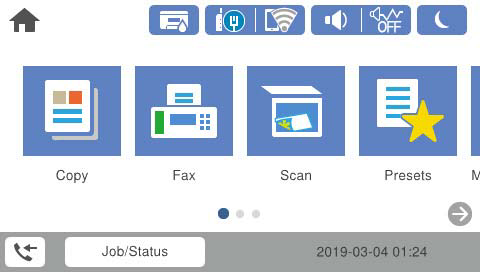

   1. Displays the Home screen on the Main Unit panel.

   2. Tap the network icon.

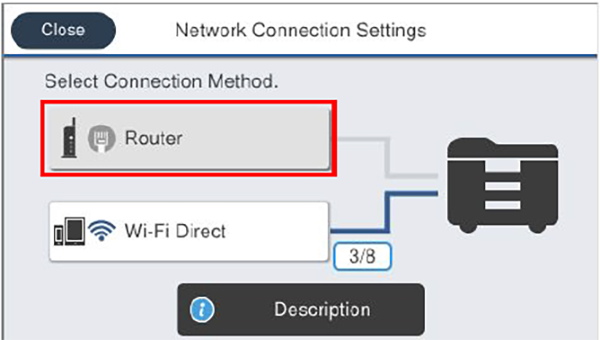

   3. Tap [Router].

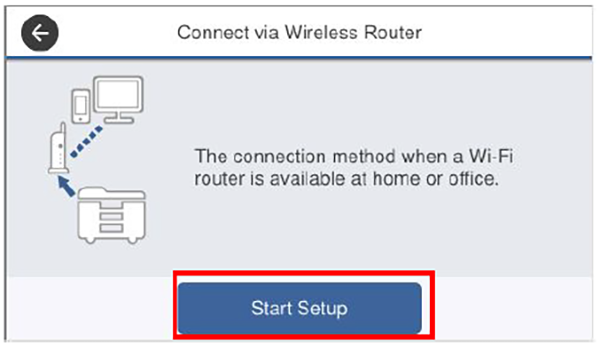

   4. Tap [Start Setup].

2. Setting SSID

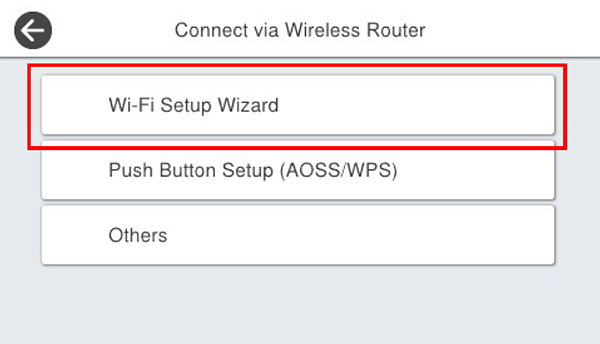

   1. Tap [Wi-Fi Setup Wizard].

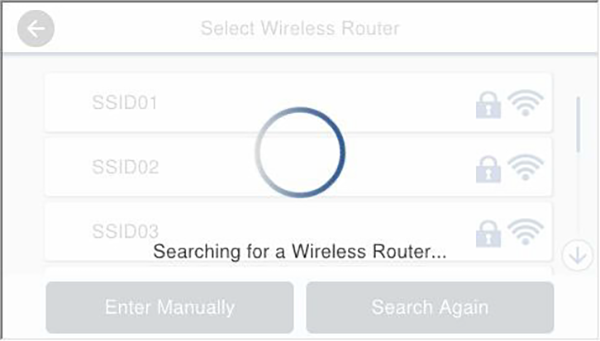

   2. Wait until the access point is found.

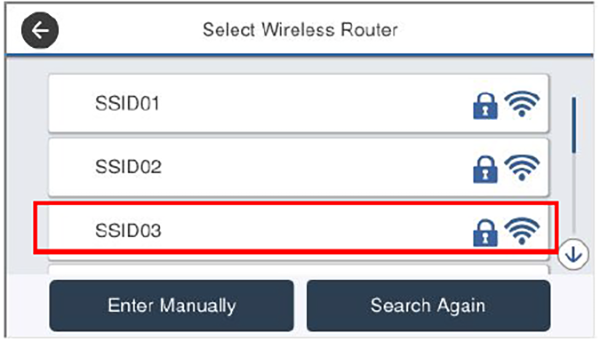

   3. Select an SSID.

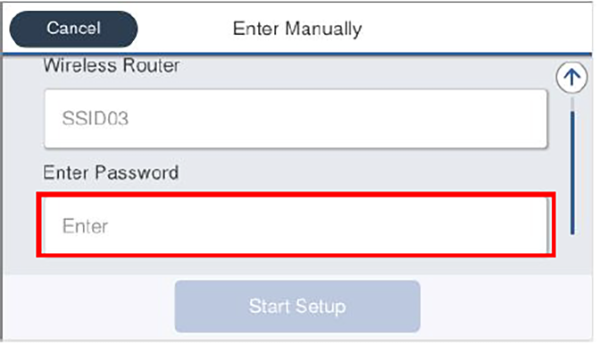

   4. Tap [Enter] of Enter password.

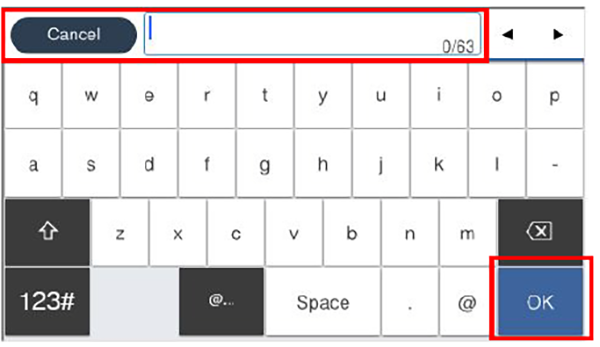

   5. Enter a password and tap [OK].

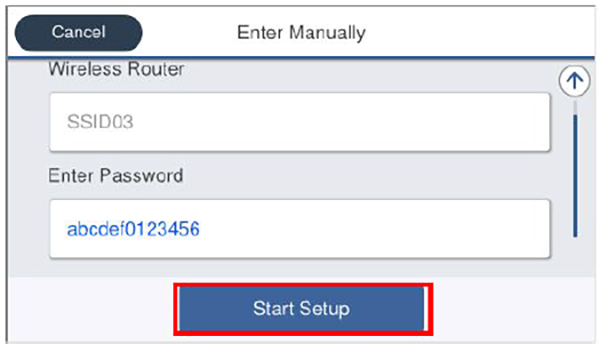

   6. Tap [Start Setup].

   7. Wait until the settings are completed.

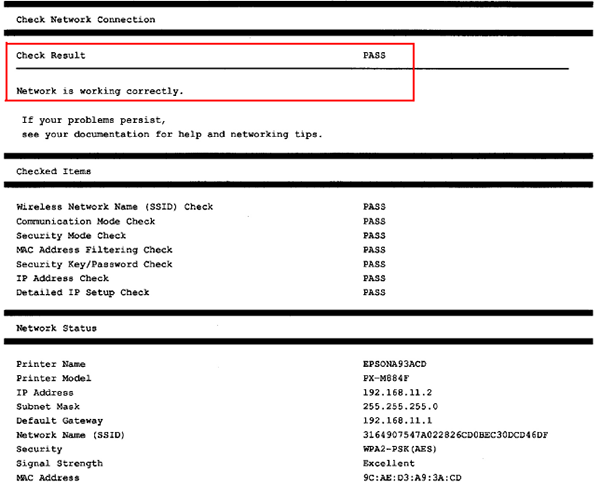

   8. Print the network connection diagnosis report, and check that the diagnosis result is [OK].
