Right ADF Cover

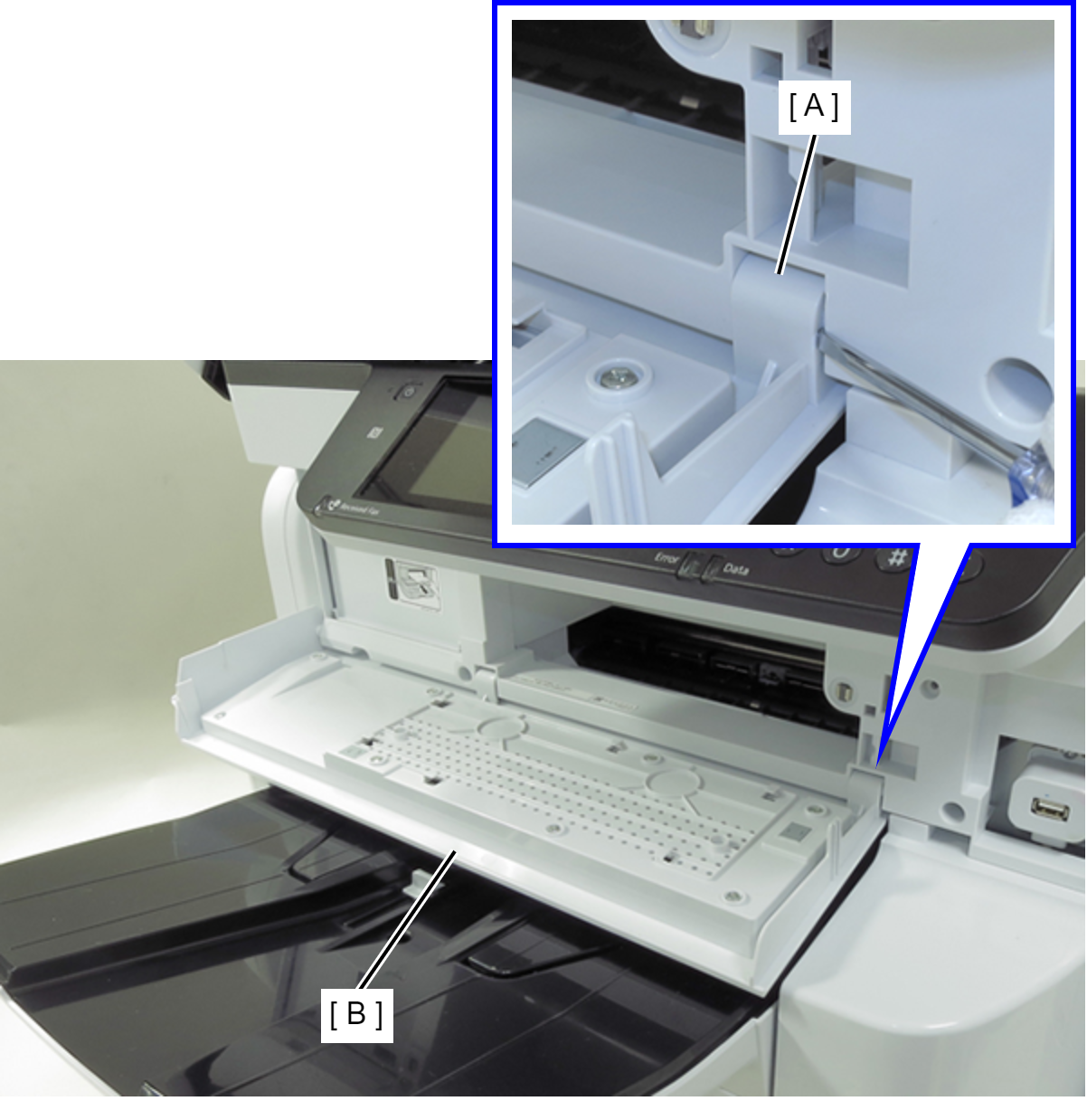

  1. Disengage the two dowels, then remove the ADF Cover Assy (A).
  2. Disengage the two dowels, then remove the ASF Cover (A).
  3. Remove the two Screw Cover Seals (A).
  4. Remove the three screws.

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  5. Disengage the three hooks, and remove the Rear ADF Cover Assy (A).
  6. Remove the two Screw Cover Seals (A).
  7. Remove the three screws, then remove the Right ADF Cover Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C

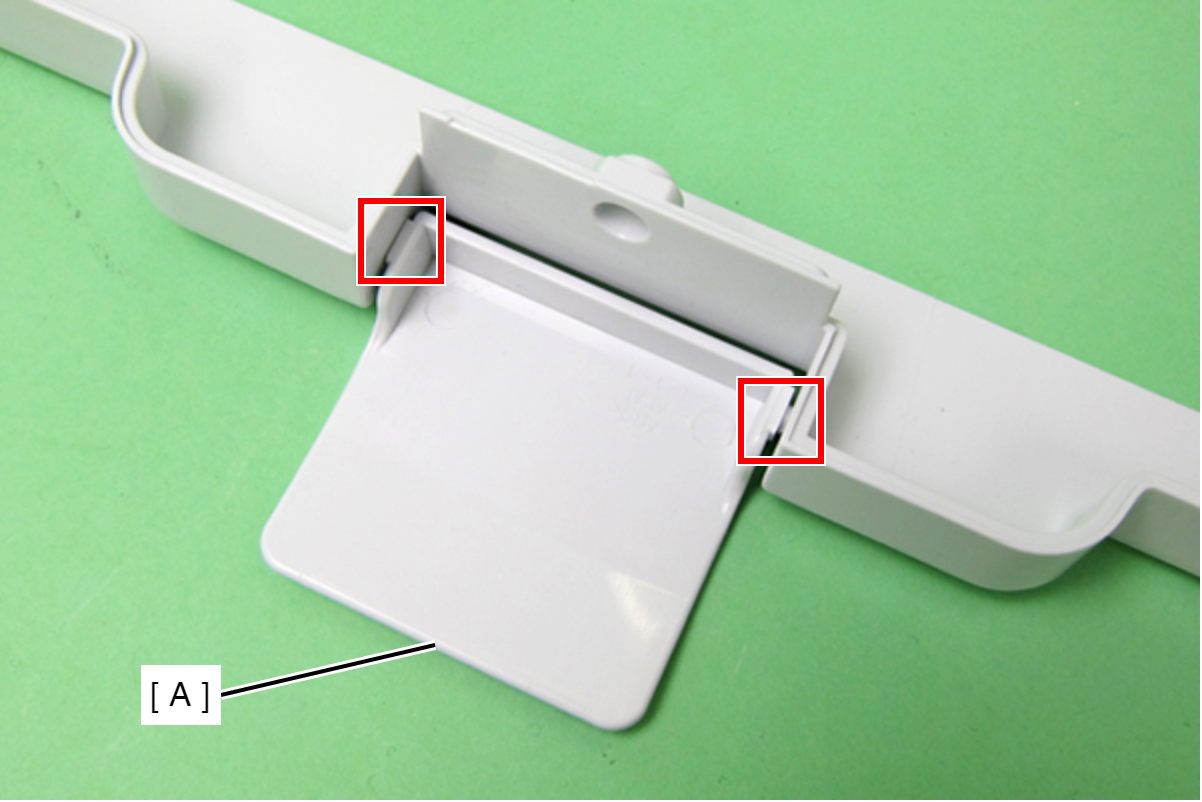

  8. Disengage the two dowels, then remove the Document Stopper (A).

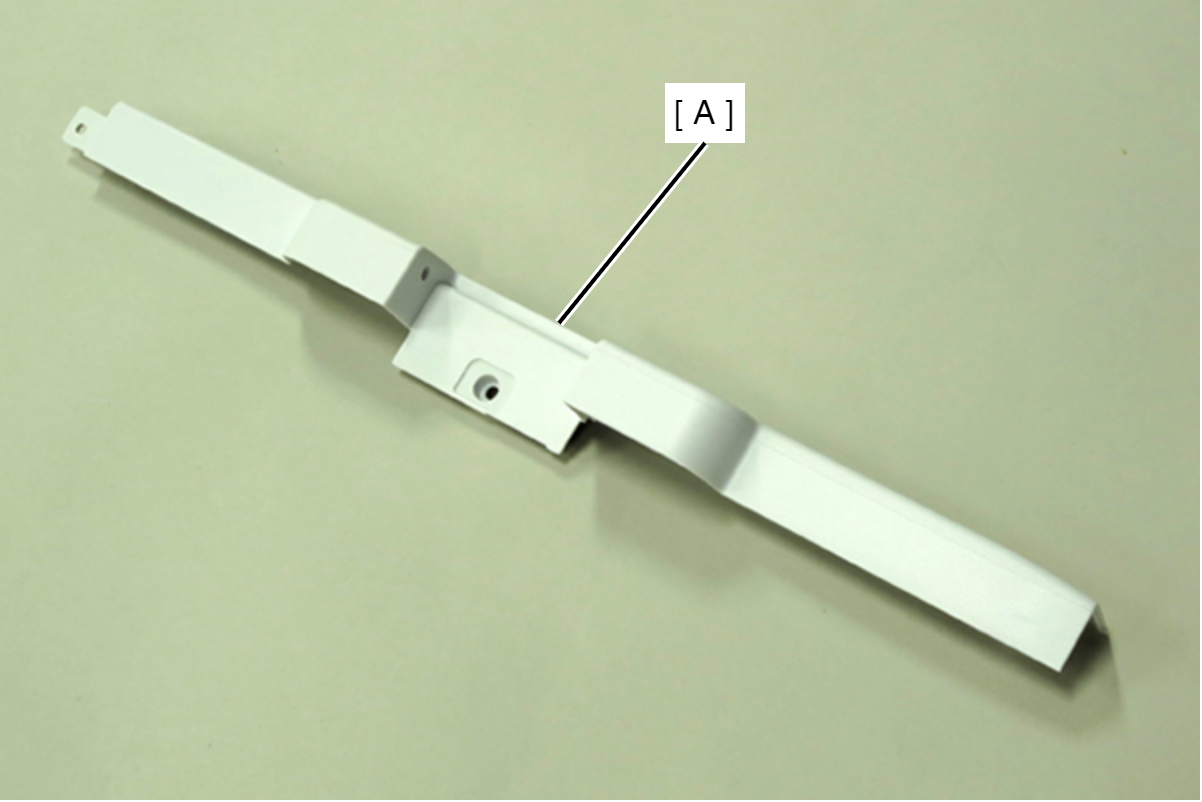

  9. Remove the Right ADF Cover (A).
