# Pick-up Roller

1. Open the Duplex Print Cover (A).




2. Remove the Duplex Print Assy (A).

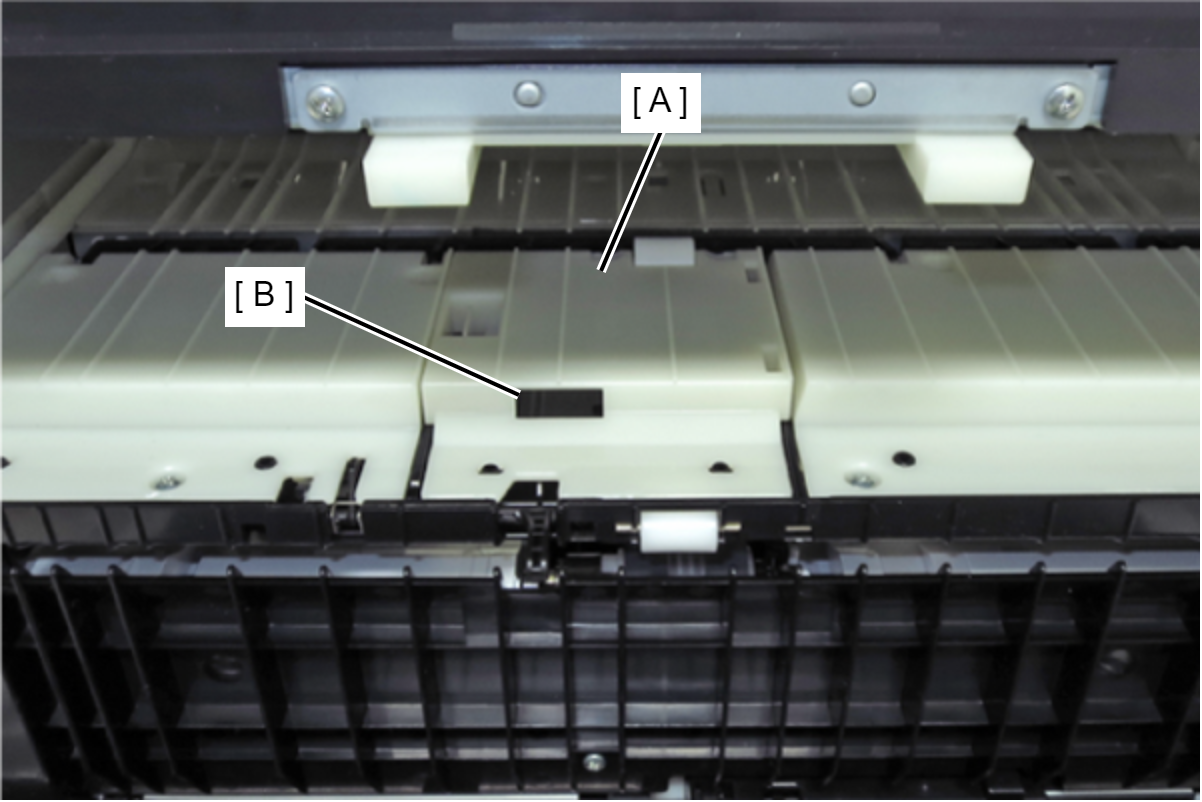

3. Lift the Middle Duplex Print Guide (A) by hooking a finger on the angle hole (B), and remove it.

4. Remove the Cassette Assy (A).

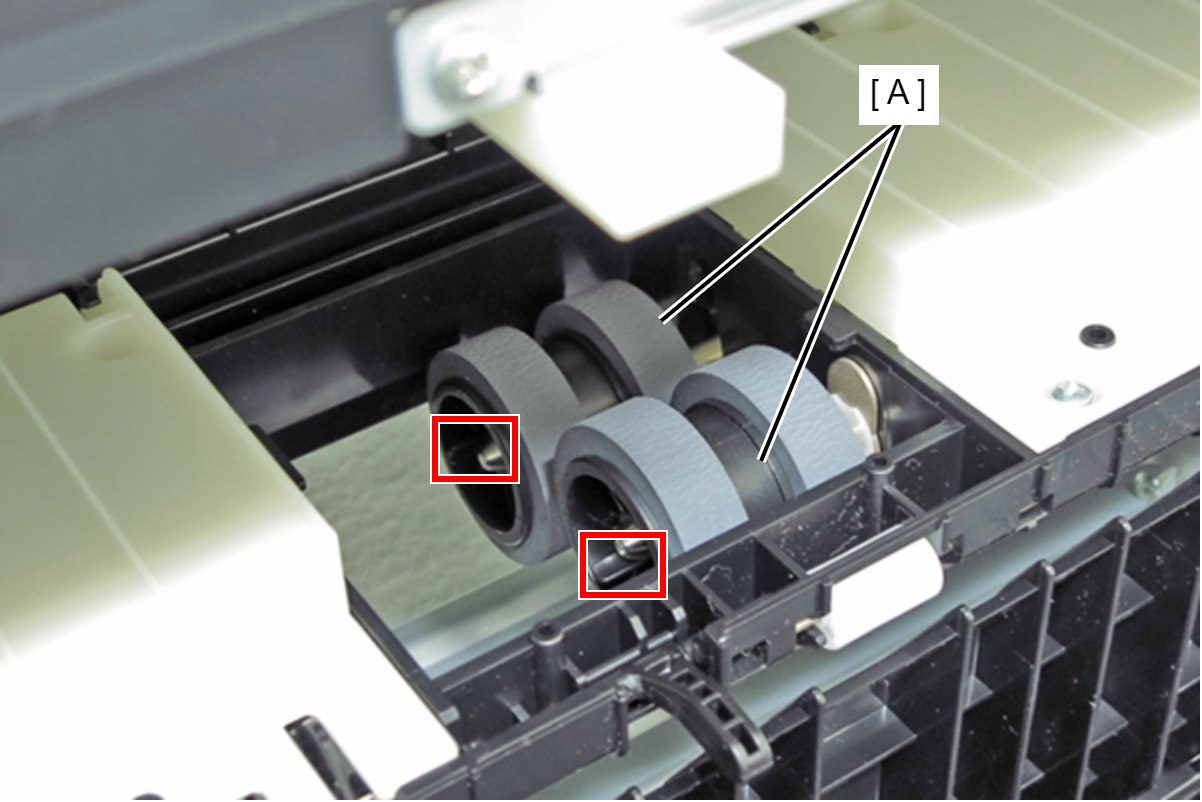

5. Disengage the hooks, then remove the two Pickup Rollers (A).
