# PF Timing Belt　

1. Remove one screw.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Slide the Left SC Cover (A) while pushing the dent (B) of Left SC Cover, and remove it.

3. Remove the four screws fastening the Left Housing (A).


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
4. Remove the two dowels.

5. Remove the rib on the front side while lifting up the Left Housing (A).

6. Remove the rib on the back side while lifting up the Left Housing (A), release the hook (B) and then remove the Left Housing (A).

7. Remove the screw, then remove the Left PG Cam Screw Holder (A) with the screw.


   • : C.C.SCREW-3x6-F.ZN-3C
8. Remove the screw, then remove the Anti Static Brush Plate (A).

   • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
9. Disconnect the FFC (B) from the PF Encoder Assy (A).

10. Remove the screw, then remove the PF Encoder Assy (A).


    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C

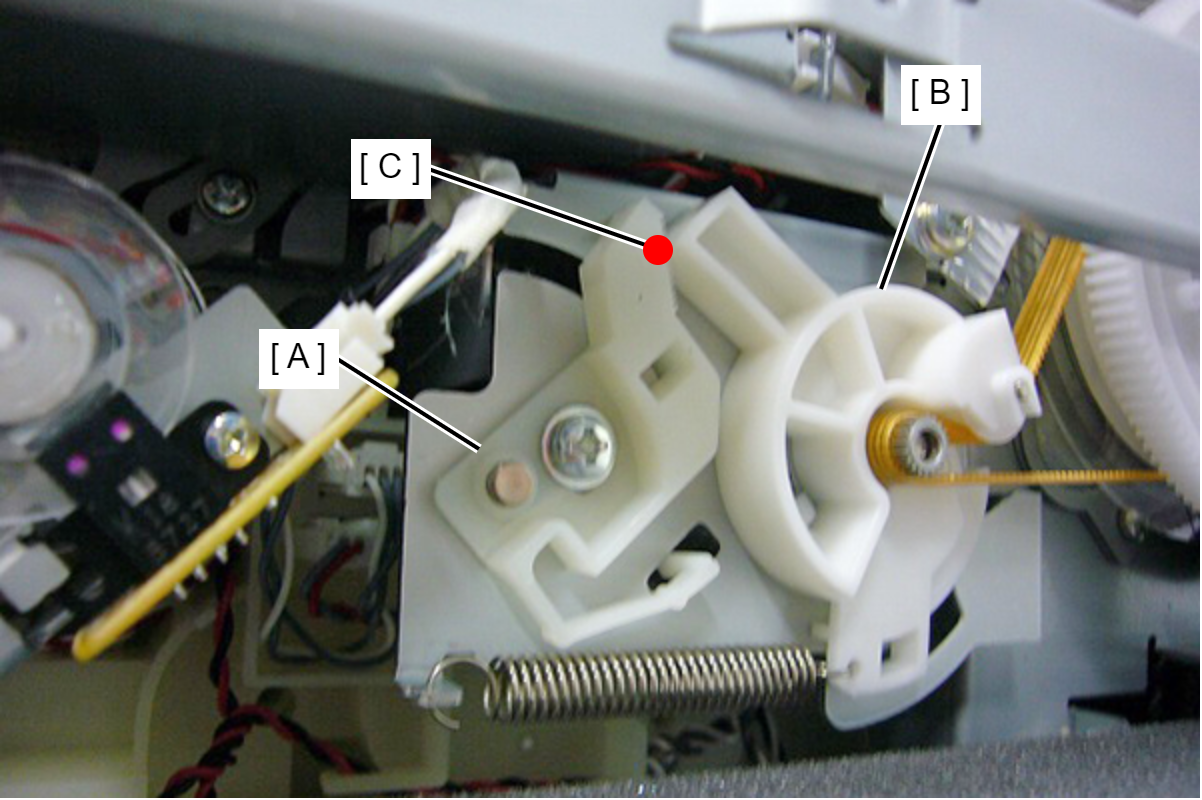

11. The PF Belt Tension Stopper (A) is in contact with the PF Drive Pulley Holder (B). Put a mark (C) on the contact point.

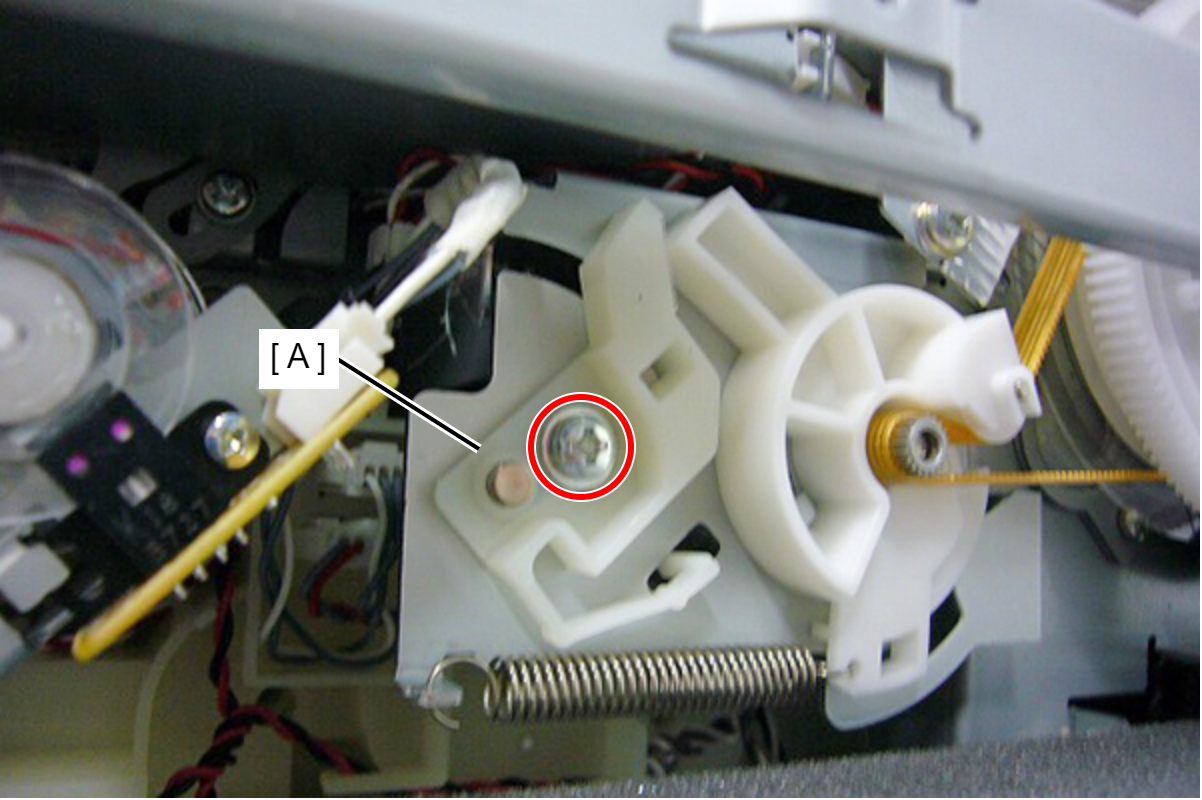

12. Loosen the screw that secures the PF Belt Tension Stopper (A).

    • : C.B.S-TITE.P4.SCREW-3x8-F.ZN-3C

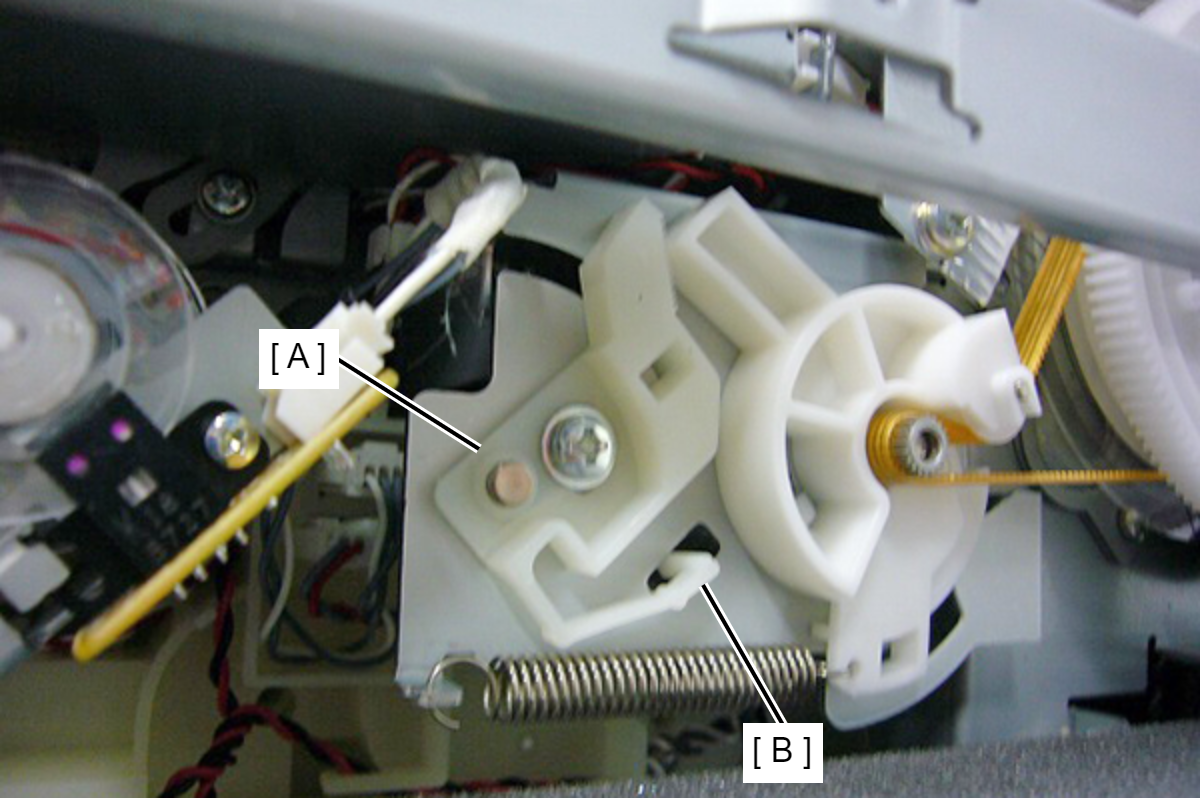

13. Release the leg (B) of the PF Belt Tension Stopper (A) from the frame, then slide the PF Belt Tension Stopper rearward to remove it.

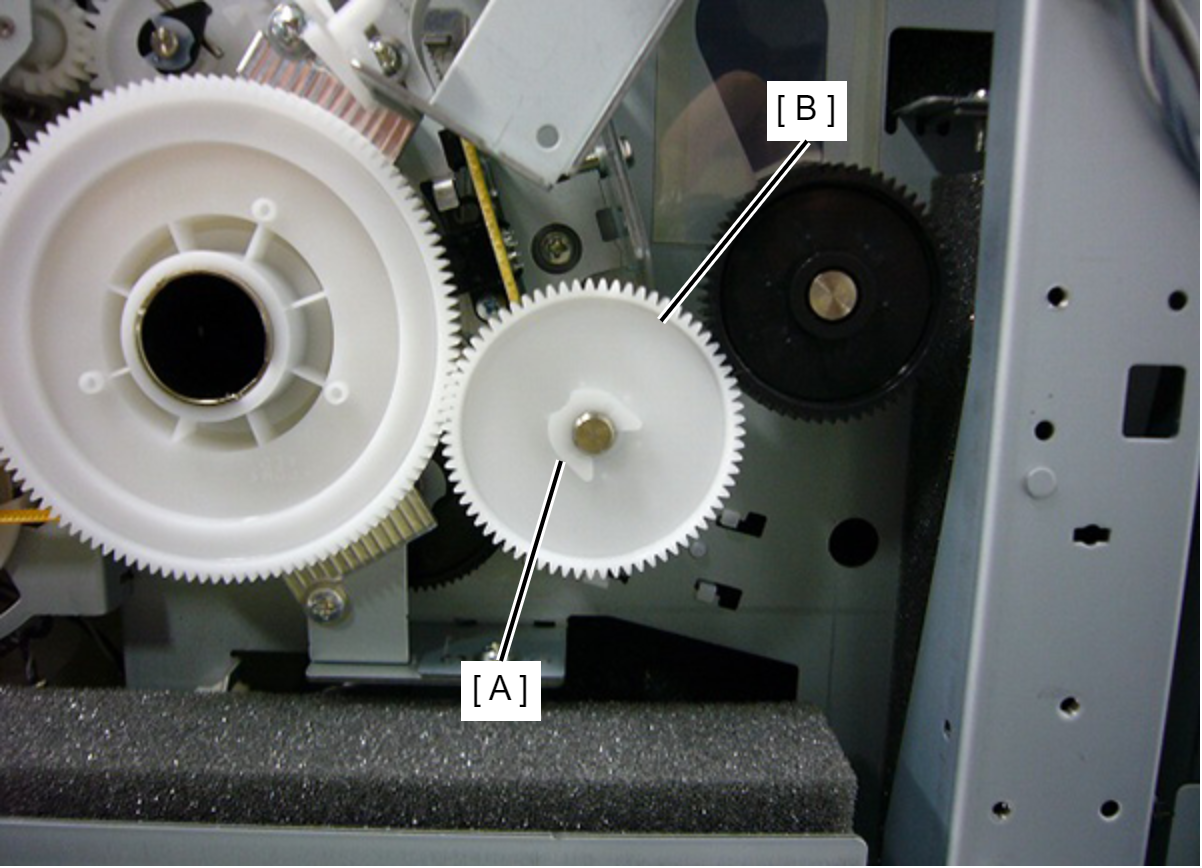

14. Remove the E-ring (A), then remove the Spur Gear (B).

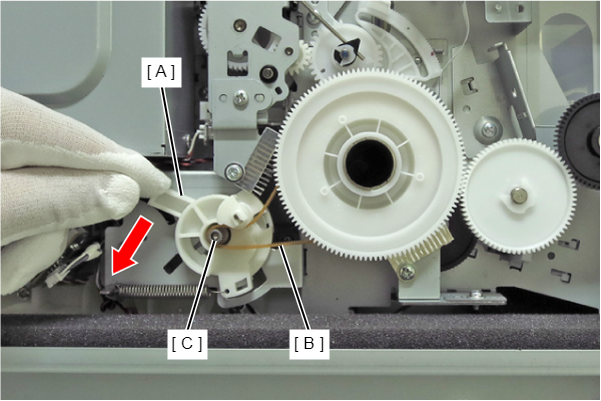

15. Press the PF Belt Tension Lever (A) downward to loosen the PF Timing Belt (B), then release the belt from the pinion gear (C) of the PF Motor.

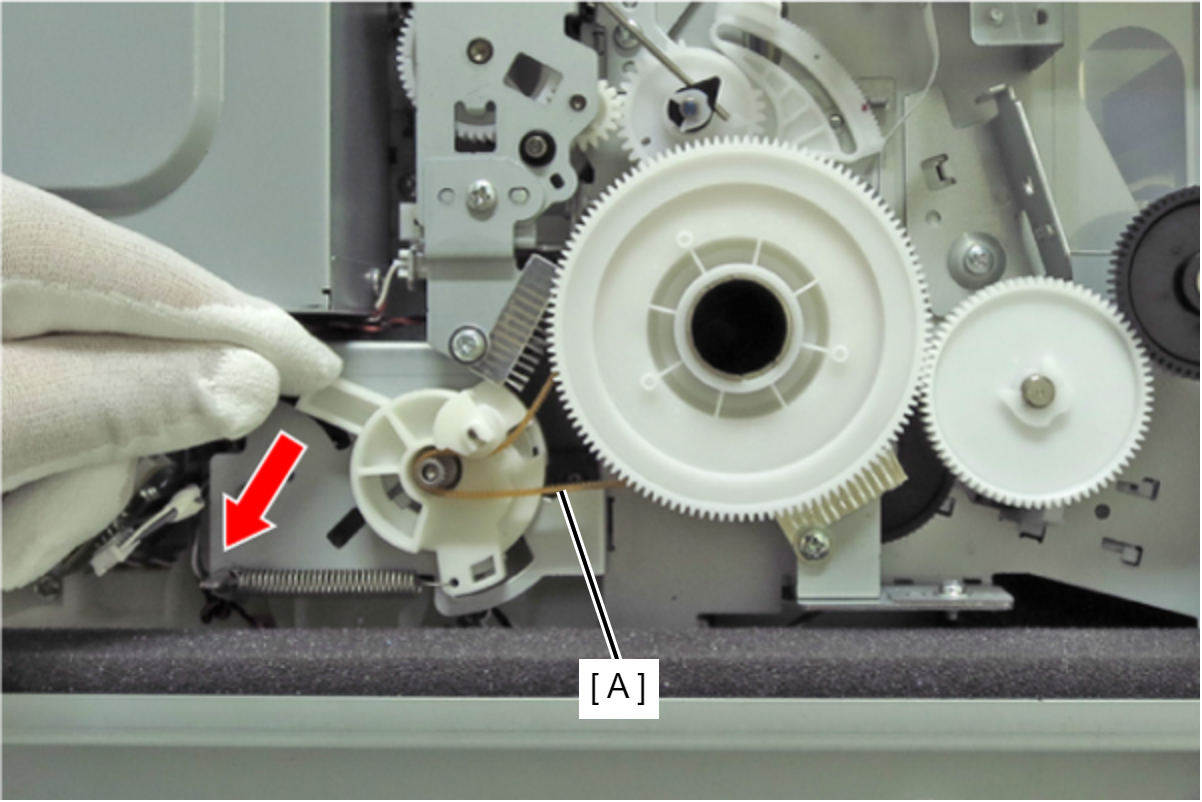

16. Remove the PF Timing Belt (A).
