Housing

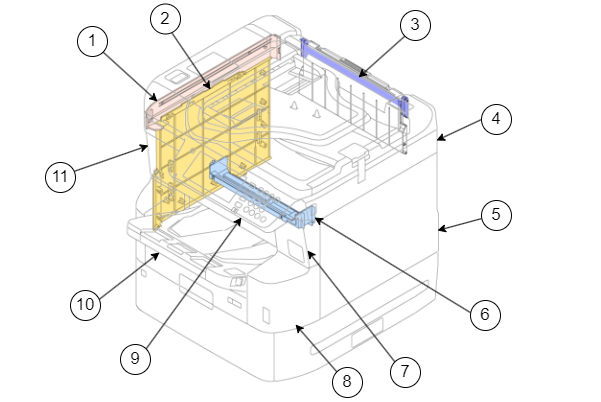

| No. | Name |
|---|---|
| 1 | Left SC Cover |
| 2 | Housing Left |
| 3 | Paper Guide Support |
| 4 | Right SC Cover |
| 5 | Housing Right |
| 6 | Upper Middle Housing |
| 7 | Front Right Cover |
| 8 | Front Right Housing |
| 9 | Panel Unit |
| 10 | Stacker Assy |
| 11 | Front Cover Assy |

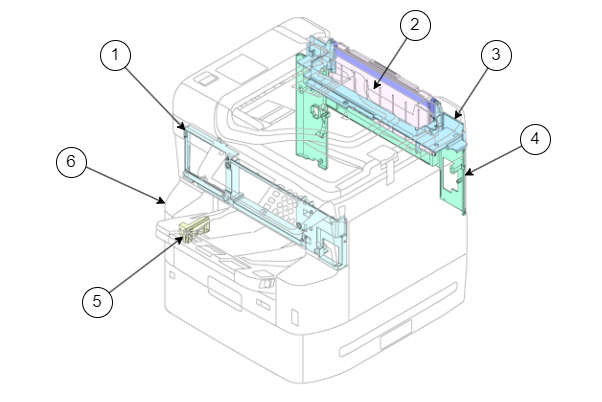

| No. | Name |
|---|---|
| 1 | Front Housing |
| 2 | Paper Guide Assy |
| 3 | Upper Rear Housing |
| 4 | Rear Case Assy |
| 5 | Cassette Papersize Detector Assy |
| 6 | Front Left Housing |
