# ADF Pick Up Roller Assy

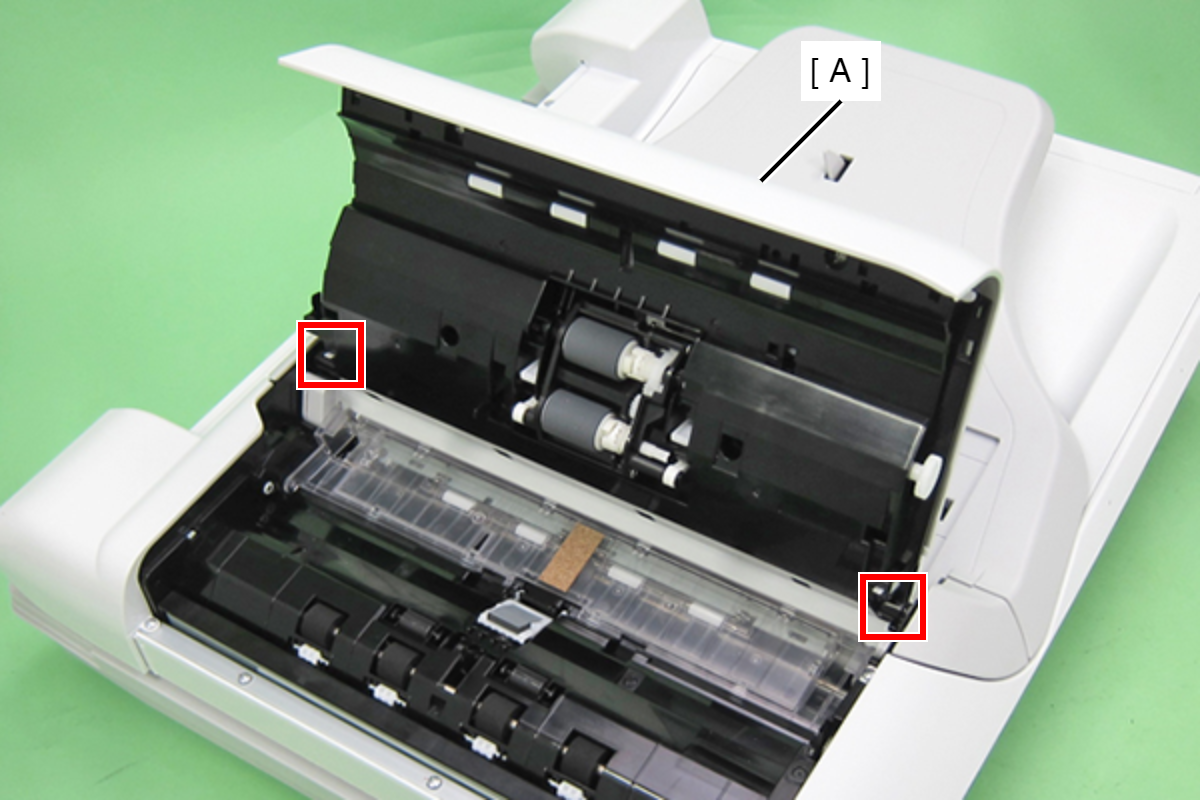

1. Disengage the two dowels, then remove the ADF Cover Assy (A).

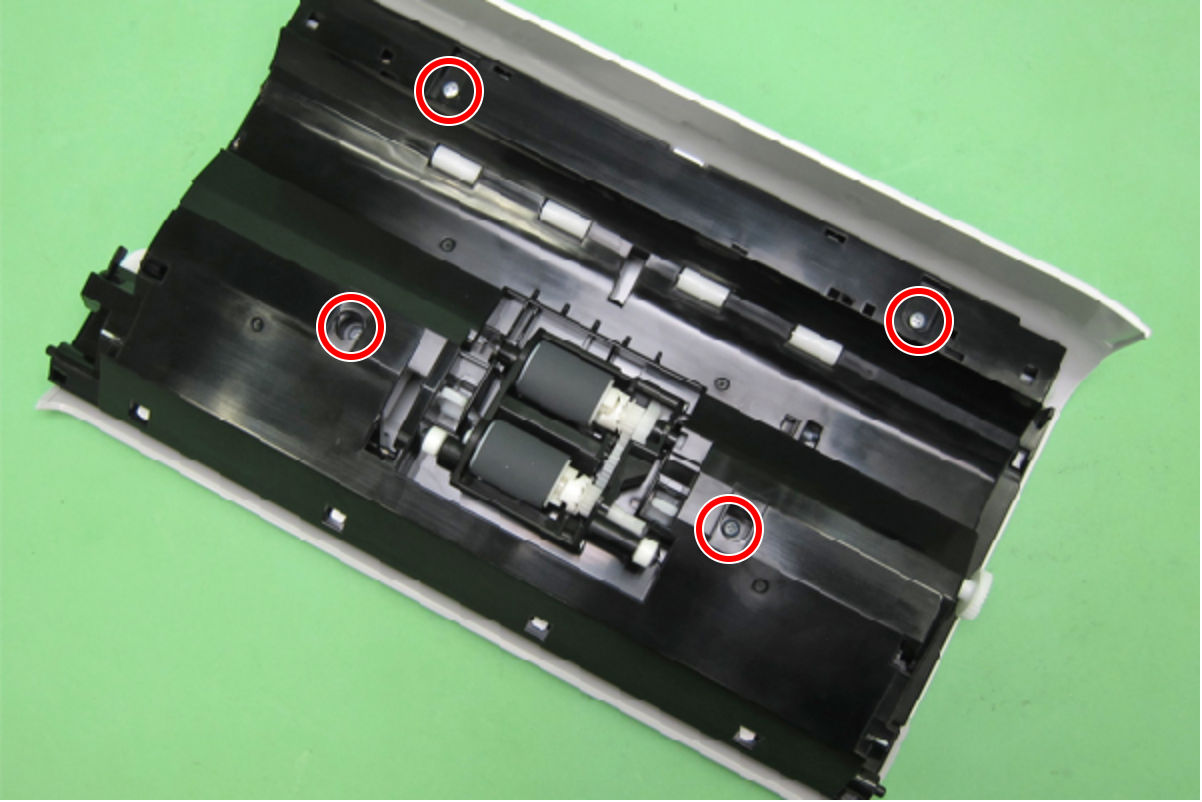

2. Remove the four screws.


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

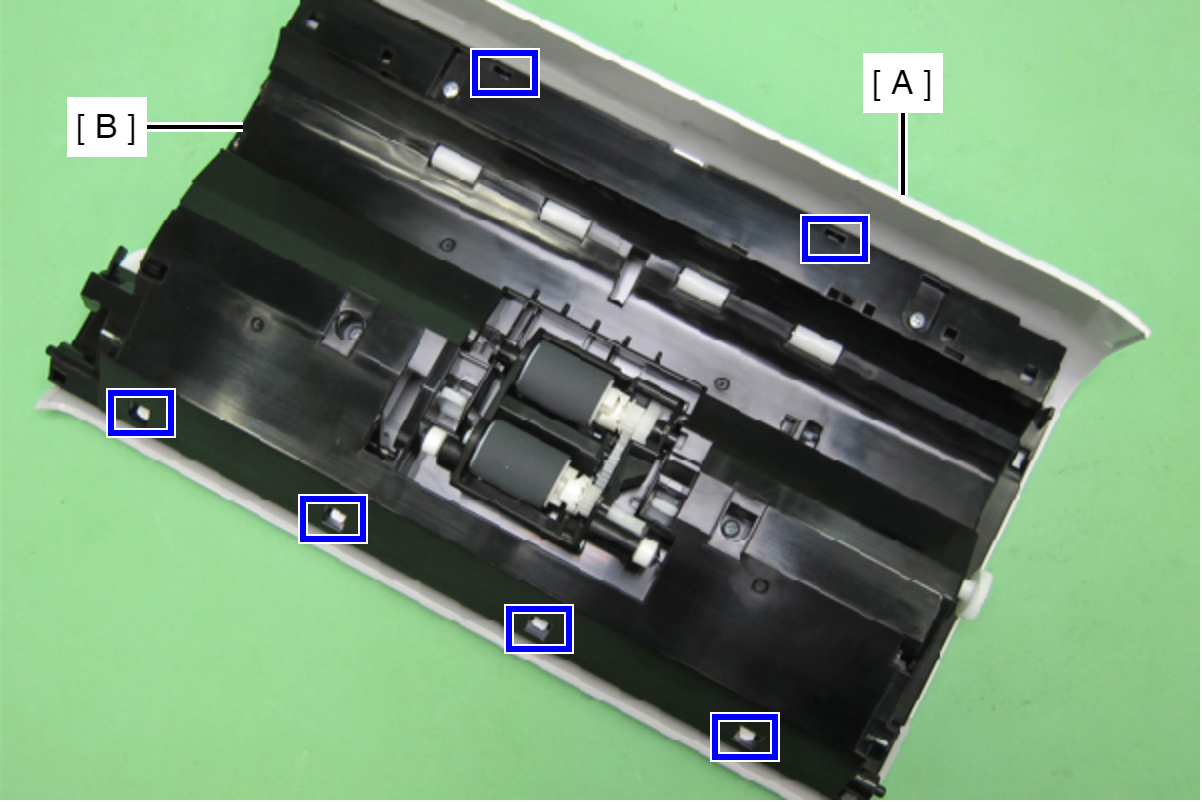

3. Remove the ADF Pick Up Roller Assy (B) from the six hooks of the ADF housing upper (A).

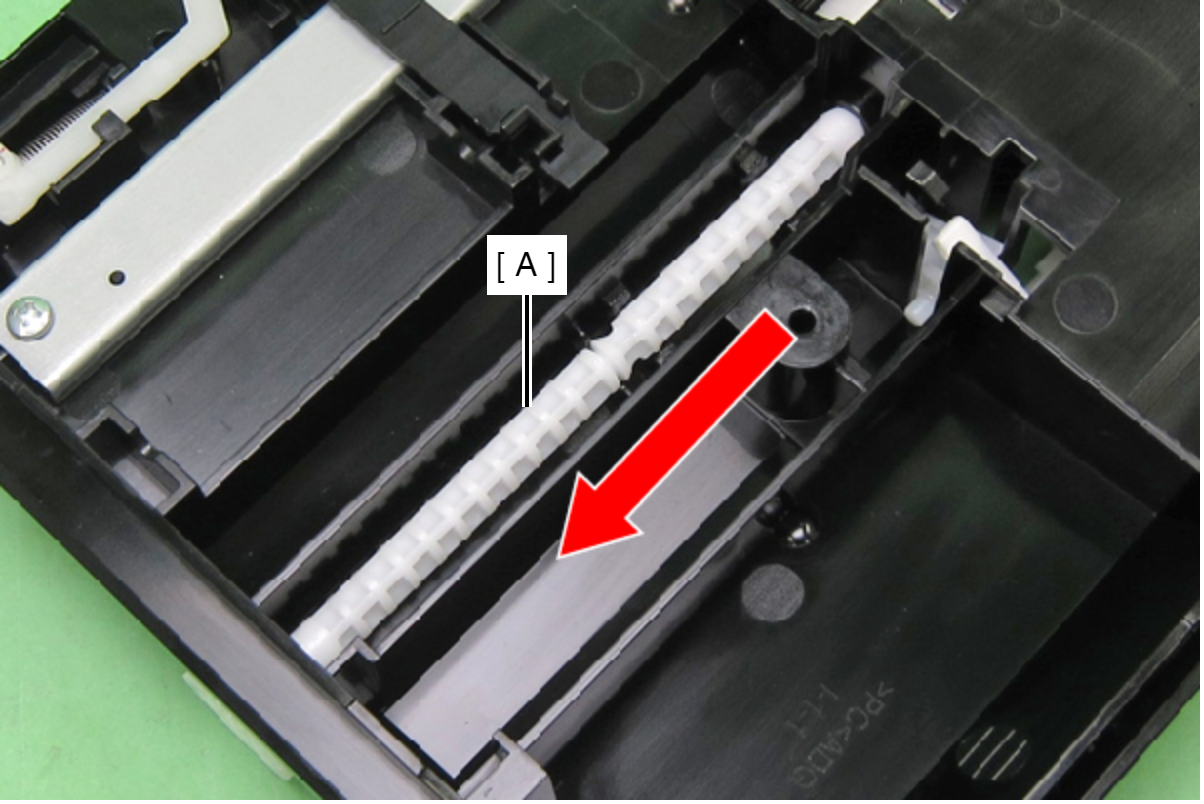

4. Extract the LD Roller (A) in the direction of the arrow.



   Assembly / 組み立て

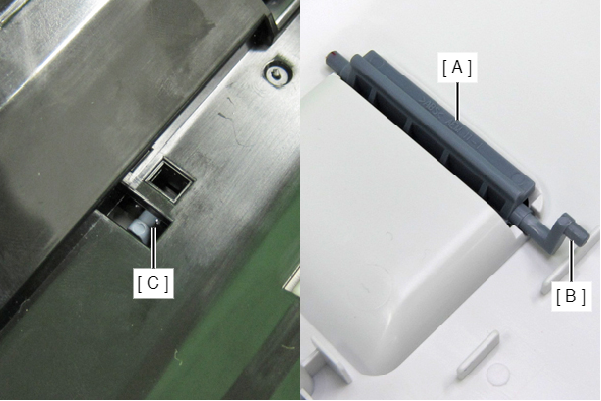

   Set the shaft (B) of the ADF cover open lever (A) in the bearing (C). Confirm the behavior of the ADF Cover Open Lever after installing it.

5. Remove the Extension Spring (A) from the two hooks.

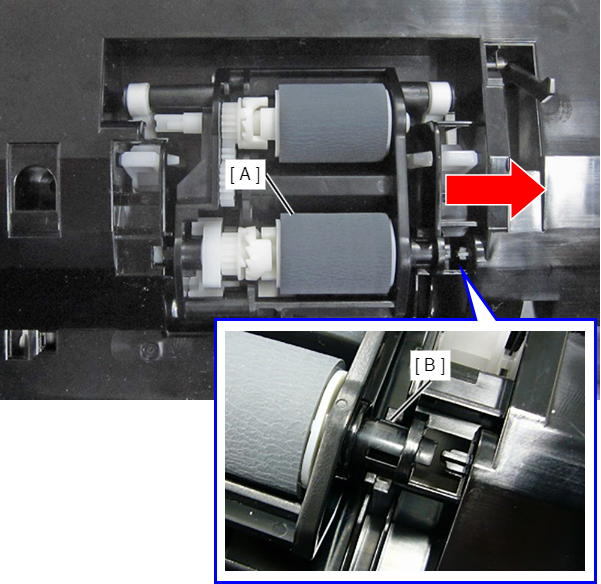

6. Slide the ADF Pick Up Roller Assy (A) to direction of arrow while pushing down the stopper (B), then release the hook.

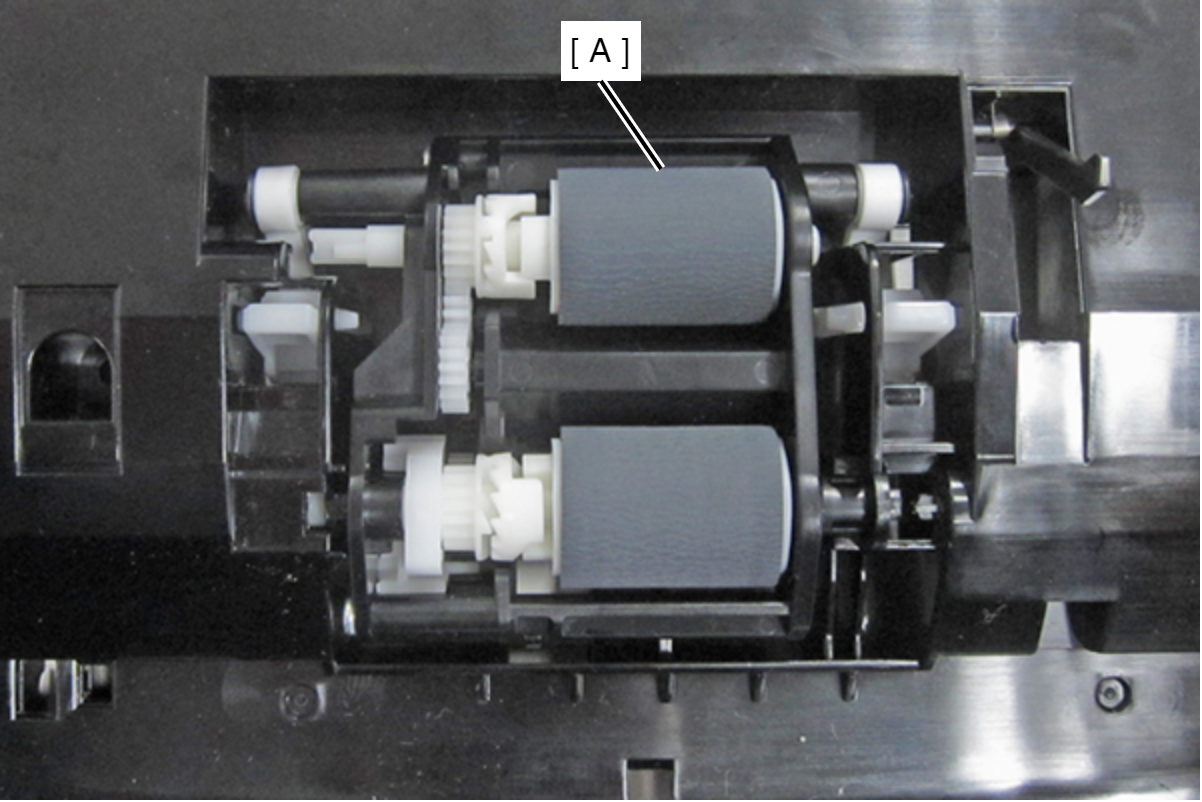

7. Remove the ADF Pick Up Roller Assy (A).
