Installing the Leak Check Jig

Types of Ink Leak Measurement Jig

Name EPSON Part Code Photo Remarks

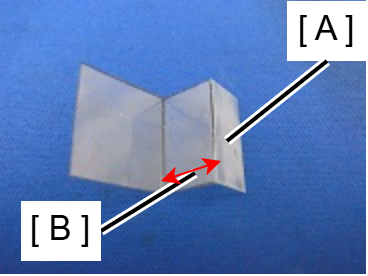

LEAK TESTER SHEET FRONT 1684353

  • A: Cloudy surface
  • B: 10mm

Check Point / チェックポイント

In this product, Ink Leak Check is necessary to prevent the ink leakage due to assembly mistake. Therefore, make sure to install the ink leak measurement jig (A) when installing the Ink Tube to Printhead.

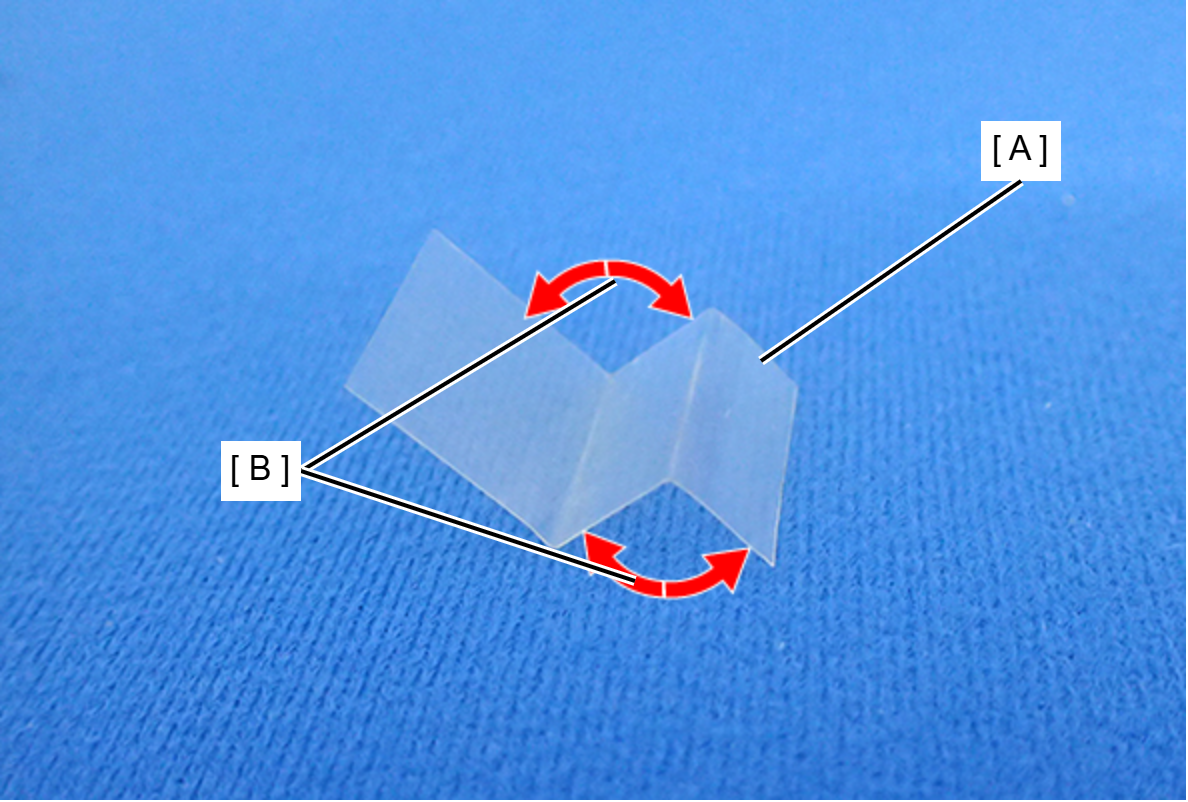

  • Before using the Leak Check Jig, push the ink leak measurement jig along the folds until the fold angle become 90 (B) degrees.

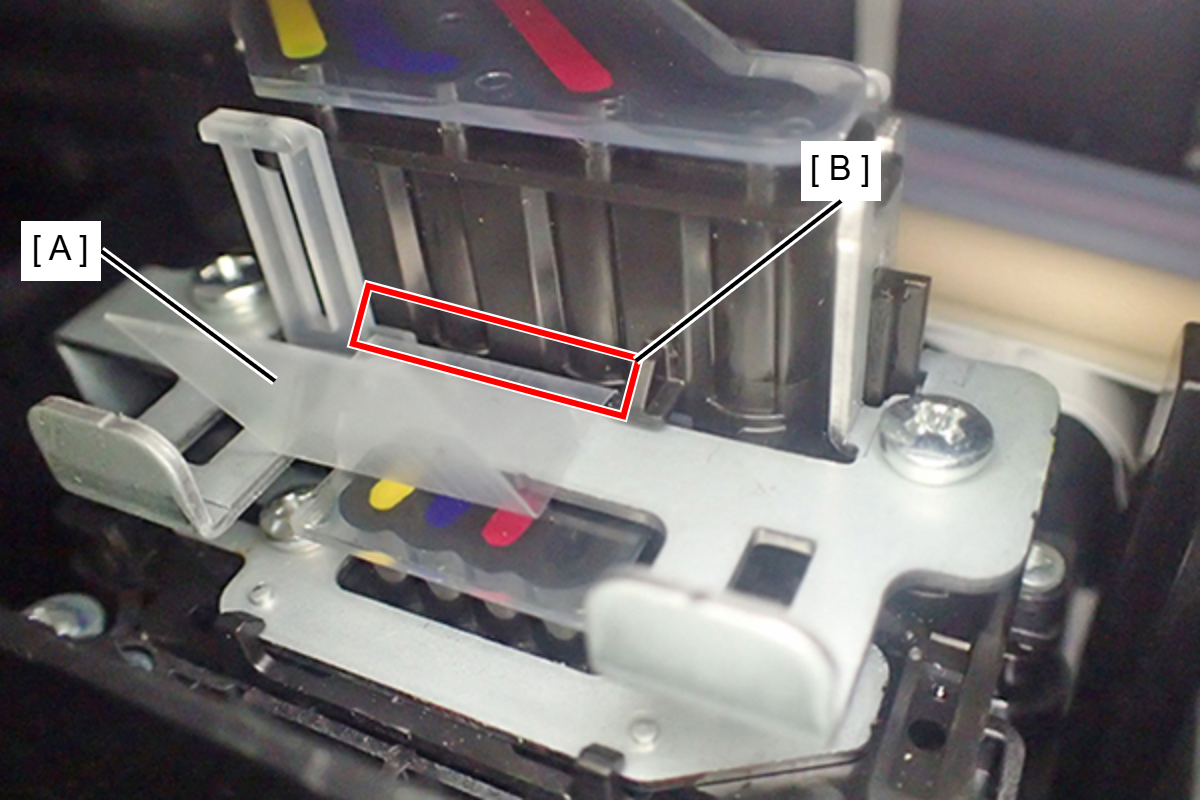

  1. Set the ink leak measurement jig (A) to the ink tube connector (B) of the Print Head.

    Caution / 注意

    The smoked face of ink leak measurement jig is put toward the upside.
