# NOZZLE CHECK PATTERN [B32]

#Paper and Feed Tray

• Paper size: A4/Letter
• Paper type: Plain paper
• Paper feed tray: Paper cassette (C1) to paper cassette (C2), rear tray

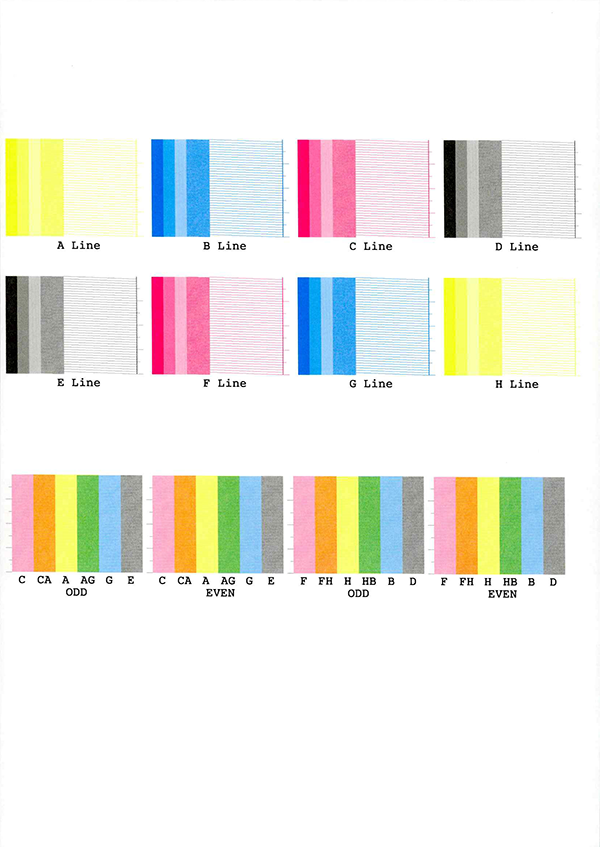

#Adjustment pattern

#Judgment

Visually check the check patterns to confirm that there are no nozzles missing

#Adjustment procedure

1. Start the service support mode. (Service mode startup and operating procedures)
2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

3. Select “Nozzle Check Pattern”.

   Check Point / チェックポイント

   Select and execute the corresponding adjustment item using either procedure below.

   • Selecting by entering the program number

   1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
   2. Press the [#] button and software number key is displayed on LCD. Enter program number “32”.
   3. Press the [#] button.

   • Selecting from menu

   1. Select “Individual Adjustment: MENU” from the Adjustment menu.
   2. Select “Printing Check: MENU” from the Individual Adjustment menu.
   3. Select “Nozzle Check Pattern” from the Printing Check menu.

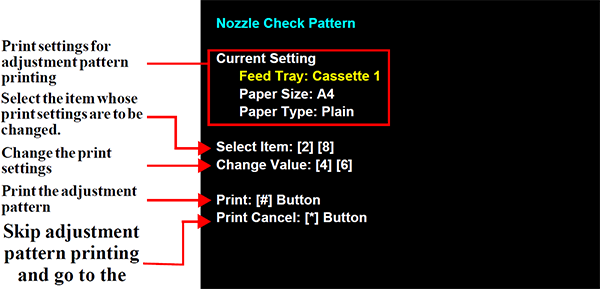

4. The following screen will be displayed.

5. Load paper into the paper feed tray.
6. Press the [#] button to print the check patterns.
7. Check the check patterns and take a measure based on the judgment procedure.
