# Ink End Sensor

1. Open the Paper Jam Clear Cover (A).

2. Remove the screw on the rear side of the product, then remove the Paper Jam Clear Cover Holder (A).

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
3. Disconnect the cable (B) from the connector of the Rear RIPS Cover Sensor (A).

4. Remove the four screws that secure the Rear RIPS Housing Assy (A).




   • : C.SHOULDER S-TITE,3X5
   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
5. Remove the Rear RIPS Housing Assy (A) pulling out the cable (C) through the hole (B) of the assy.




   Assembly / 組み立て

   Before reinstalling the Rear RIPS Housing Assy (A), remove the Paper Jam Clear Cover Sensor (B). After connecting the cable, install the sensor to the Rear RIPS Housing Assy.

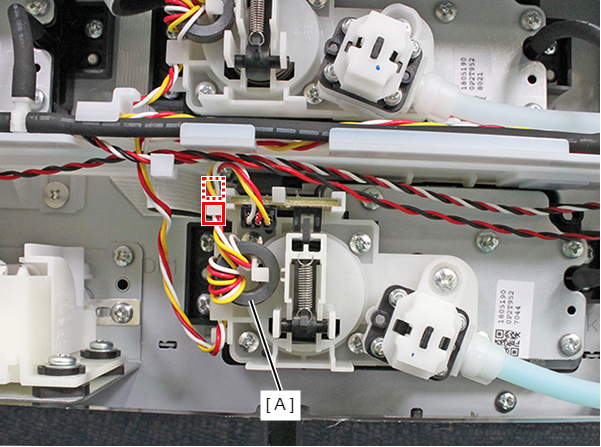

6. Release the cable from the two hooks and remove the ferrite core (A).

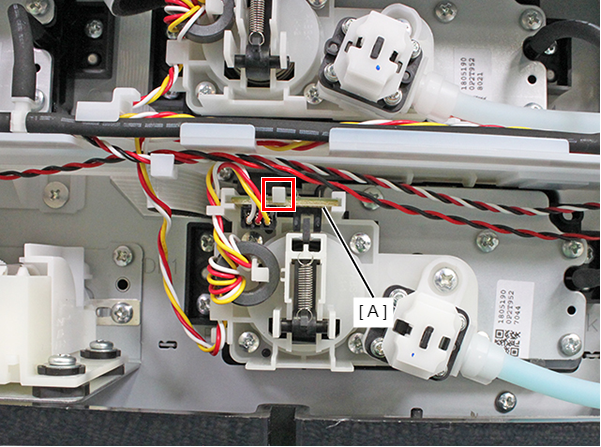

7. Remove the Ink End Sensor (A) by releasing the hook.

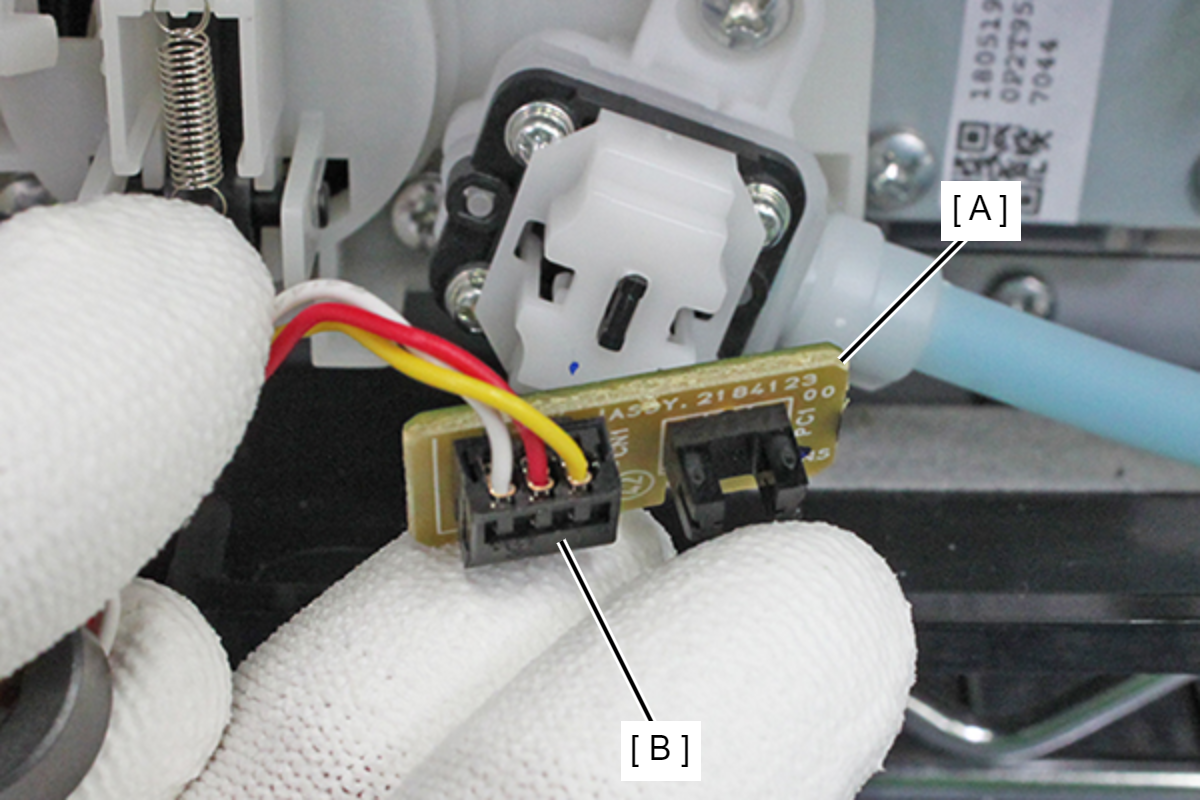

8. Remove the cable from the connector (B) of the Ink End Sensor (A) and remove the Ink End Sensor.
