Lubrication 3

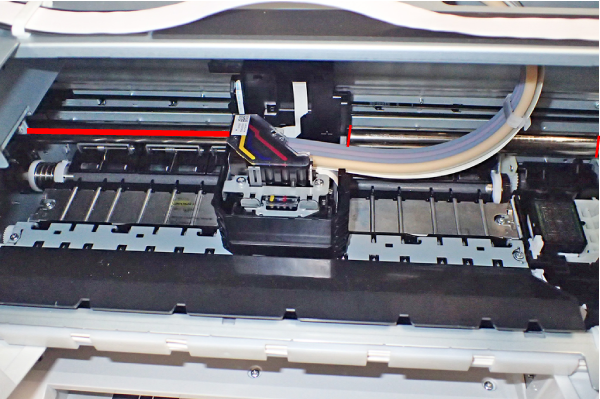

| Corresponding Part | CR Shaft |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | Appropriate amount |
| Tools | Brush |
| Lubrication Manner | Lubricate with brush on the application point as shown in the figure. |
| Precautions | --- |
