# Rear ASF Solenoid　

1. Remove one screw.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Slide the Left SC Cover (A) while pushing the dent (B) of Left SC Cover, and remove it.

3. Remove the four screws fastening the Left Housing (A).


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
4. Remove the two dowels.

5. Remove the rib on the front side while lifting up the Left Housing (A).

6. Remove the rib on the back side while lifting up the Left Housing (A), release the hook (B) and then remove the Left Housing (A).

7. Remove one screw, and remove the Lower SC Reinforcing Plate (A).


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
8. Reattach the Lower SC Reinforcing Plate (A) in its portrait orientation, then secure it with the screw.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
9. Remove the screw.


   • : C.SHOULDER S-TITE,3X5
10. Open the ADF/SCN Unit (A).

11. Open the ADF/SCN Unit (A) and extend the support stand (B) as far as it goes, then support the ADF/SCN Unit with the support stand.




    Caution / 注意

    Make sure that the support stand (A) is fixed with the two hooks, and the two triangle marks (B) face to each other.

    Check Point / チェックポイント

    When closing the ADF/SCN Unit (A), press the switch (C) on the ADF/SCN support stand (B) and hold up the ADF/SCN Unit to disengage the two hooks, then fold the ADF/SCN support stand.

12. Open the Duplex Print Cover (A).

13. Remove the seven screws.


    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
14. Press the Rear Housing Assy (A) in the direction of the arrow, then release the hook.

15. Remove the Rear Housing Assy (B) while releasing the place interfering with the Rear ASF Unit (A).

16. Remove the two screws, then remove the Mounting Plate Assy (A).


    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
17. Disconnect the two cables (A, CN41) from the connectors.

18. Remove one screw, then release the Grounding Wire (A).


    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
19. Release the Grounding Wire (C) and Cable (B) from the clamp (A).

20. Remove the two screws and then remove the Rear ASF Unit (A).


    • : C.SHOULDER S-TITE,3X5

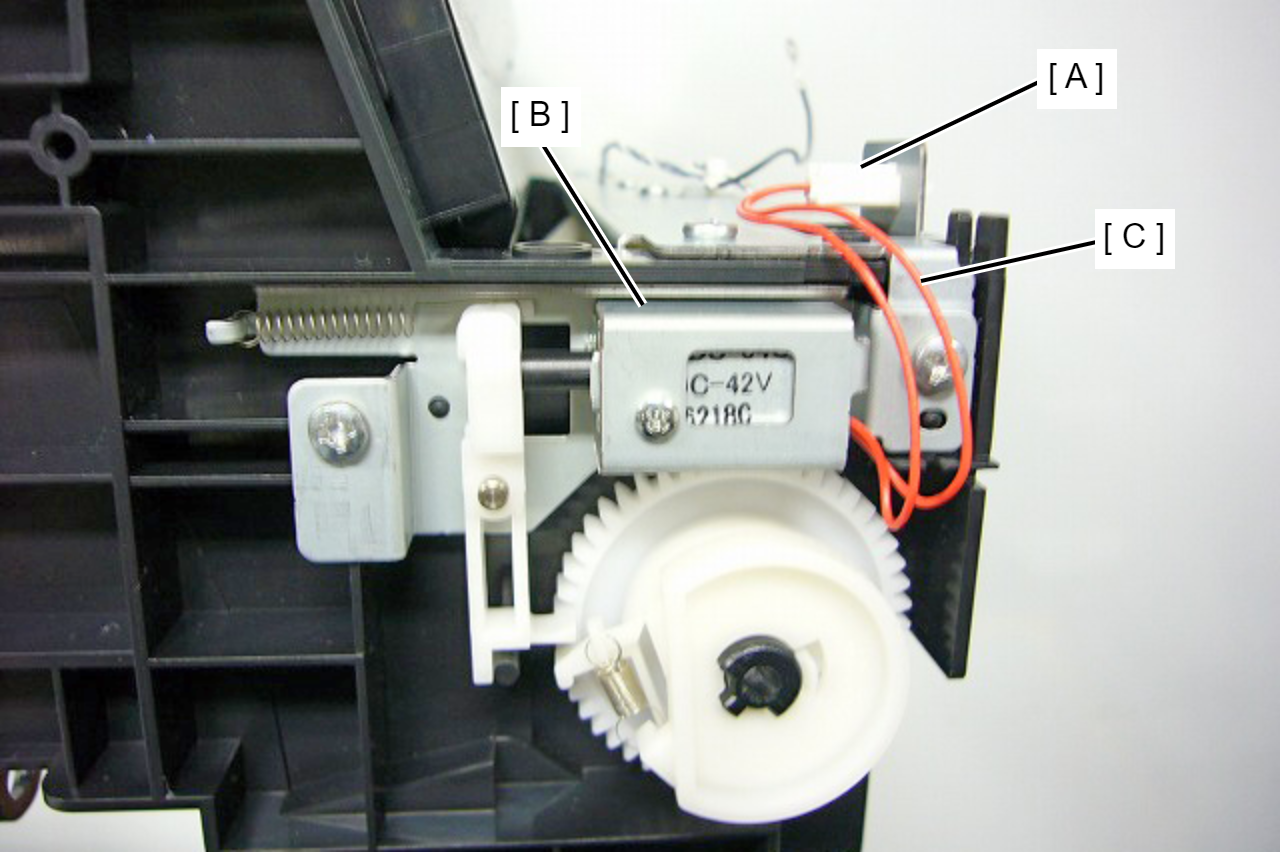

21. Disconnect the cable (C) of the Rear ASF Solenoid (B) from the relay connector (A).

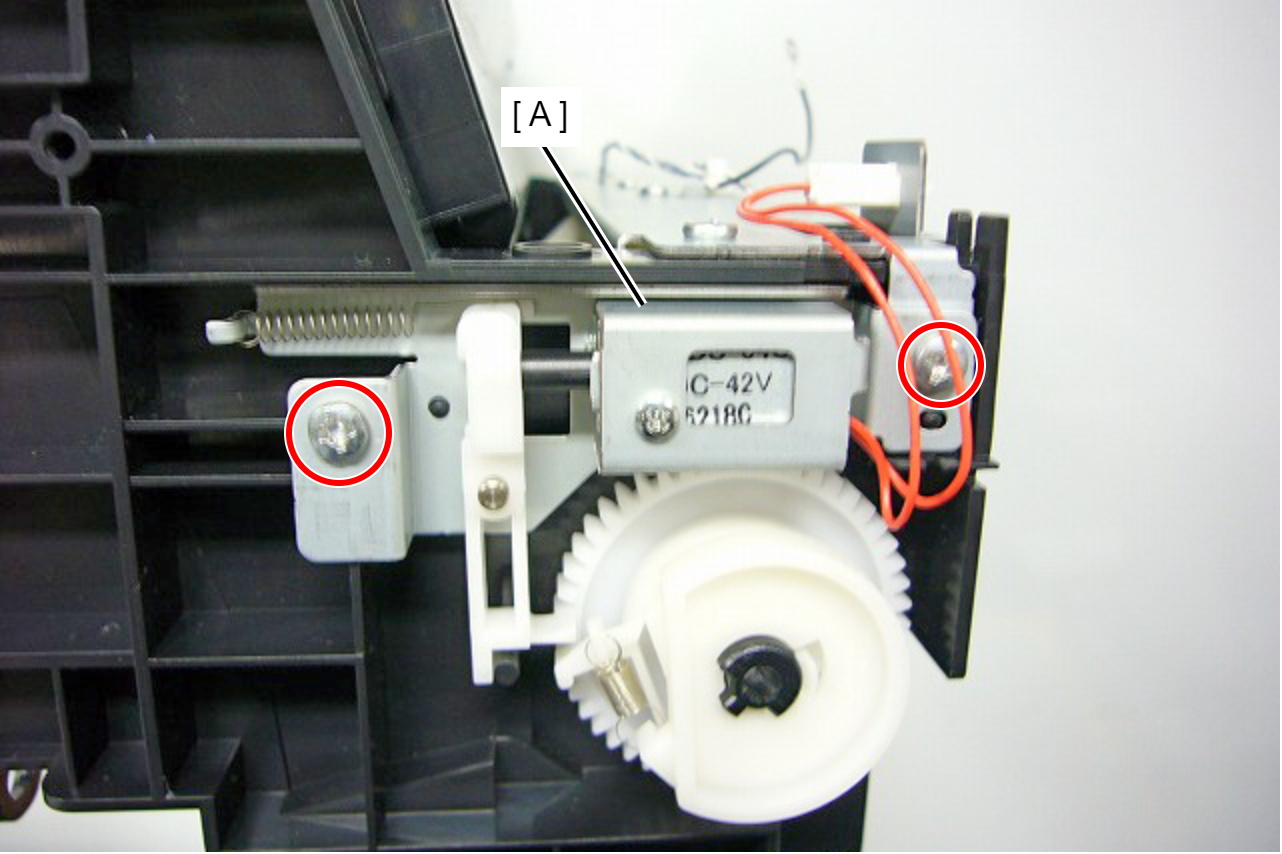

22. Remove the two screws, then remove the Rear ASF Solenoid (A).


    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
