# PF Encoder Assy　

1. Remove one screw.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Slide the Left SC Cover (A) while pushing the dent (B) of Left SC Cover, and remove it.

3. Remove the four screws fastening the Left Housing (A).


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
4. Remove the two dowels.

5. Remove the rib on the front side while lifting up the Left Housing (A).

6. Remove the rib on the back side while lifting up the Left Housing (A), release the hook (B) and then remove the Left Housing (A).

7. Remove the screw, then remove the Left PG Cam Screw Holder (A) with the screw.


   • : C.C.SCREW-3x6-F.ZN-3C

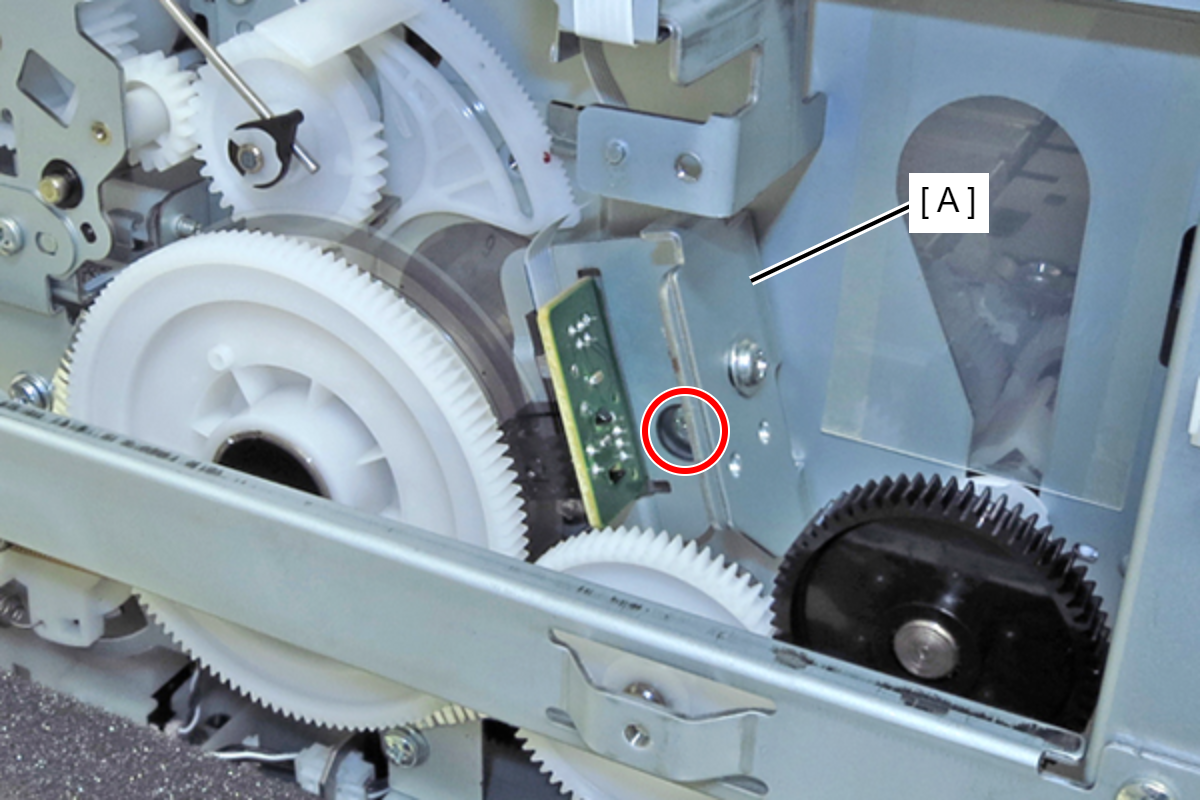

8. Remove the screw, then remove the Anti Static Brush Plate (A).

   • : C.B.S-TITE-SCREW-3x6-F.ZN-3C

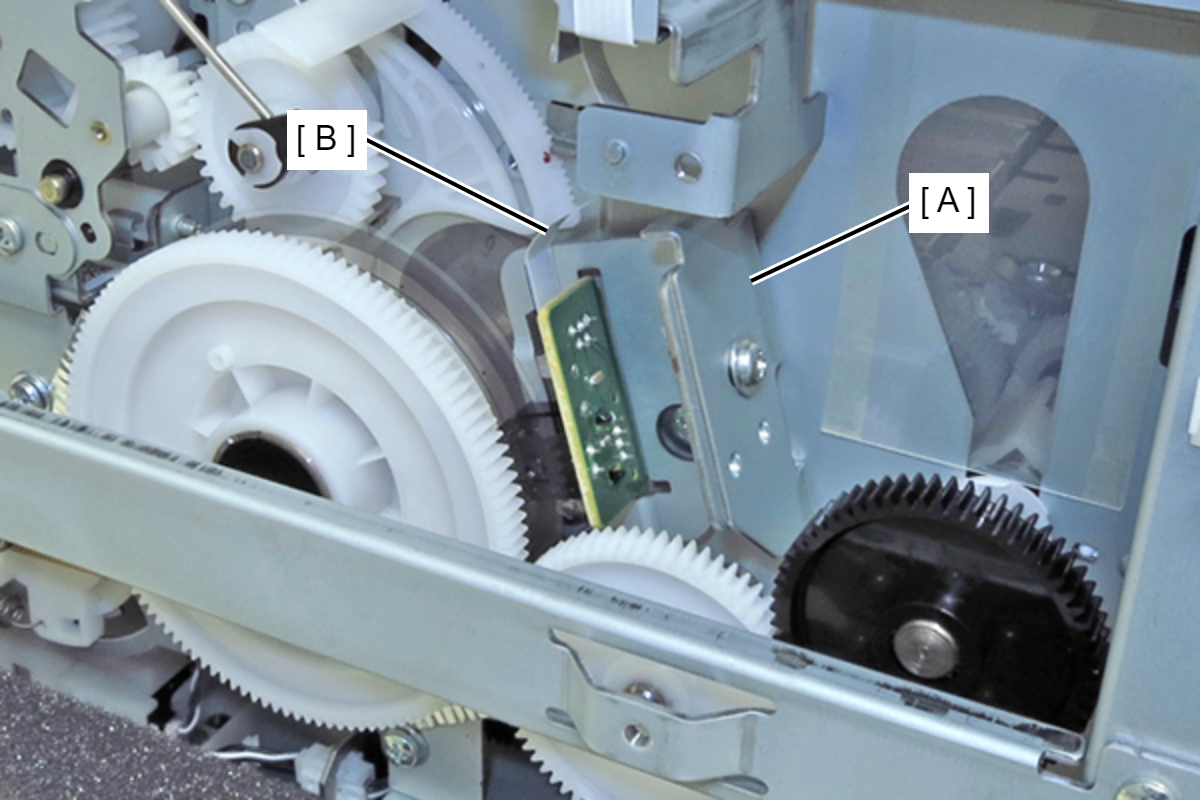

9. Disconnect the FFC (B) from the PF Encoder Assy (A).

10. Remove the screw, then remove the PF Encoder Assy (A).


    • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
