Lubrication 7

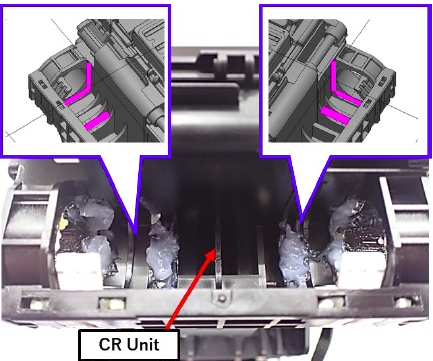

| Corresponding Part | CR Unit |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | Apply up to the ribs |
| Tools | syringe |
| Lubrication Manner | Apply the mixture to the CR main bearing part of the CR unit using a syringe. |
| Precautions | --- |
