ADF Pad Assy

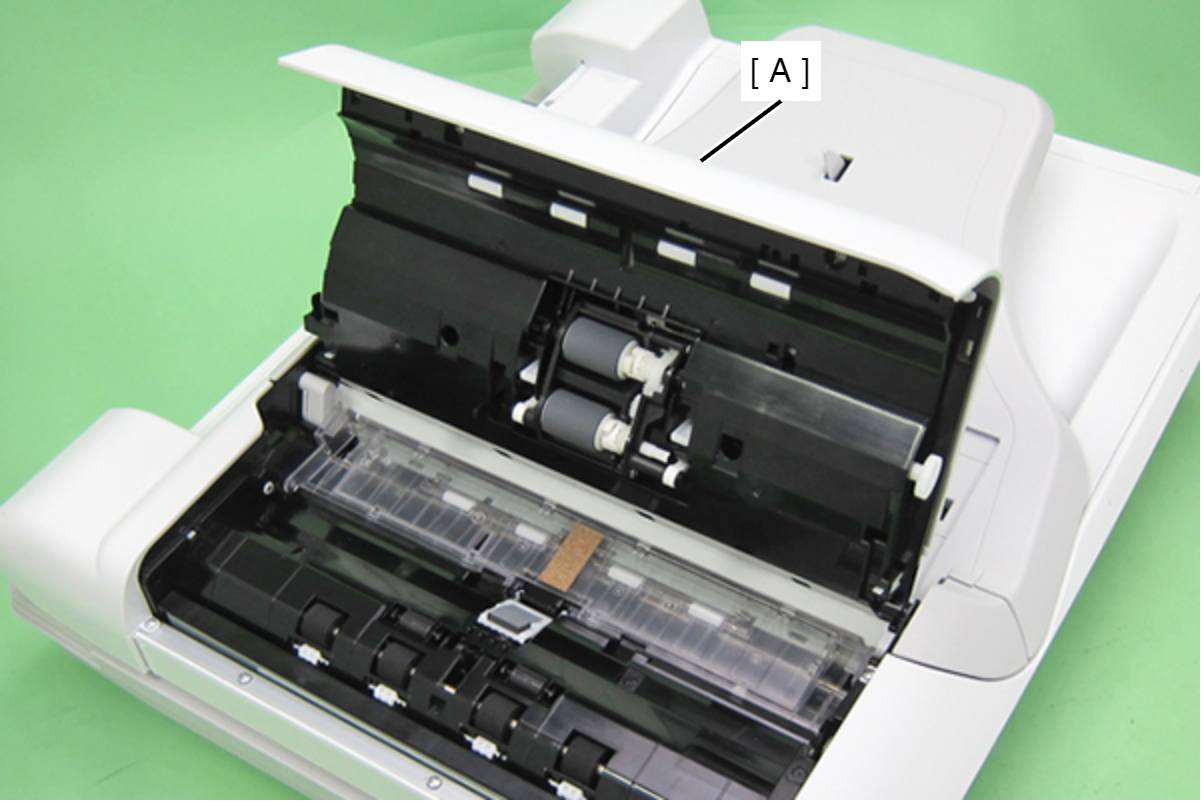

- Open the ADF Cover Assy (A).

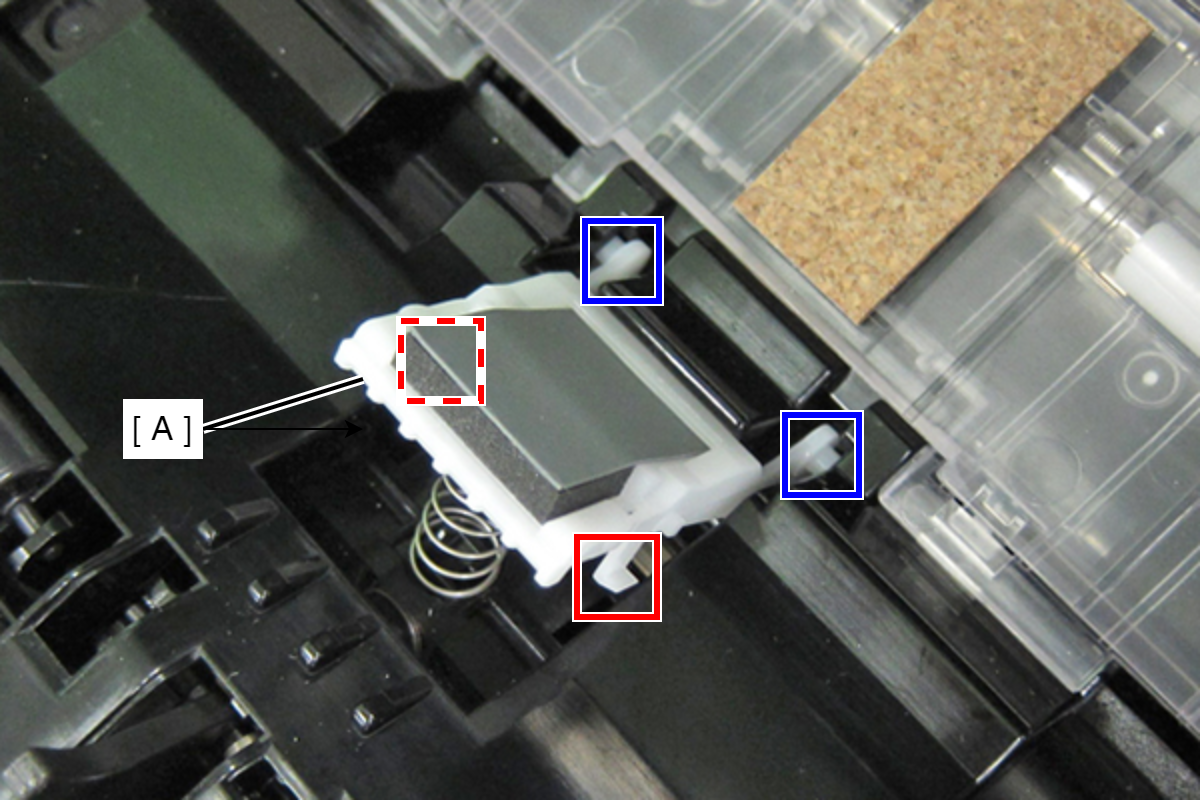

- Disengage the two hooks and dowels, then remove the ADF Pad Assy (A).
