CR・PF Pattern (Dup)

Adjustment pattern

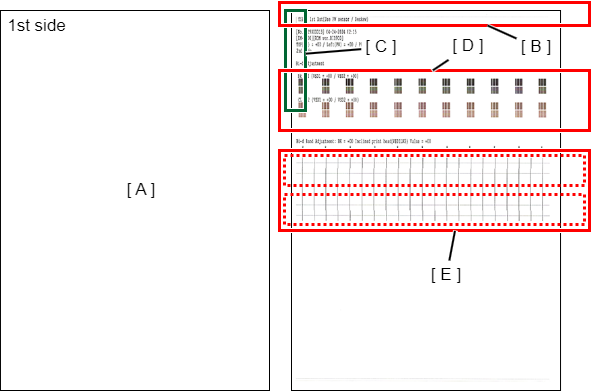

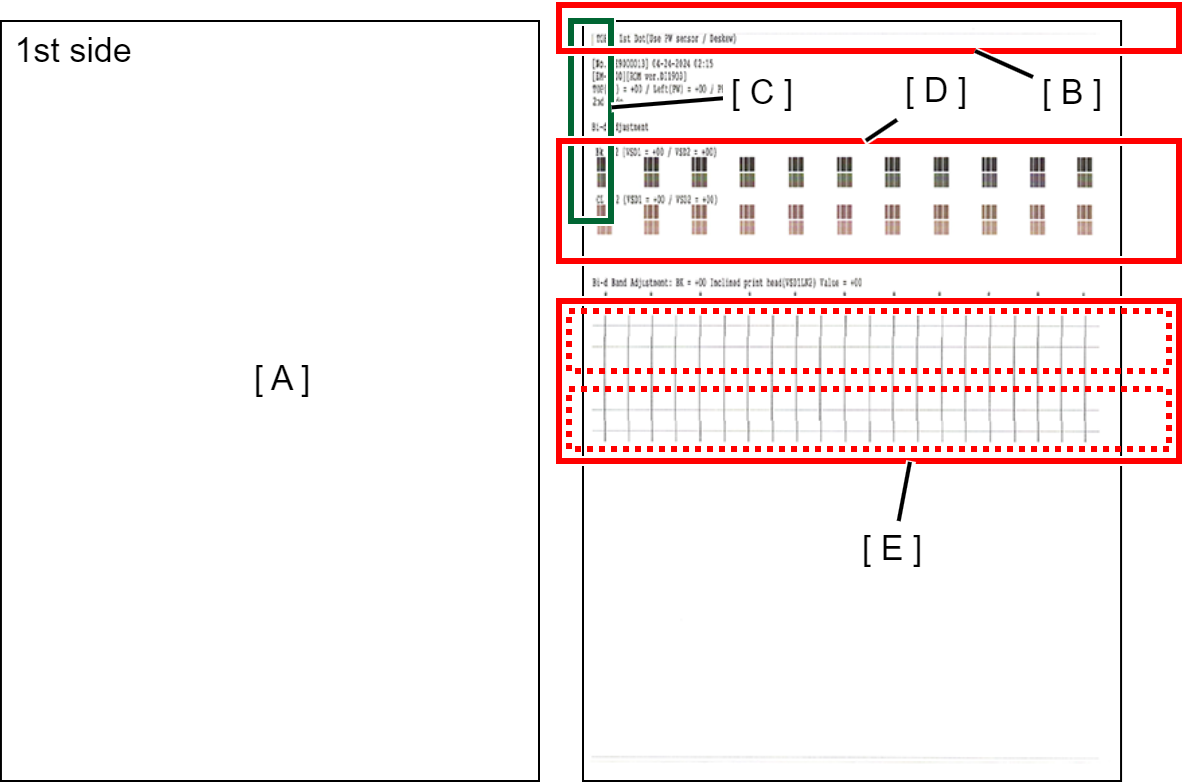

Checking target
  • Front side
    • A: No object
  • Back side
    • B: 1st dot position misalignment, paper skew
    • C: Printing start position misalignment
    • D: Bi-d Adjust failure (condition: PG2)
    • E: Bi-d Band Adjust failure (condition: PG2)
Judgment method
  • A: No object
  • B: Is the distance between the horizontal line and the top edge of the paper within 3±1.0 mm.
  • C: Is the distance between the vertical line and the left edge of the paper within 3±1.5 mm.
  • D: Any overlapping of the upper and lower blocks or any white band in the center patch?
  • E: Are the upper and lower lines printed straightly inside the judgment area (inside the dotted line)?
Remedy
