# Star Wheel Assy After Parts Replacement

#Procedure

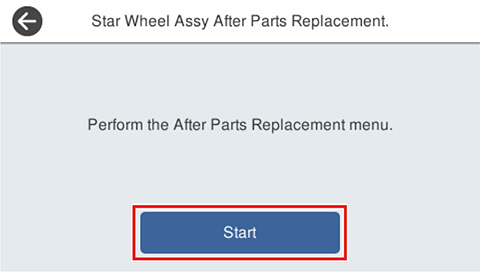

1. Turn the power ON.
2. Press [Start].

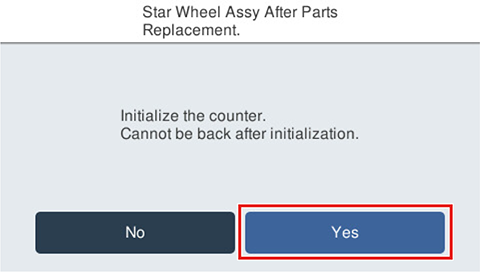

3. Press [Start].

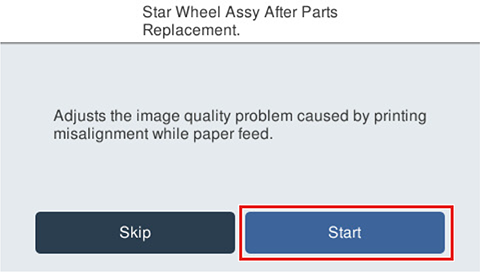

4. Press [Start].

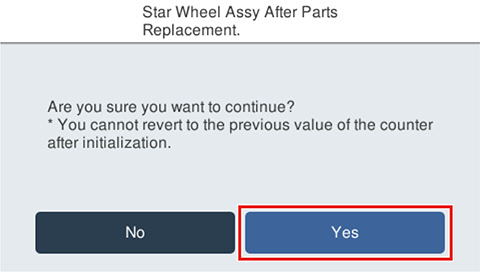

5. Select [Start].

6. If the following screen is displayed, press [Pattern print].

7. Press each setting item button to make print settings.




   Setting Items	Choice	Remarks
   Feed Tray	C1, C2, C3, C4, Rear ASF	---
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---

8. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 8 sheets.

   • Adjustment pattern




9. Press [OK] on the following screen.



10. Check the adjustment pattern and determine the adjustment values for each of #1 through #16 based on the judgment method.

    Check Point / チェックポイント

    Adjustment value judgment method Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

11. Press on [#1] through [#16] and enter the adjustment value.

12. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.




    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

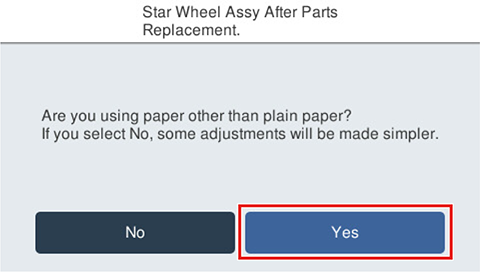

13. Select [Start].

14. If the following screen is displayed, press [Pattern print].

15. Press each setting item button to make print settings.




    Setting Items	Choice	Remarks
    Feed Tray	C1, C2, C3, C4, Rear ASF	---
    Paper Type	Plain Paper	Setting change not possible
    Paper Size	A4 / Letter	---

16. Load paper in the selected feed tray and press [Start]. Adjustment patterns are printed on 1 sheet.

    • Adjustment pattern




17. Press [OK] on the following screen.




18. Check the adjustment pattern and determine the #1 adjustment value based on the judgment method.

    Check Point / チェックポイント

    Adjustment value judgment method Select the value of the pattern with the fewest white lines and with no overlap with upper/lower blocks.

19. Press [#1] and enter the adjustment value.

20. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.




    Note / 補足

    If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.

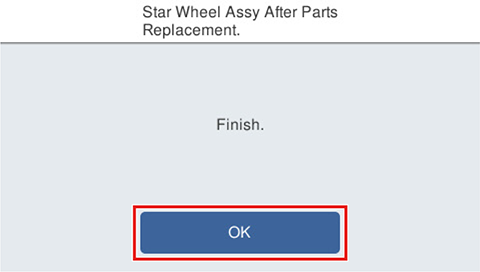

21. Press [OK].
