20107 PF Pattern(PG3)

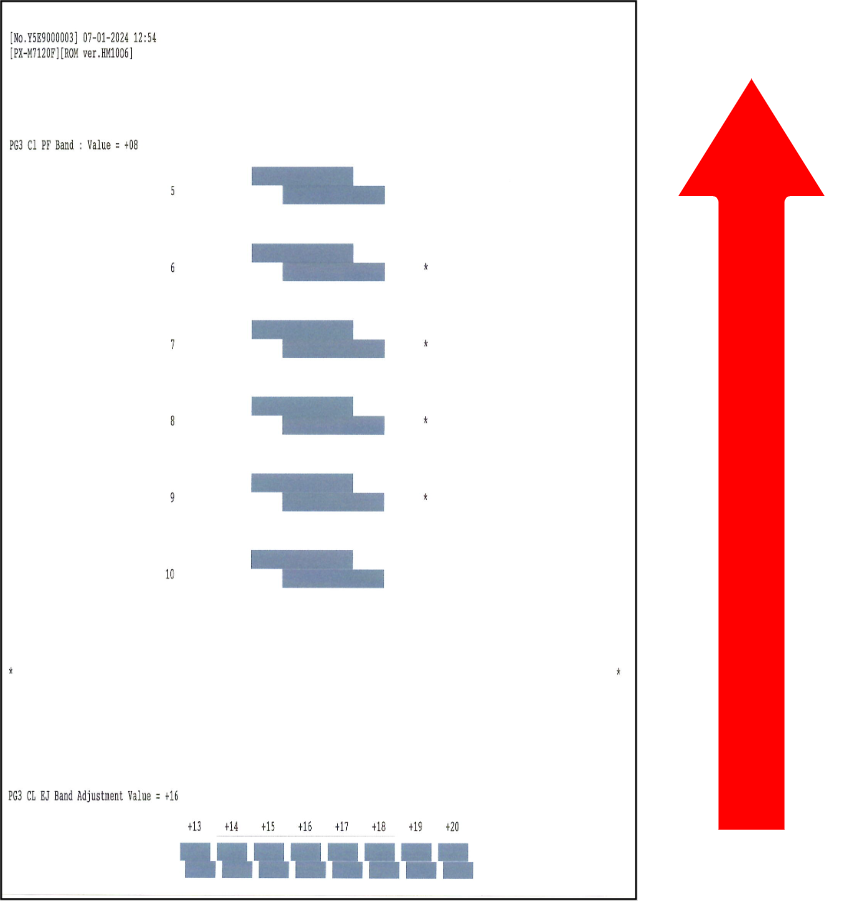

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
20107 PF Pattern(PG3)
  • Judgment method
    • Any overlapping of the upper and lower blocks or any white band in the center patch?
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 2

  • PF Band Feed Adjust failure (condition: PG3, monochrome)

  • PF Band Feed Adjust failure (condition: PG3, color)
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [02 Check Pattern Print].

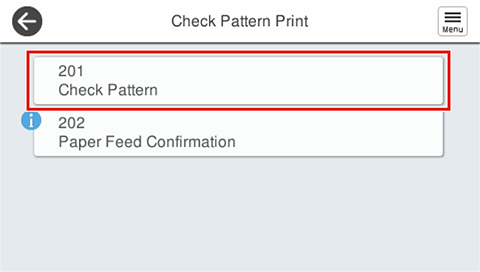

  3. Select [201 Check Pattern].

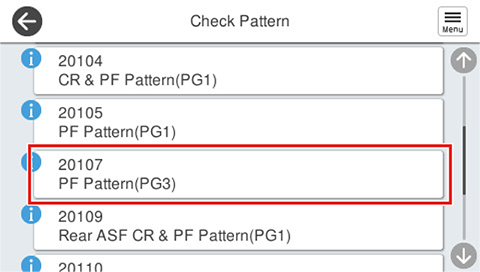

  4. Select [20107 PF pattern(PG3)].

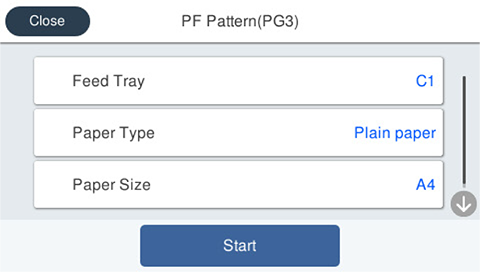

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1 Setting change not possible
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---

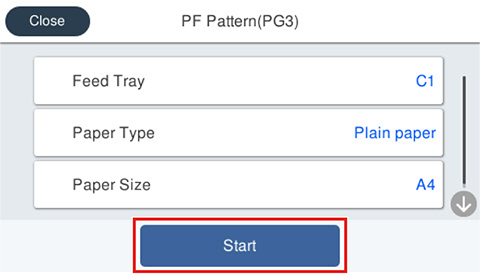

  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “PF pattern (PG3)”.)
