Lubrication 6

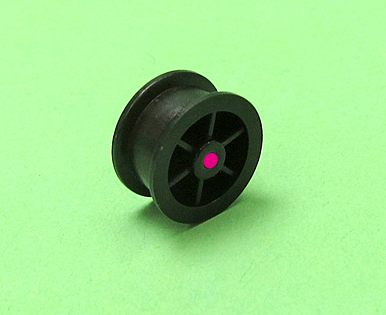

| Corresponding Part | CR Driven Pulley |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | ⌀1 mm × 1 mm |
| Tools | ⌀1 mm syringe |
| Lubrication Manner | Lubricate with injector on the hole on CR Driven Pulley as shown in the figure. |
| Precautions | --- |
