# C2 Frame Right Assy Before Parts Replacement

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

3. Select [502 Additional Cassette].

4. Select [50201 Paper Feed/Eject Related Parts].

5. Select [5020107 C2 Frame Right Assy].

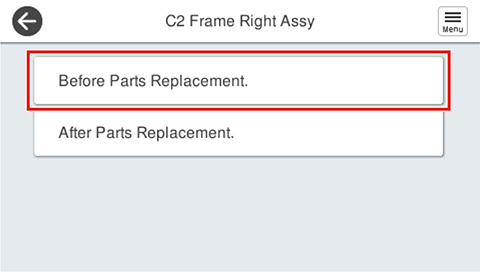

6. Select [Before Parts Replacement].

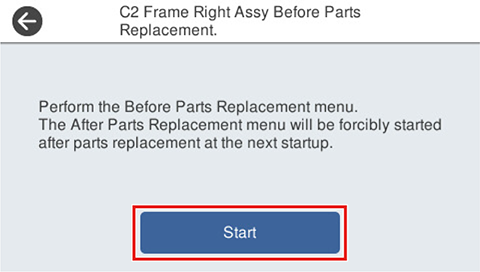

7. Press [Start].

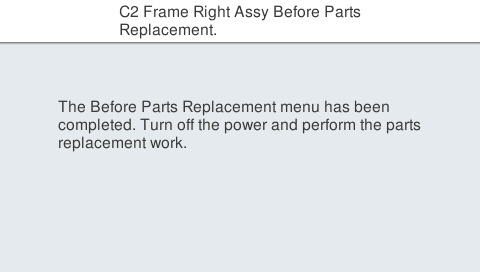

8. Turn OFF the product power when the following screen is displayed.
   When the power of the product is turned on, the product starts in service support mode, and the [After replacement] screen of the C2 Frame Right Assy is displayed.
