# C3 Frame Right Assy Before Parts Replacement

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

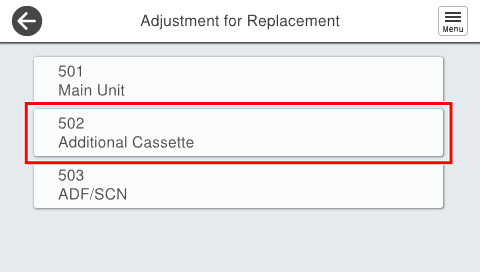

3. Select [502 Additional Cassette].

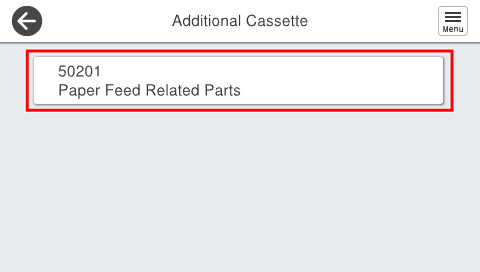

4. Select [50201 Paper Feed/Eject Related Parts].

5. Select [5020108 C3 Frame Right Assy].

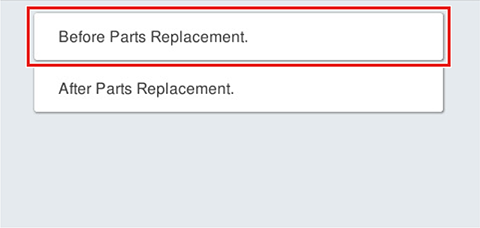

6. Select [Before Parts Replacement].

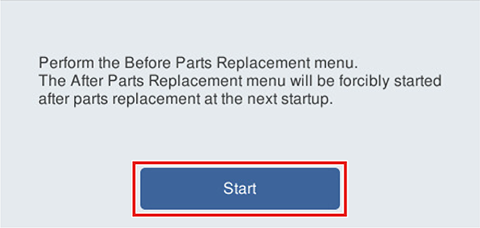

7. Press [Start].

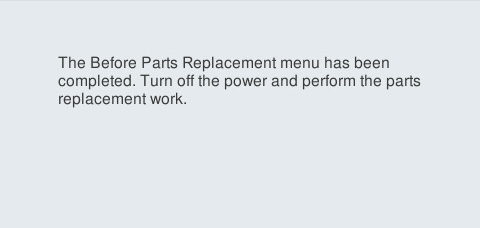

8. Turn the power OFF.
   When the power of the product is turned on, the product starts in service support mode, and the [After replacement] screen of the C3 Frame Right Assy is displayed.
