# 60109 Nozzle Noise Check

#Overview

Confirm that there is no occurrence of an abnormal signal leading to the failure of the nozzle’s diagnostic function due to a parts failure or assembly failure.

#Required Tool

---

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

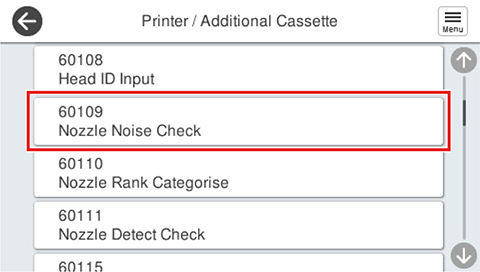

4. Select [60109 Nozzle Noise Check].

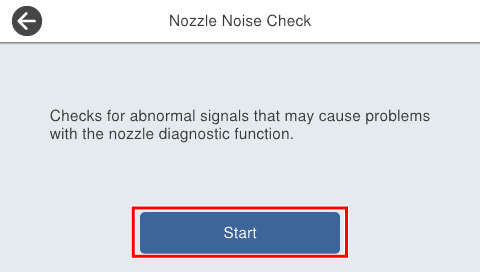

5. Press [Start].

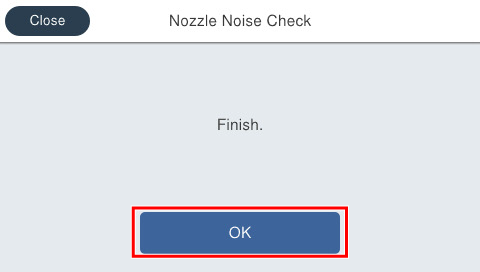

6. If the following screen is displayed, press [OK] to complete.




   Check Point / チェックポイント

   If an error is displayed, confirm that the print head and head FFC are properly assembled. If there is a defect, replace the print head and head FFC with a new one.
