Paper Guide Support

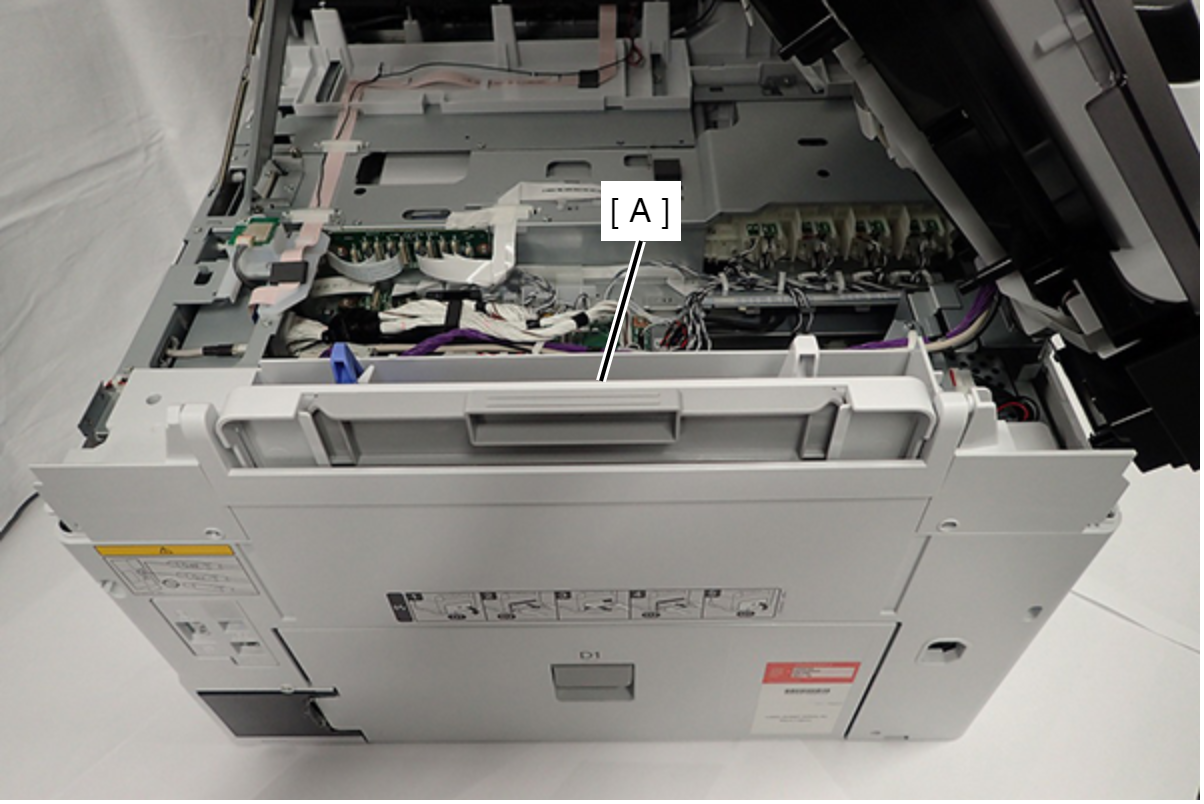

- Pull out the Paper Guide Assy (A).

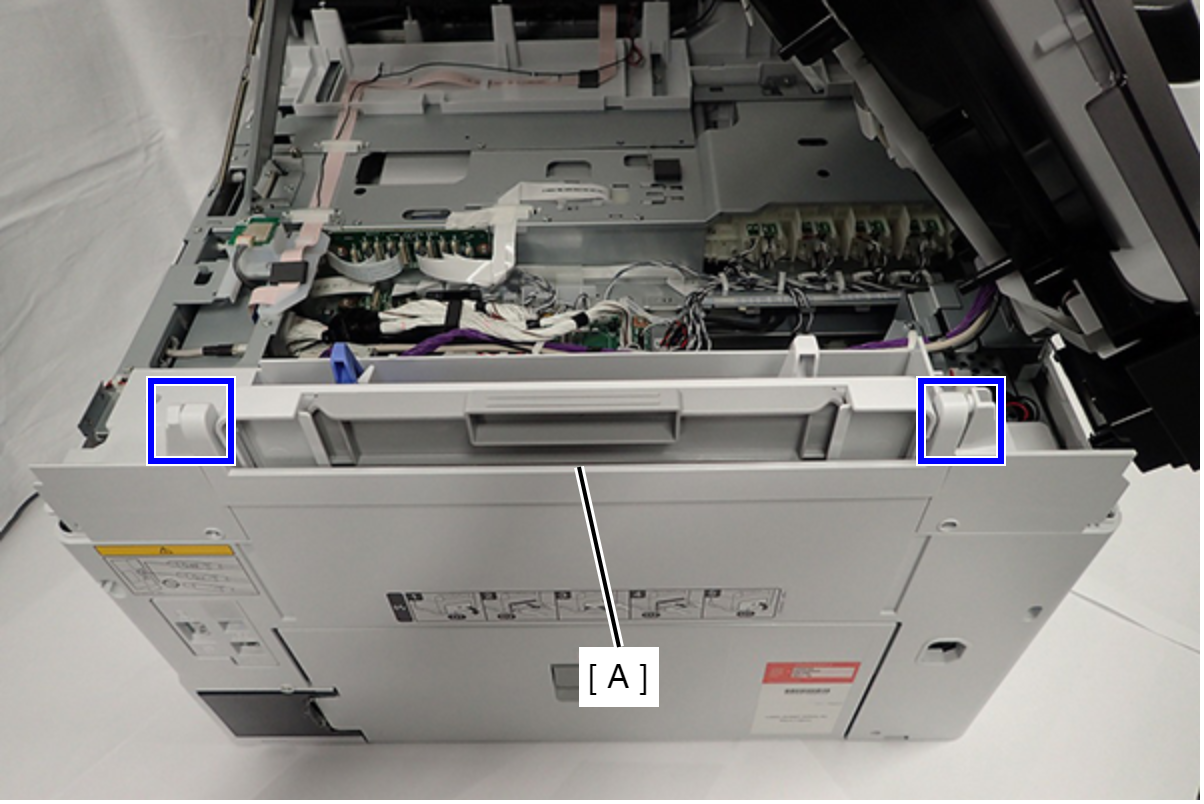

- Disengage the two dowels, then remove the Paper Guide Support (A).
