104 Export Status Sheet Data

Save the status sheet of this product to a USB memory in txt. format.

Status sheet to be saved
No. Status Sheet Name The string to be displayed in the output file Remarks
1 Printer information sheet (Product name)_(Serial No)_(Date and time)_PrinterConfigurationSheet_(Language).txt ---
2 Consumables information sheet (Product name)_(Serial No)_(Date and time)_SupplyStatusSheet_(Language).txt ---
3 Usage history sheet (Product name)_(Serial No)_(Date and time)_UsageHistorySheet_(Language).txt ---
4 Service Status Sheet (Product name)_(Serial No)_(Date and time)_ServiceStatusSheet_(Language).txt ---
5 Network Status Sheet (Product name)_(Serial No)_(Date and time)_StdNetworkStatusSheet_(Language).txt ---
6 Fax Setting List (Product name)_(Serial No)_(Date and time)_FaxSettingList_(Language).txt ---
7 Communication Log (fax) (Product name)_(Serial No)_(Date and time)_FaxCommunicationLog_(Language).txt ---
8 Communication Results (fax) (Product name)_(Serial No)_(Date and time)_FaxCommunicationResult_(Language).txt ---
9 Protocol trace (Product name)_(Serial No)_(Date and time)_StdProtocolMonitorLog_(Language).txt ---
10 Protocol Monitor Log (Optional FAX 1) (Product name)_(Serial No)_(Date and time)_Opt1 ProtocolMonitorLog_(Language).txt ---
Data acquisition procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Connect a USB memory to the USB port.

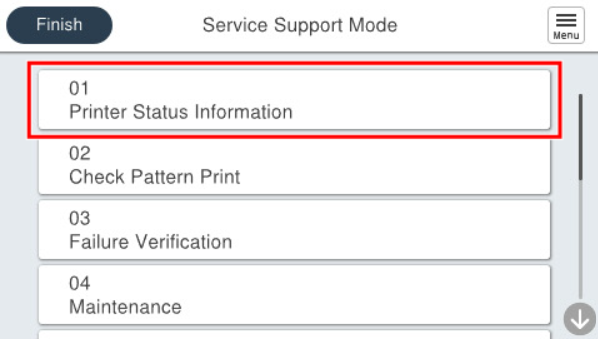

  3. Select [01 Printer Status Information].

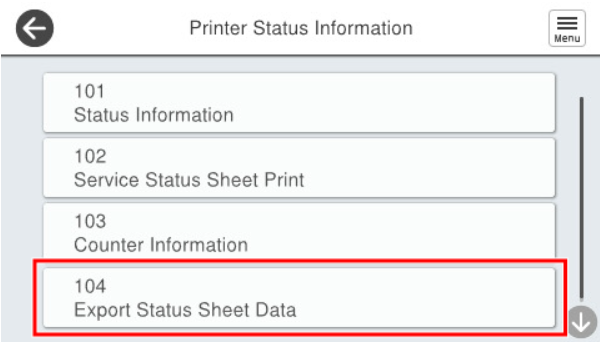

  4. Select [104 Export Status Sheet Data].

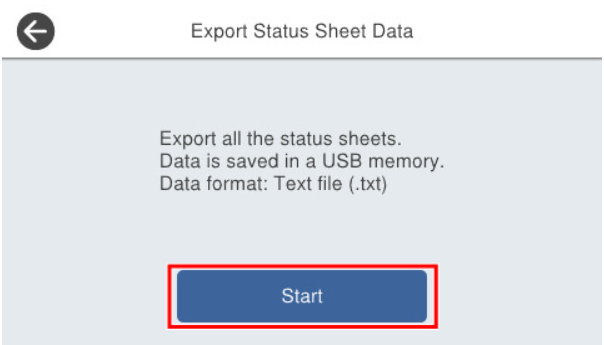

  5. Press [Start].
