# SMAP Drive Sensor

1. Remove one screw.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Slide the Left SC Cover (A) while pushing the dent (B) of Left SC Cover, and remove it.

3. Remove the four screws fastening the Left Housing (A).


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
4. Remove the two dowels.

5. Remove the rib on the front side while lifting up the Left Housing (A).

6. Remove the rib on the back side while lifting up the Left Housing (A), release the hook (B) and then remove the Left Housing (A).

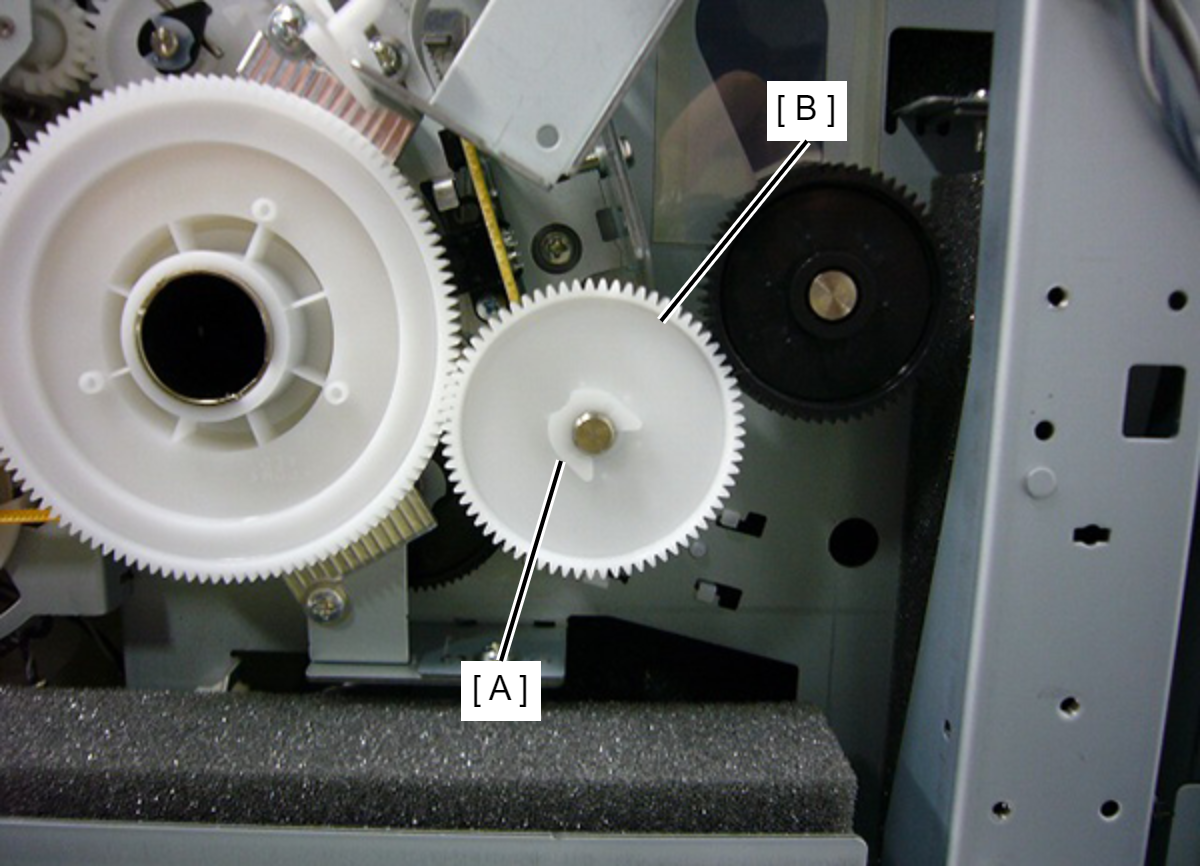

7. Remove the E-ring (A), then remove the Spur Gear (B).

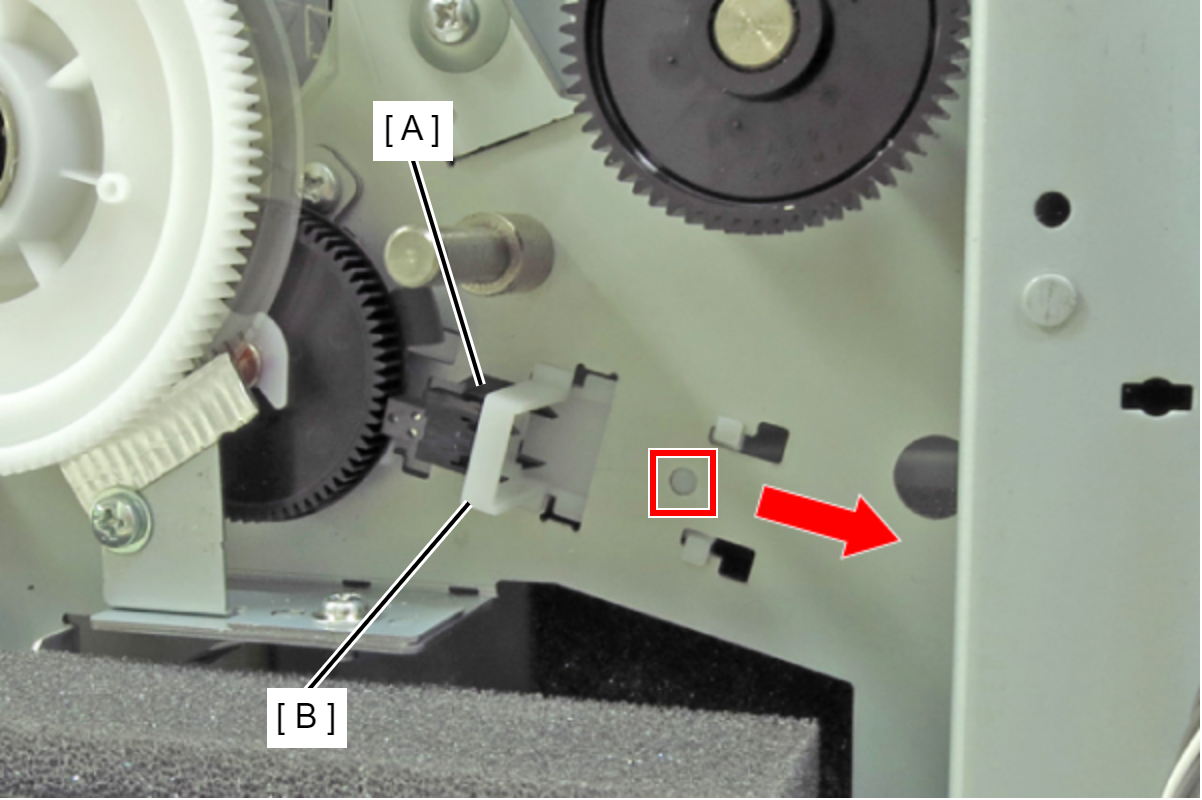

8. While pressing the dowel of the SMAP Drive Sensor Assy (A), remove the sensor holder (B) in the direction of the arrow.

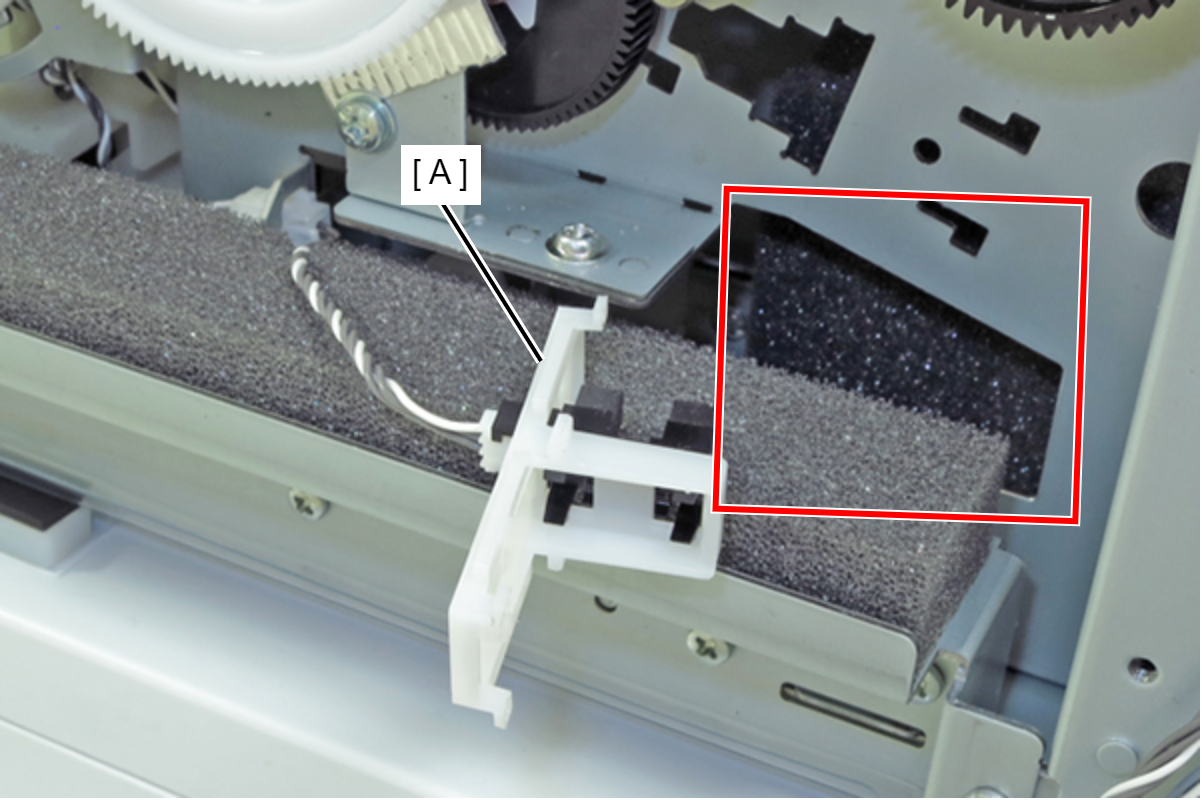

9. Pull out the SMAP Drive Sensor Assy (A) through the cutout of the frame.

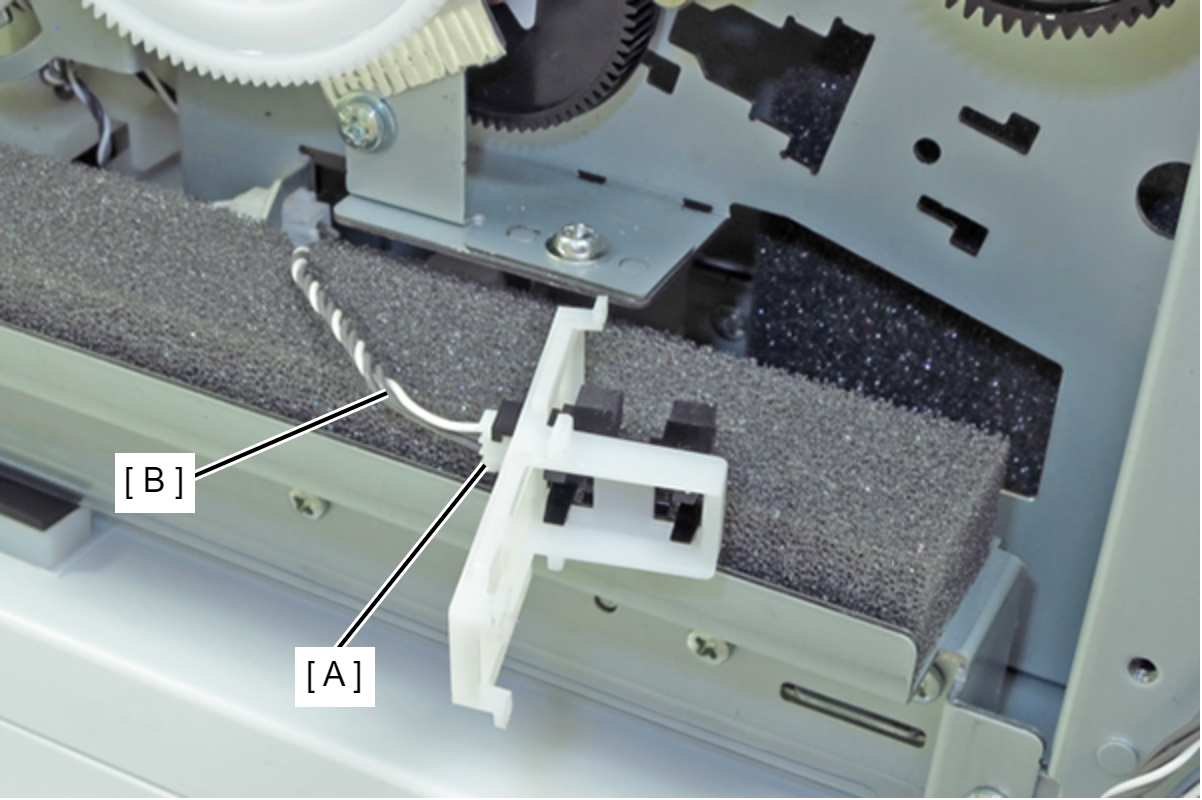

10. Disconnect the cable (B) from the connector (A) of the sensor.

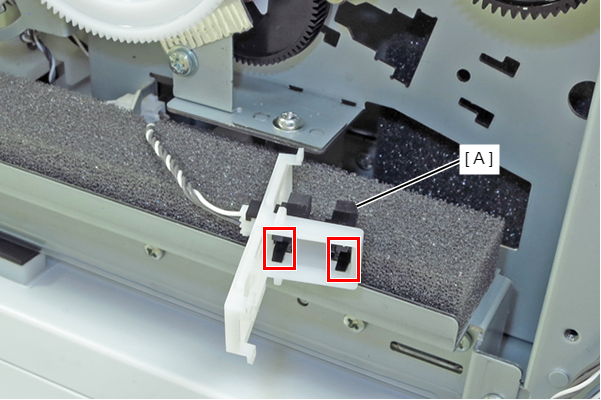

11. Disengage the four hooks, then remove the SMAP Drive Sensor (A).
