Unlocking the CR Unit
CR Unlock (Service Support Mode)
Refer to 60143 CR Unlock & Power OFF, and unlock the CR Unit.
CR Unlock (Hardware)
Open the Front Cover Assy.

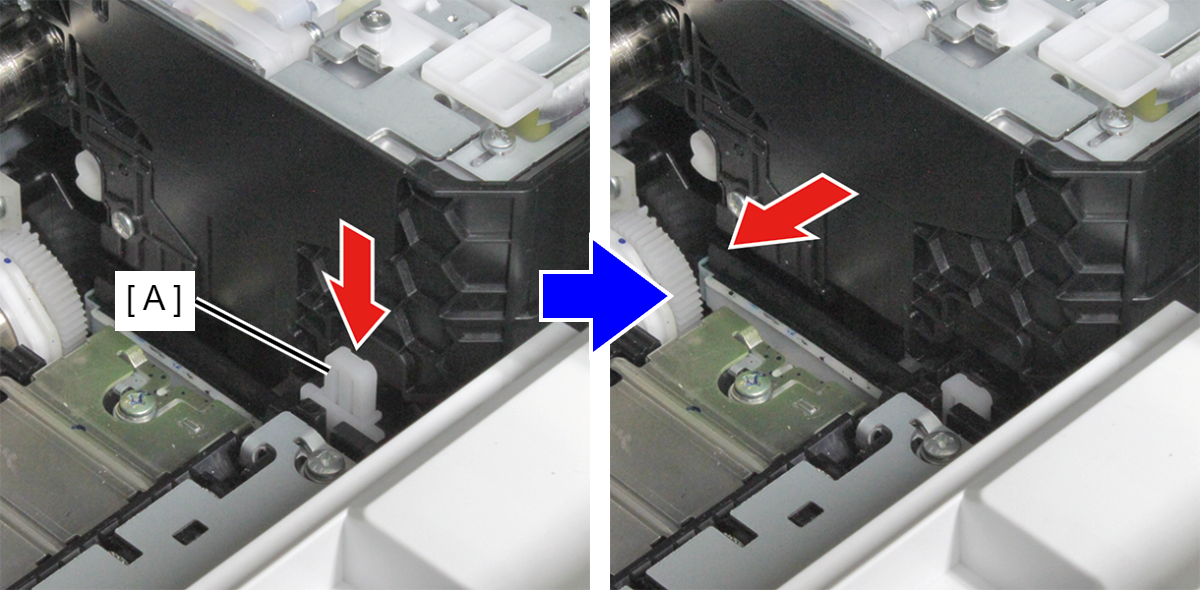

- Move the CR Unit to direction of arrow while pushing the CR Lock Lever (A) by hand.
