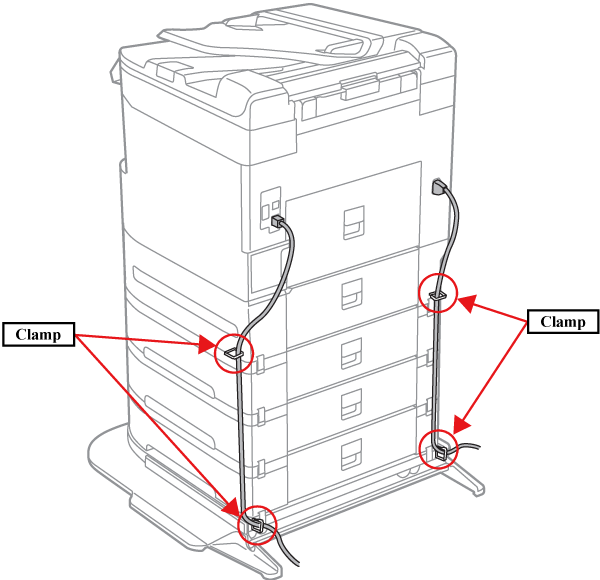

Attaching clamps
Peel away the blindfold seals, and route wiring through the clamps as shown in the figure below.
- EM-C8100 Series Service Manual Rev.F
