# PF Pattern (PG1)

#Adjustment pattern

#Checking target

• A: PF Band Feed Adjust failure (condition: PG1, monochrome)
• B: PE Band Feed Adjust failure (condition: PG1, monochrome)
• C: PF Band Feed Adjust failure (condition: PG1, color)
• D: PE Band Feed Adjust failure (condition: PG1, color)

#Judgment method

• AtoD: Any overlapping of the upper and lower blocks or any white band in the center patch?

  Check Point / チェックポイント

  Make sure the best pattern is one of the patterns with “*” printed on the right side.

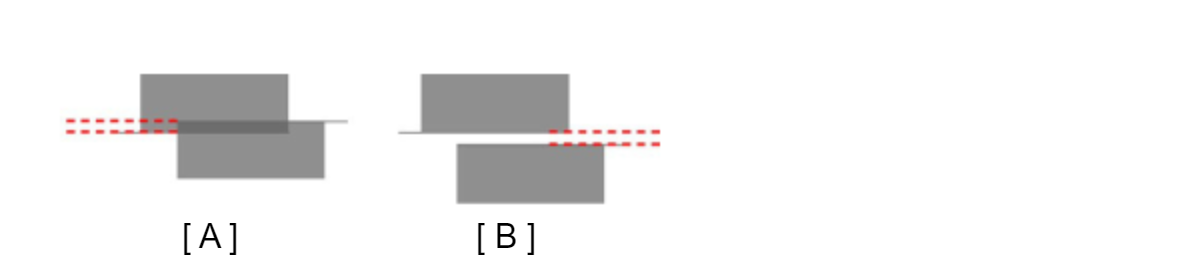

• • A: Overlapping of the upper and lower blocks

  • B: White band

#Remedy

• A～D：60132 PF/EJ Band Feed Adjustment.
