Motors

Name Function Type

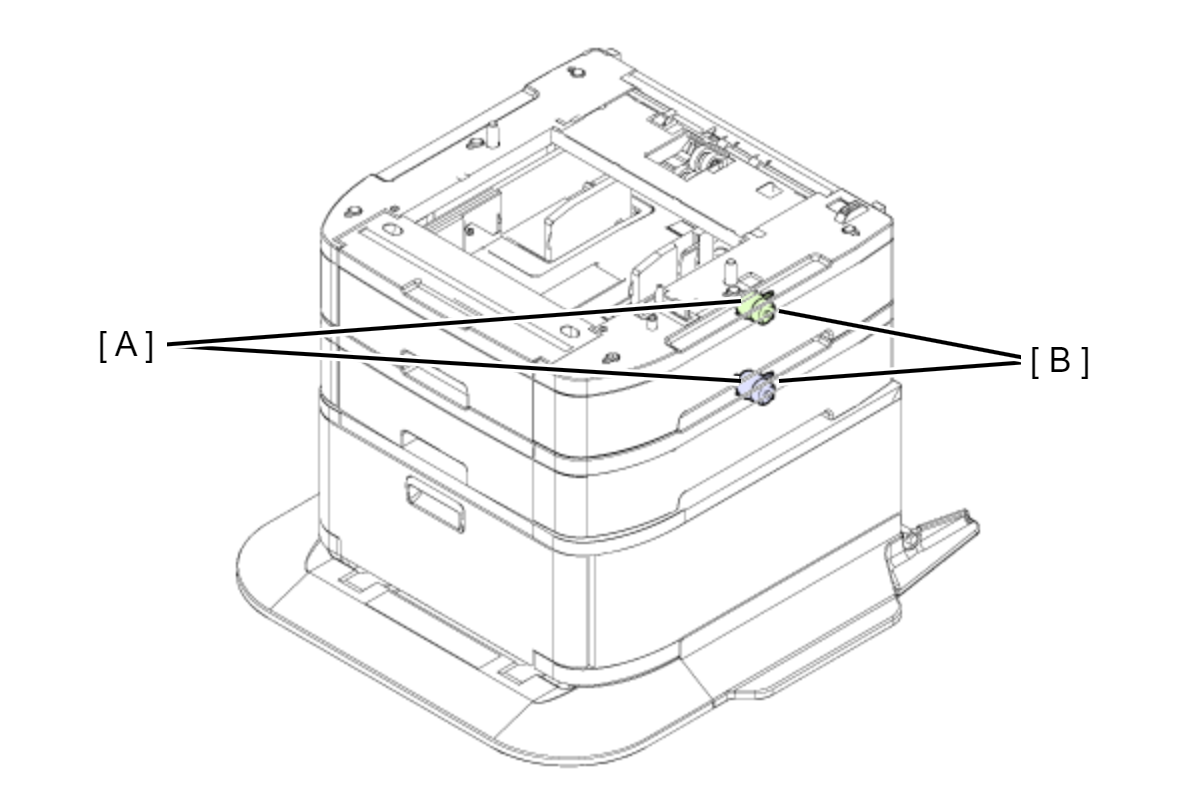

ASF Motor (A)

Used for driving the feed mechanism.

  • Pickup Roller
  • 2nd Separation Roller
 DC motor (42 VDC ±5%)
Liftup Motor (B) Used to raise the Paper Cassette Hopper. DC motor (42 VDC ±5%)
