| Name |
Function |
Type |

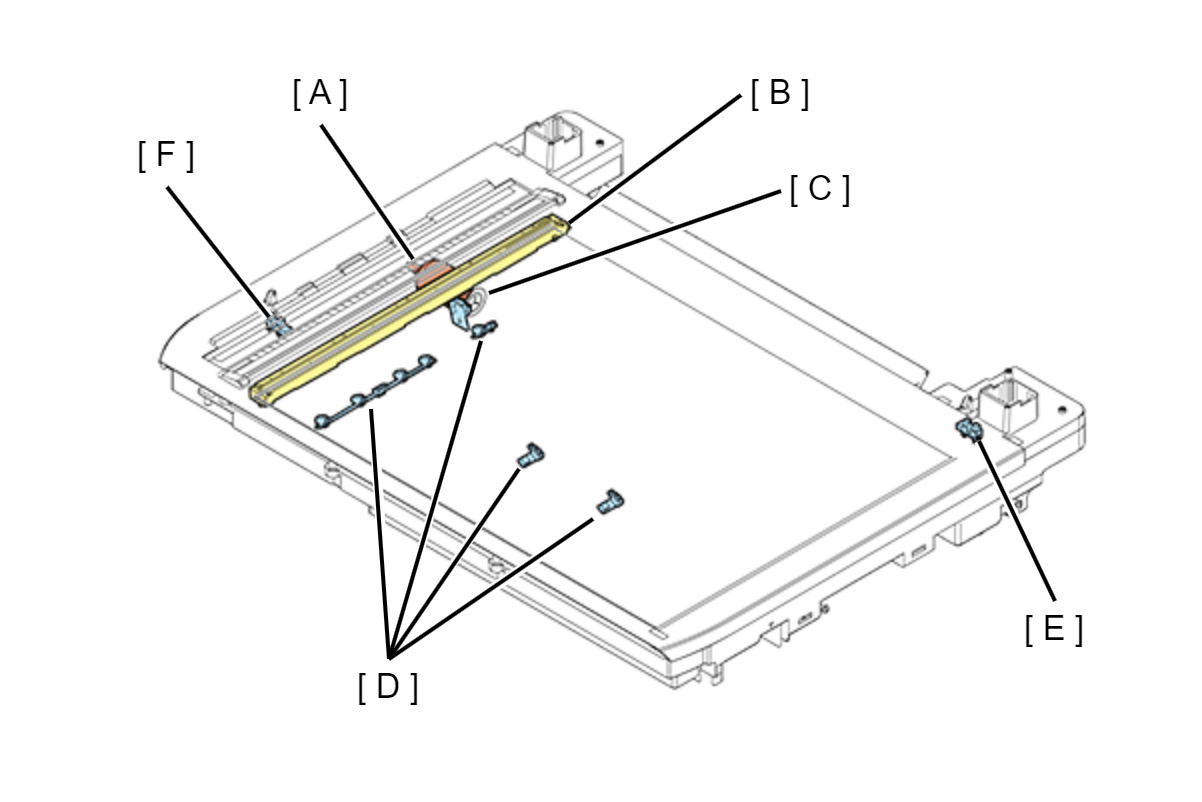

| Scanner Motor (A) |
Used for driving the scanner carriage. |
DC motor (42 VDC ±5%) |
| CIS Module (B) |
Used to read the document on the scanner glass and read the document on the ADF surface. |
CIS Imaging Sensor |
| SCN Encoder (C) |
Used for scanner motor operation control. |
Transmission type photo interrupter (3.3VDC±5%) |
| SCN Document Size Sensor (D) |
Detects the size of the document placed on the scanner glass. |
Reflective type photo interrupter (3.3 VDC ± 5%) |
| ADF Closed Sensor (E) |
Detects the open/closed state of the ADF unit. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF Half Closed Sensor (F) |
Transmission type photo interrupter (3.3VDC±5%) |
