| Name |
Function |
Type |

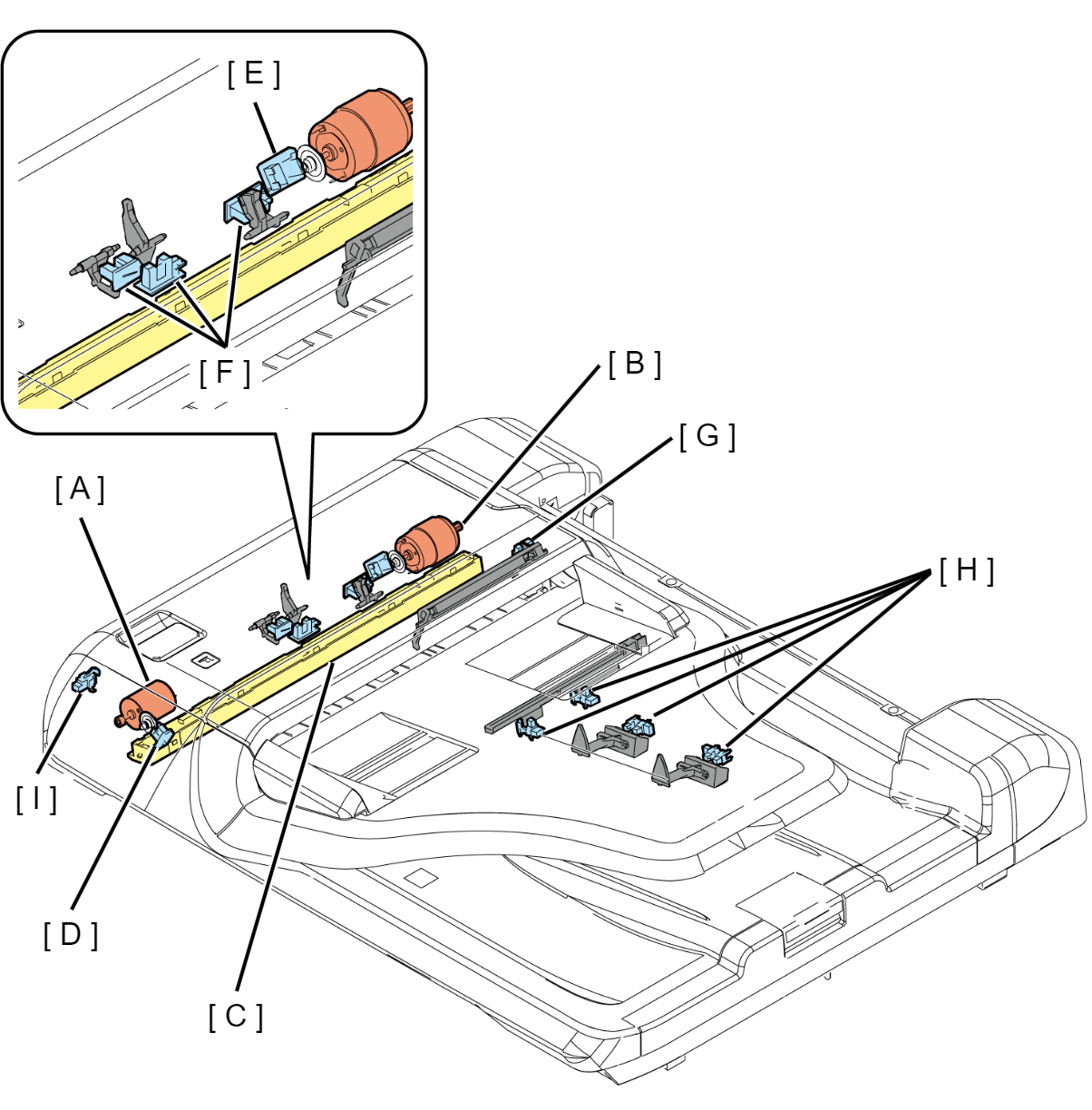

| ADF Pickup Motor (A) |
Used for driving the document feed mechanism. |
DC motor (42 VDC ±5%) |
| ADF PF Motor (B) |
Used for driving the document conveyance mechanism. |
DC motor (42 VDC ±5%) |
| CIS Module (C) |
Used for reading the back side when duplex scanning. |
CIS Imaging Sensor |
| ADF Pickup Encoder (D) |
Used for controlling operation of the ADF pickup motor. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF PF Encoder (E) |
Used for controlling operation of the ADF PF motor. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF PE Sensor A (F) |
Detects whether or not there is a document in the paper feed path. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF PE Sensor B (F) |
Detects whether or not there is a document in the paper feed path. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF PE Sensor C (F) |
Detects whether or not there is a document in the paper feed path. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF Document Sensor (G) |
Detects whether or not a document is placed on the ADF document support. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF Document Size Sensor (H) |
Detects the size of the document placed on the ADF document support. |
Transmission type photo interrupter (3.3VDC±5%) |
| ADF Cover Open/Closed Sensor (I) |
Detects the open/closed state of the ADF cover. |
Mechanical contact (3.3 VDC ±5%) |
