30301 Motor

You can operate each part displayed on the menu and check its situation.

Menu list
Program No. Menu Name Judgment method Remarks
3030101 C2 ASF Motor

Check the operating sound of the motor.

 ---
3030102 C2 Liftup Motor
  1. Pull out the Cassette.
  2. Check the operating sound of the motor.
 ---
3030103 C3 ASF Motor

Check the operating sound of the motor.

 ---
3030104 C3 Liftup Motor
  1. Pull out the Cassette.
  2. Check the operating sound of the motor.
 ---
3030105 C4 ASF Motor

Check the operating sound of the motor.

 ---
3030106 C4 Liftup Motor
  1. Pull out the Cassette.
  2. Check the operating sound of the motor.
 ---
Procedure
  1. Start service support mode. (Starting Service Support Mode)

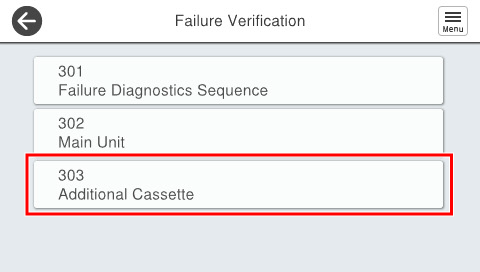

  2. Select [03 Failure Verification].
  3. Select [303 Additional Cassette].

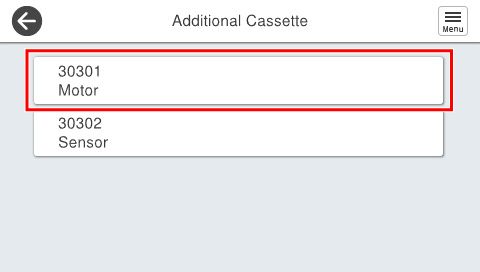

  4. Select [30301 Motor].
  5. Select the menu the user wishes to execute.

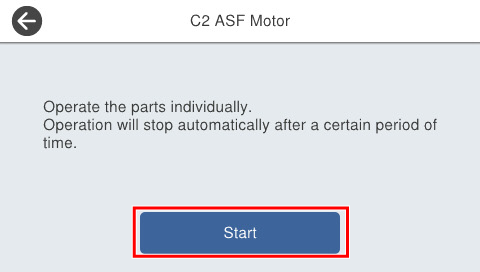

  6. Press [Start].
