PW Drive Shutter After Parts Replacement
Procedure
- Turn the power ON.

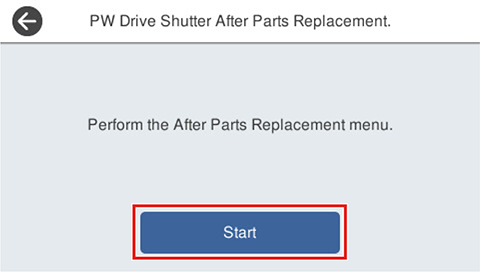

- Press [Start].

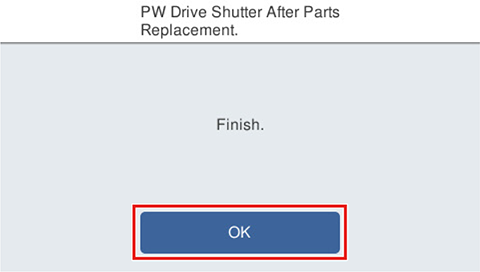

- Press [OK].
