# Paper Jam Clear Cover Open Sensor

1. Open the Paper Jam Clear Cover (A).

2. Remove the screw on the rear side of the product, then remove the Paper Jam Clear Cover Holder (A).

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

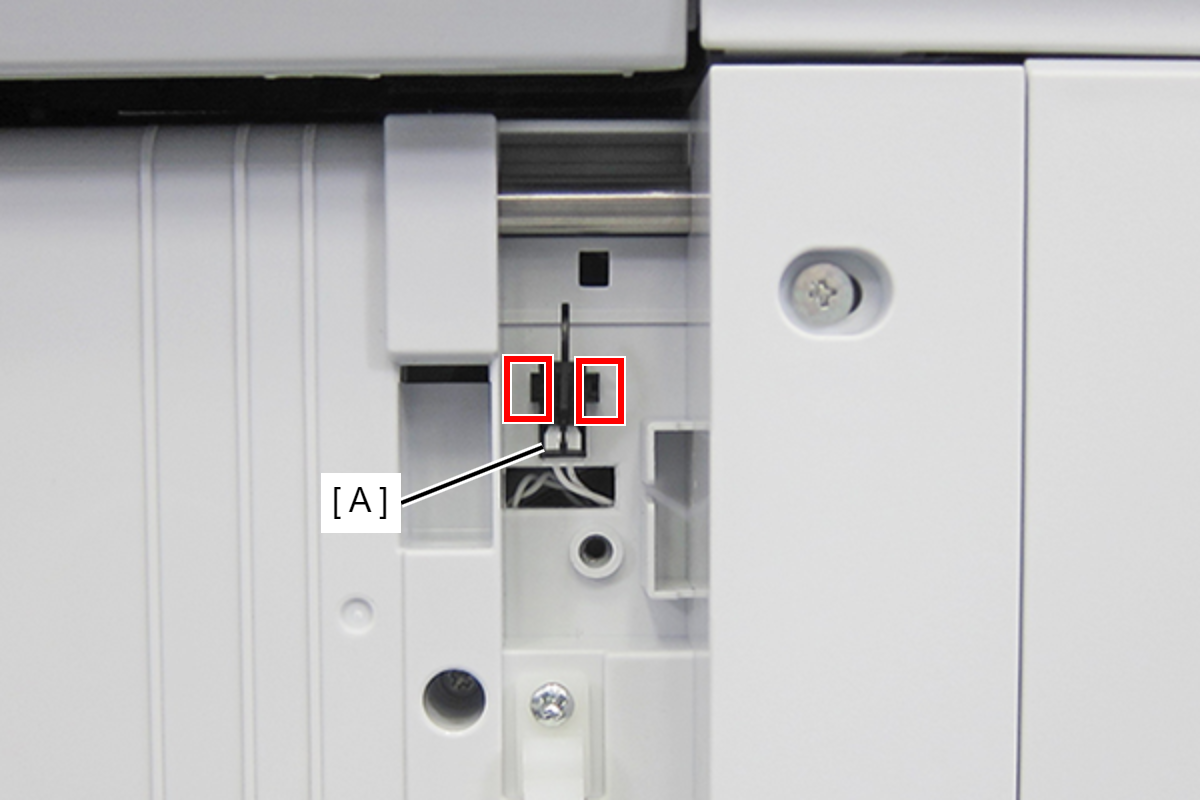

3. Release the two hooks on the rear side of the product and remove the Paper Jam Clear Cover Open Sensor (A).

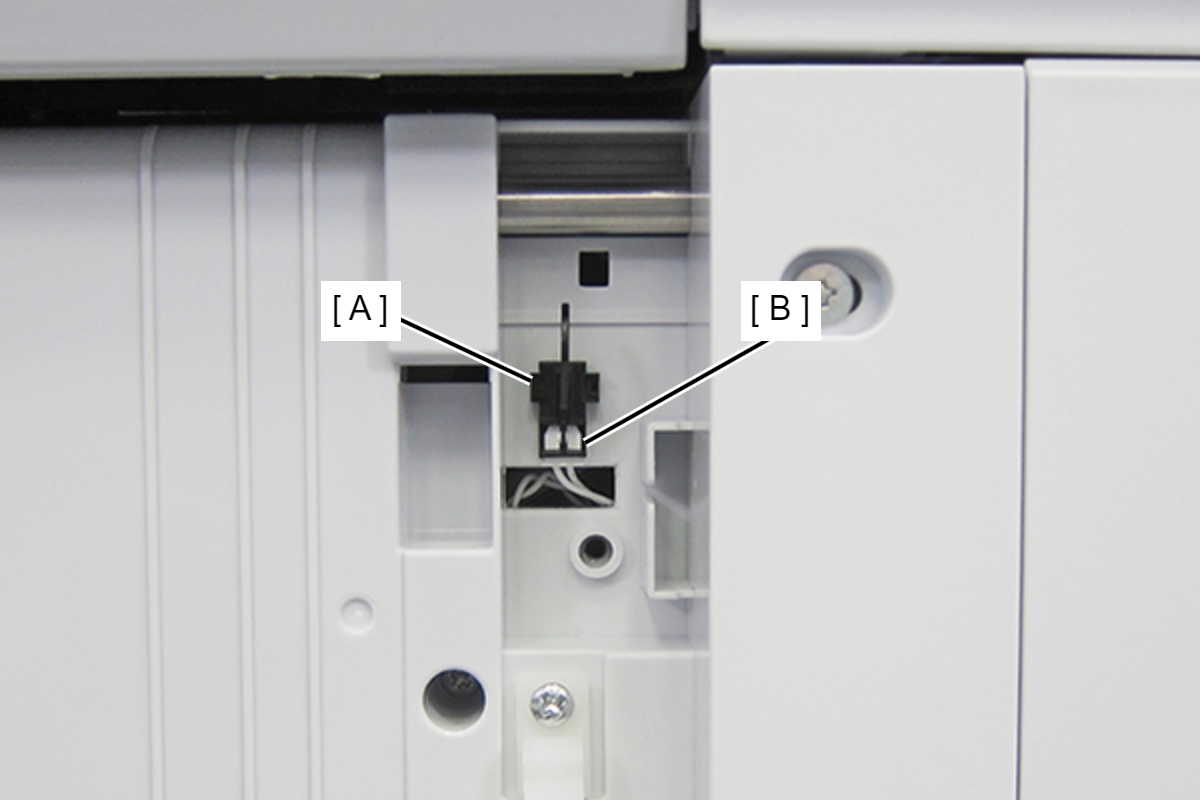

4. Remove the cable from the connector (B) of the Paper Jam Clear Cover Open Sensor (A) and remove the Paper Jam Clear Cover Open Sensor (A).
