Middle Duplex Print Guide

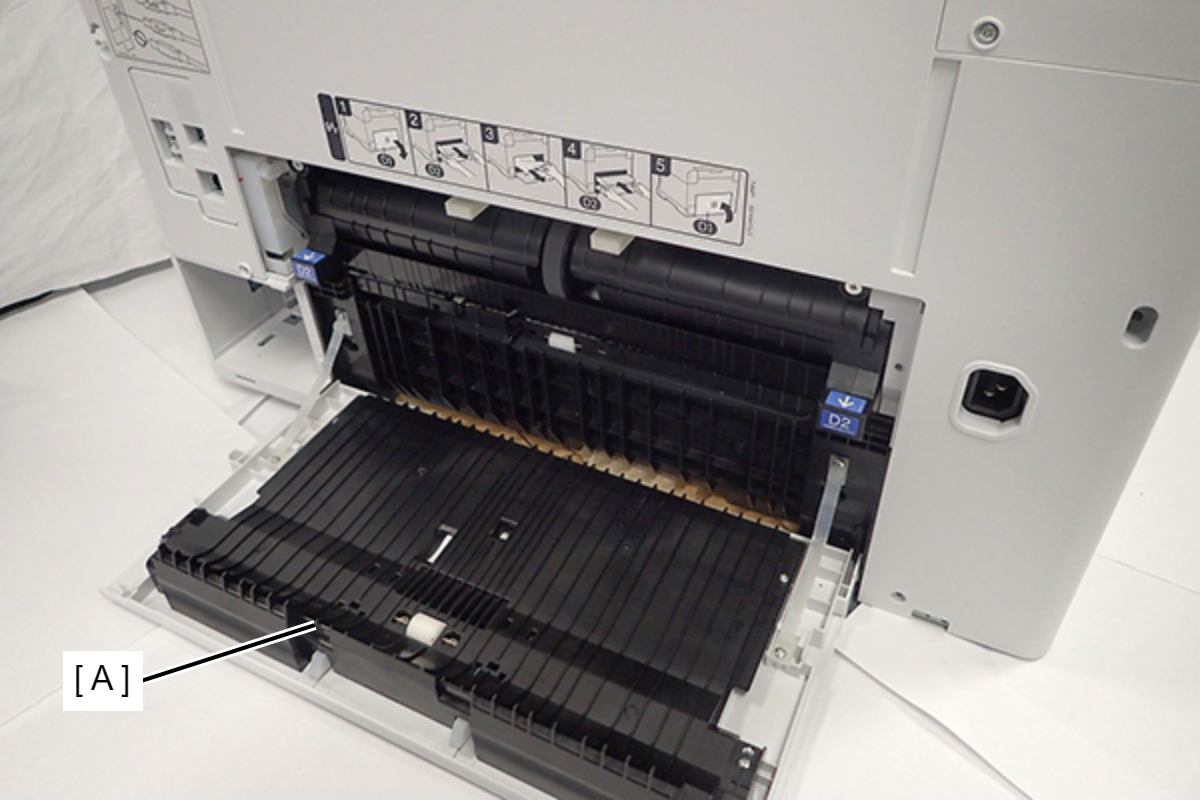

- Open the Duplex Print Cover (A).
- Remove the Duplex Print Assy (A).

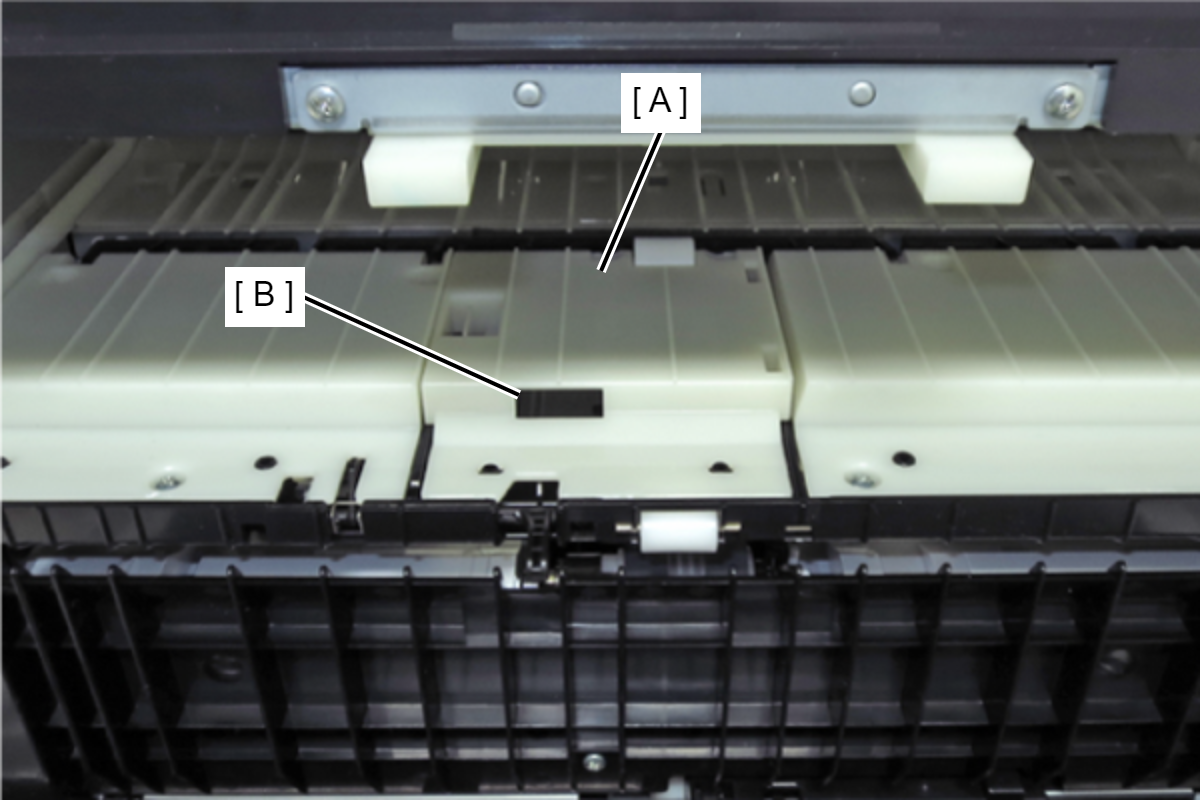

- Lift the Middle Duplex Print Guide (A) by hooking a finger on the angle hole (B), and remove it.
