Retard Roller
- Remove the Cassette Assy (A).

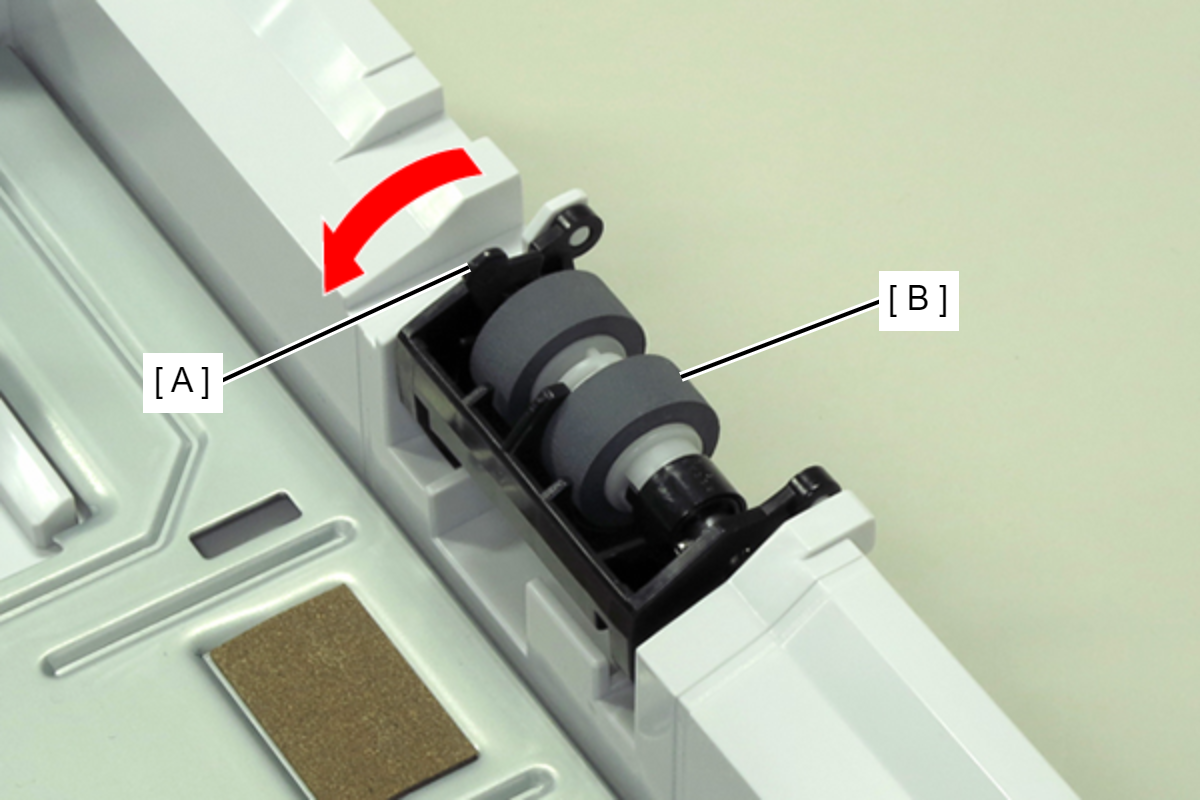

- Move the lever (A) to direction of the arrow, then remove the Retard Roller (B).
