Troubleshooting Workflow

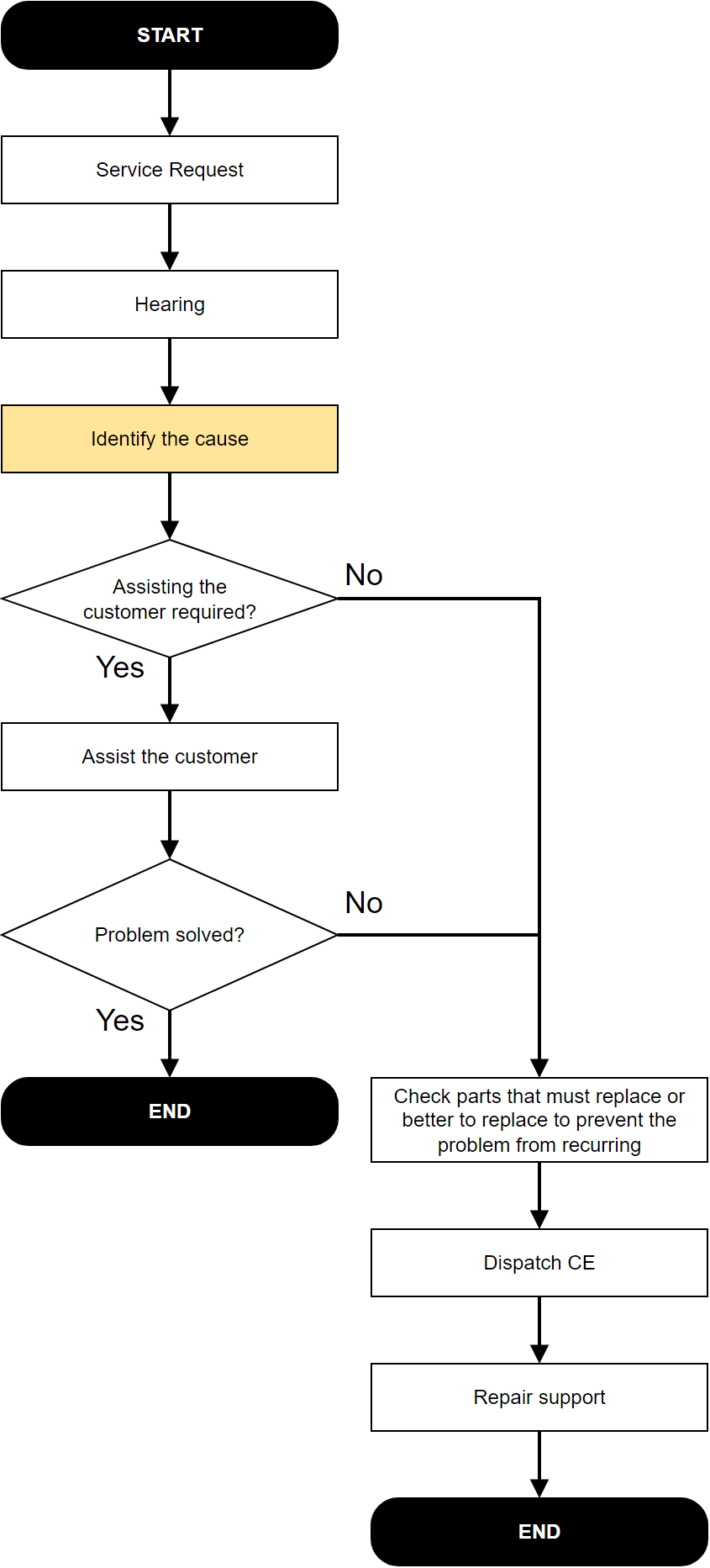

The workflow for troubleshooting is described below.
Refer to the following and identify the cause.
- For problems with error indications
- Normal Error
- Fatal Error
- Paper jam error
- For problems without error indications
