ASF Drive Assy After Parts Replacement
Procedure
- Turn the power ON.

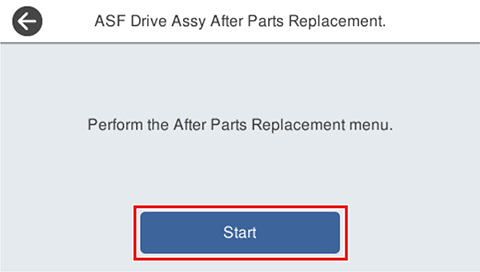

- Pull out the C1 cassette, and press [Start].

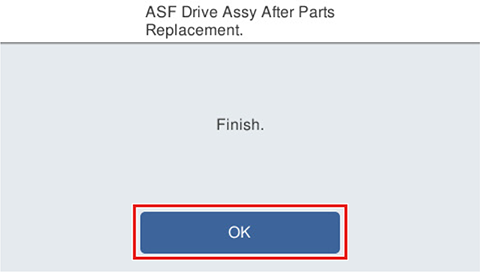

- Press [OK].
