# Left RIPS Housing Assy

1. Open the Paper Jam Clear Cover (A).

2. Remove the screw on the rear side of the product, then remove the Paper Jam Clear Cover Holder (A).

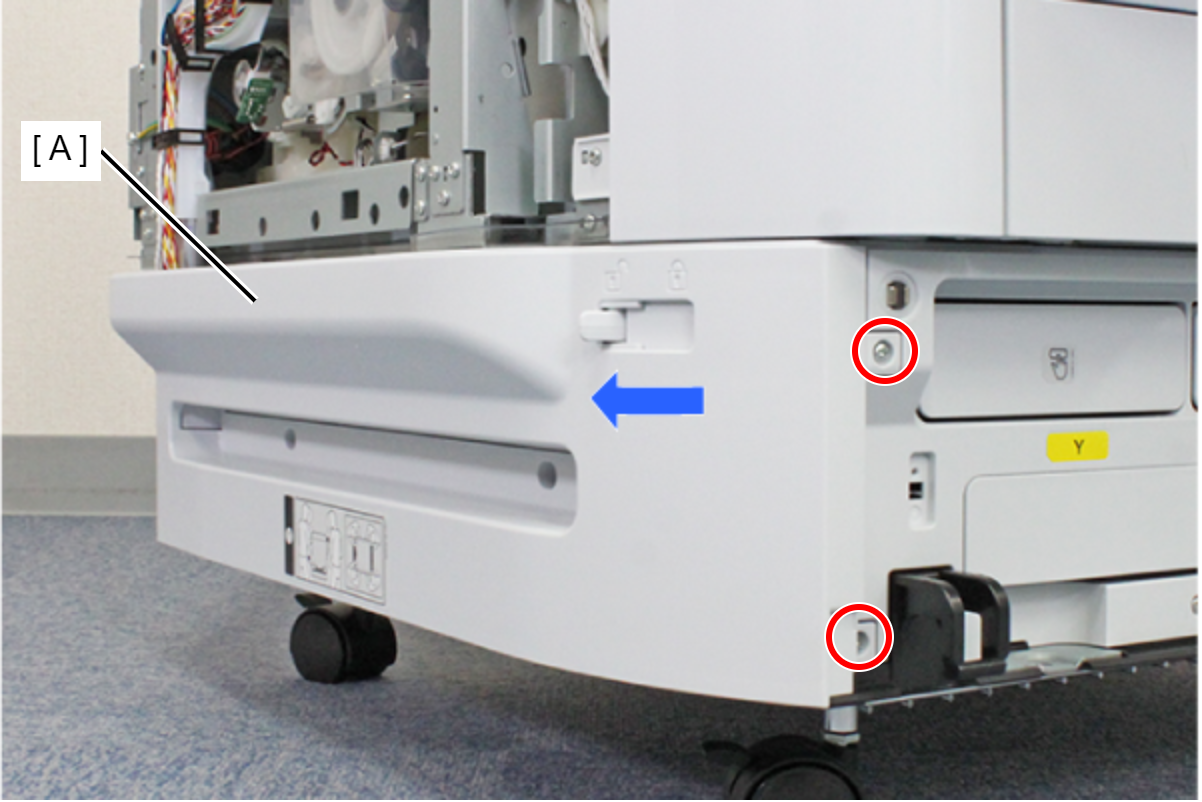

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
3. Disconnect the cable (B) from the connector of the Paper Jam Clear Cover Sensor (A).

4. Remove the four screws that secure the Rear RIPS Housing Assy (A).




   • : C.SHOULDER S-TITE,3X5
   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

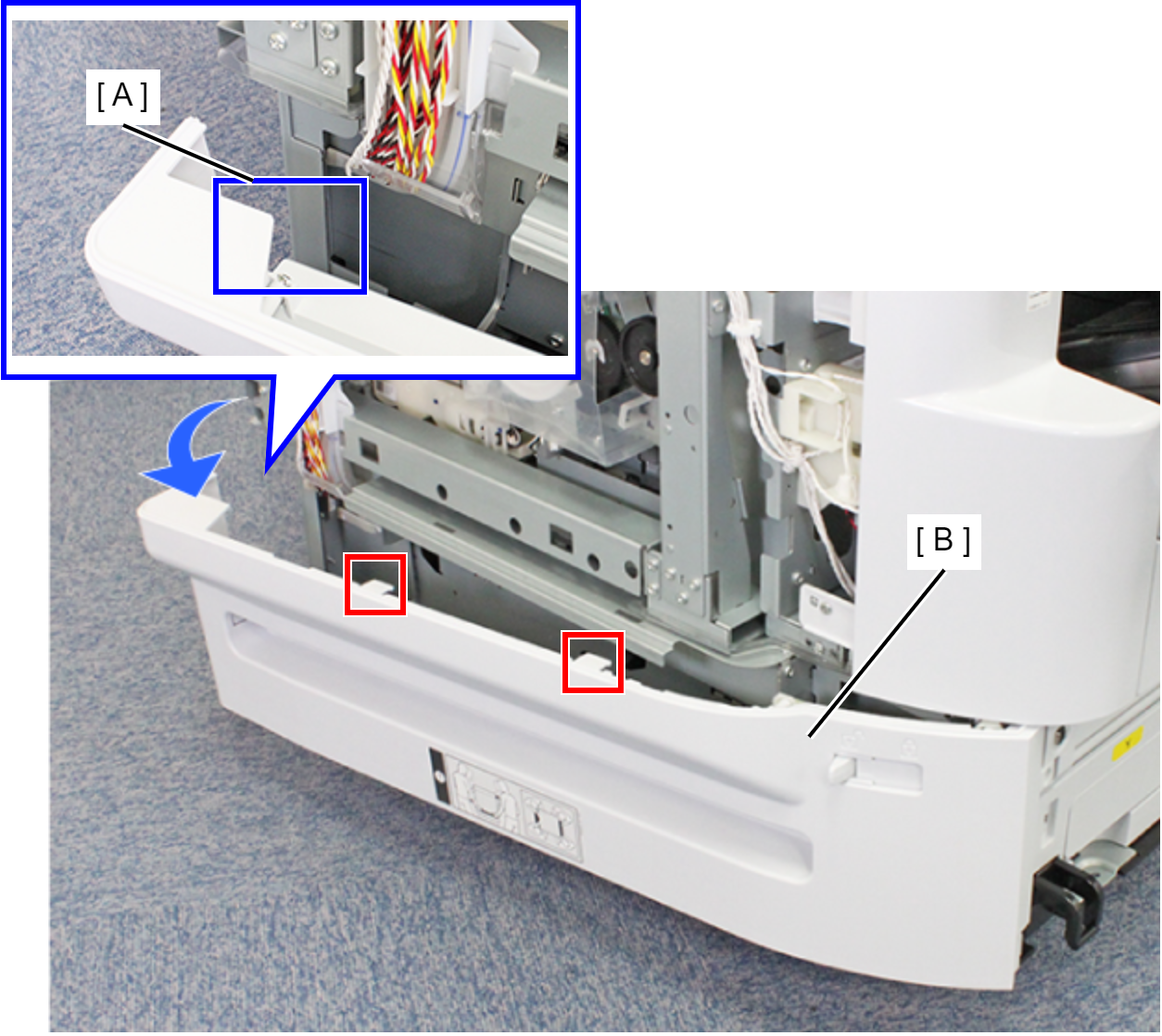

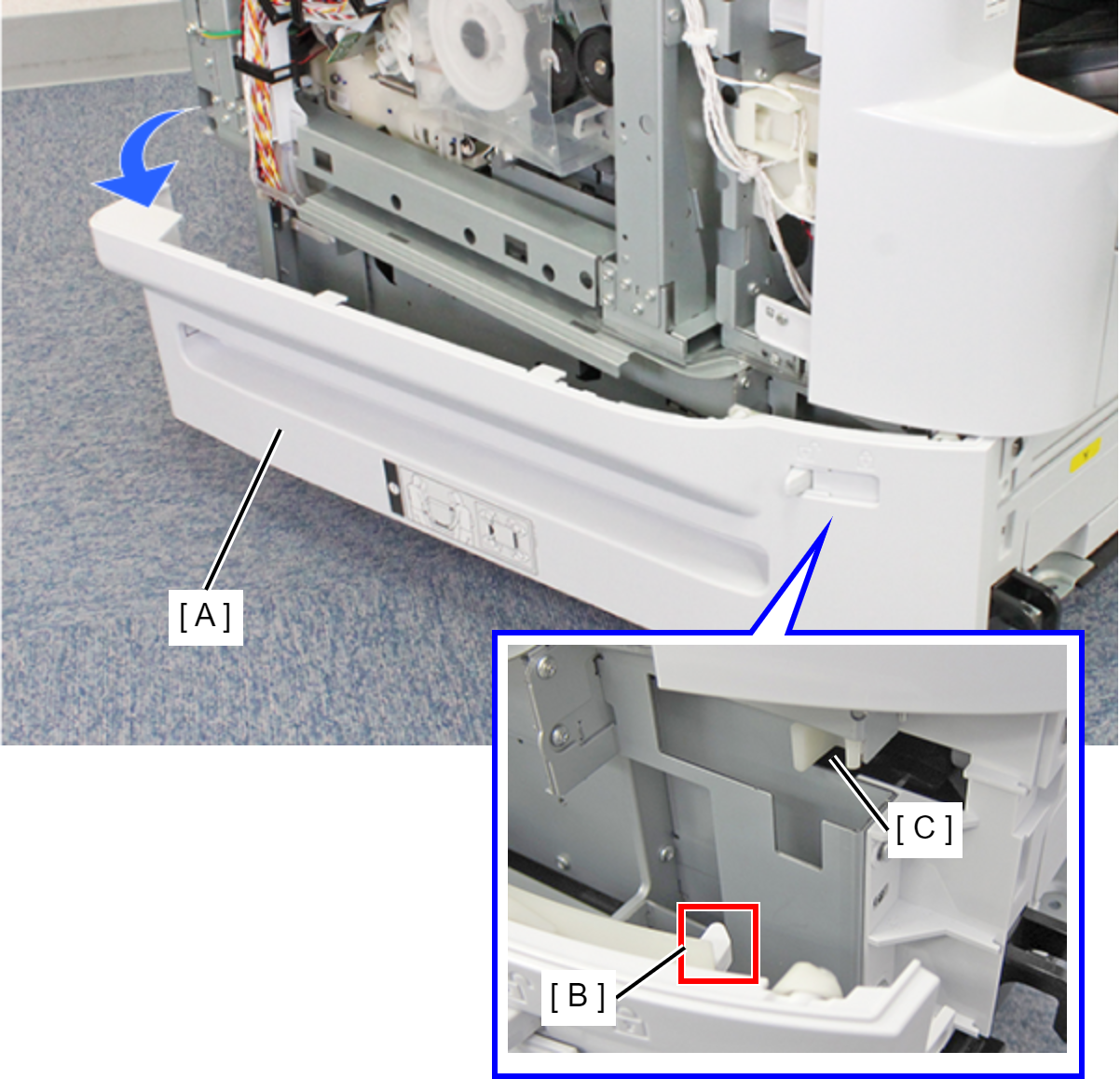

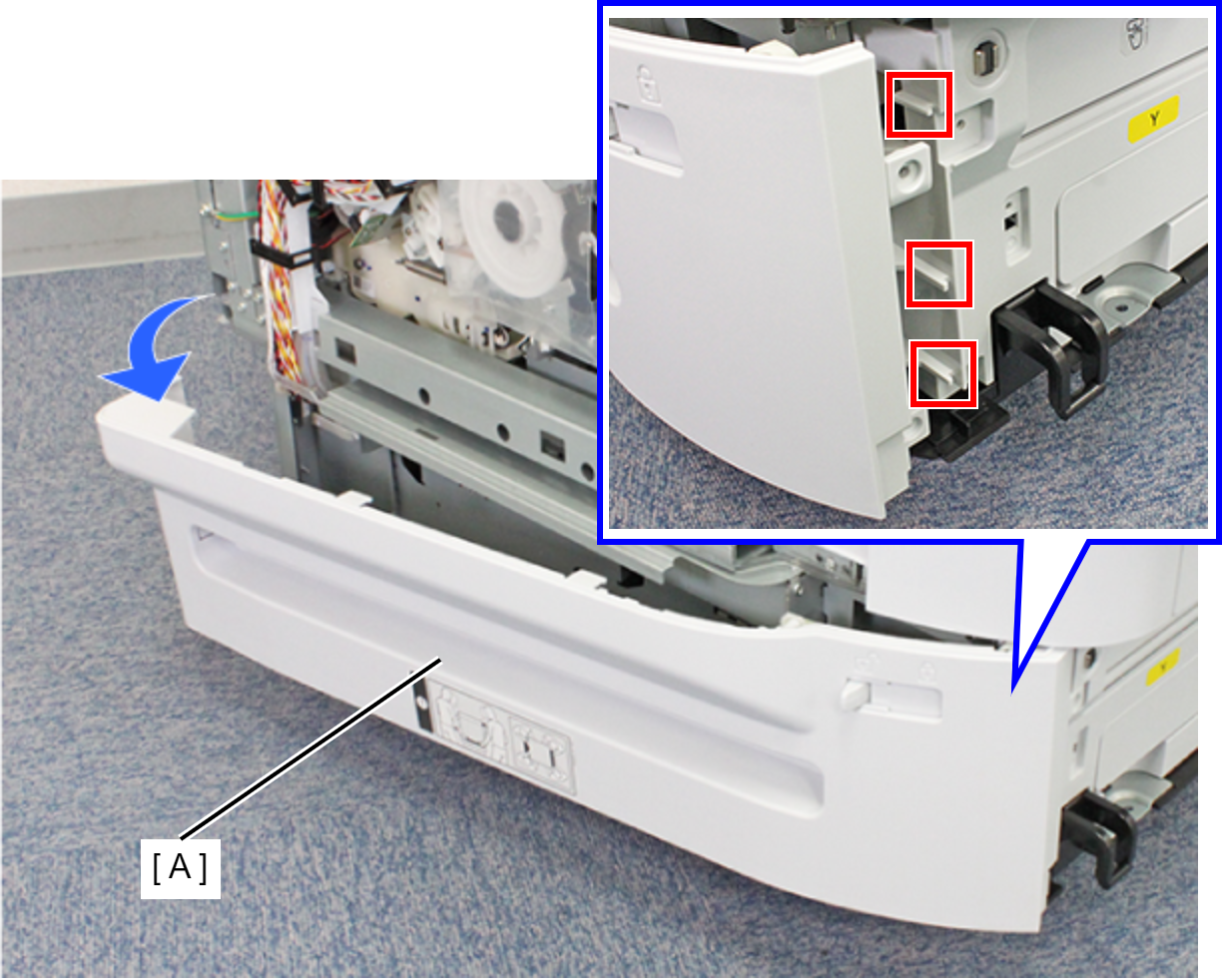

5. Remove the Rear RIPS Housing Assy (A) pulling out the cable (C) through the hole (B) of the assy.




   Assembly / 組み立て

   Before reinstalling the Rear RIPS Housing Assy (A), remove the Paper Jam Clear Cover Sensor (B). After connecting the cable, install the sensor to the Rear RIPS Housing Assy.

6. Remove the two screws on each side.

   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

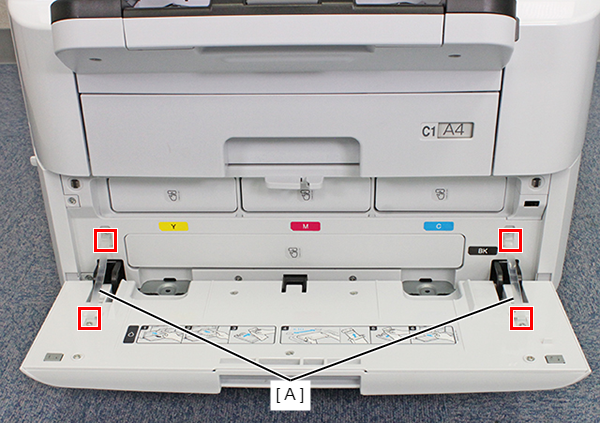

7. Release the two hooks on each side and remove the two Ink Pack Cover Belts (A).

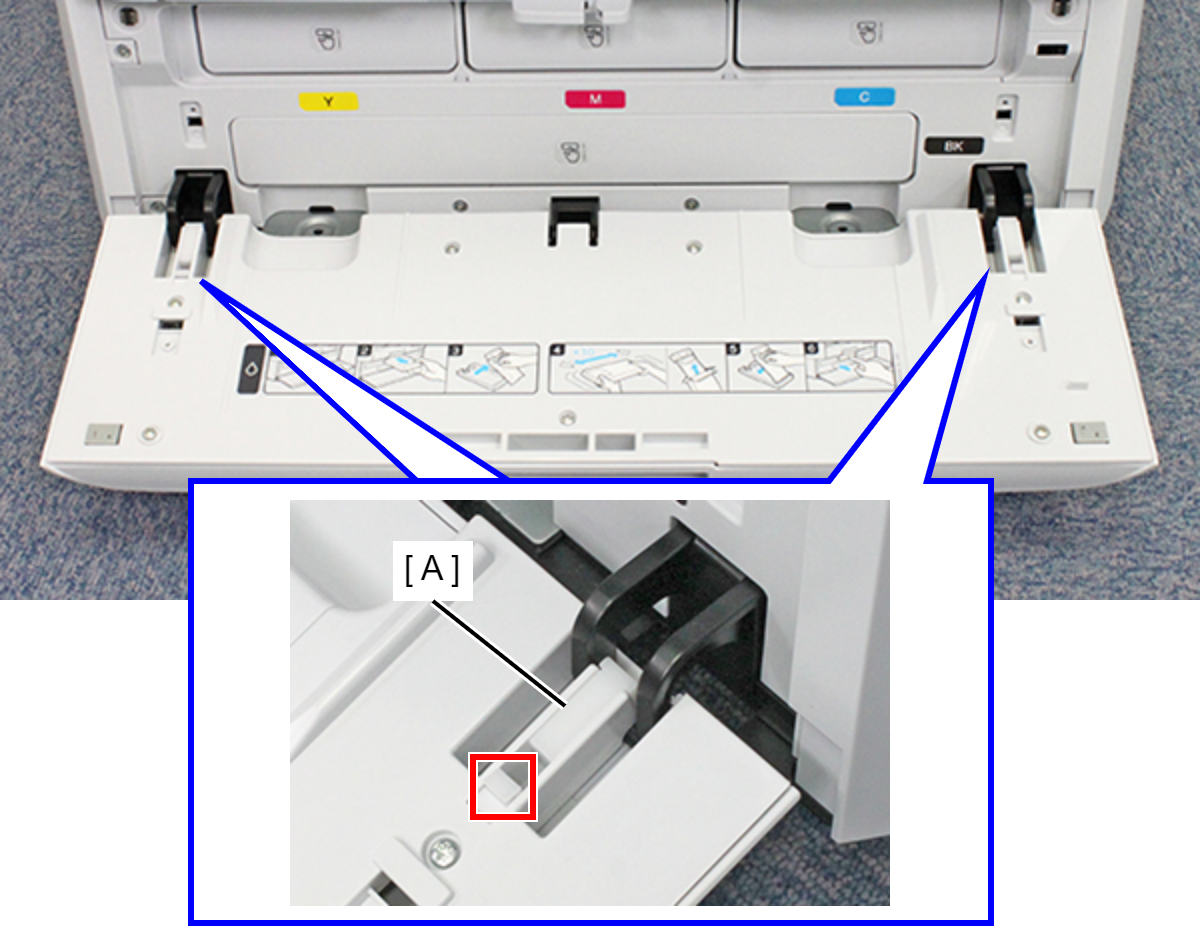

8. Release each hook and remove the two Hinge Covers (A).

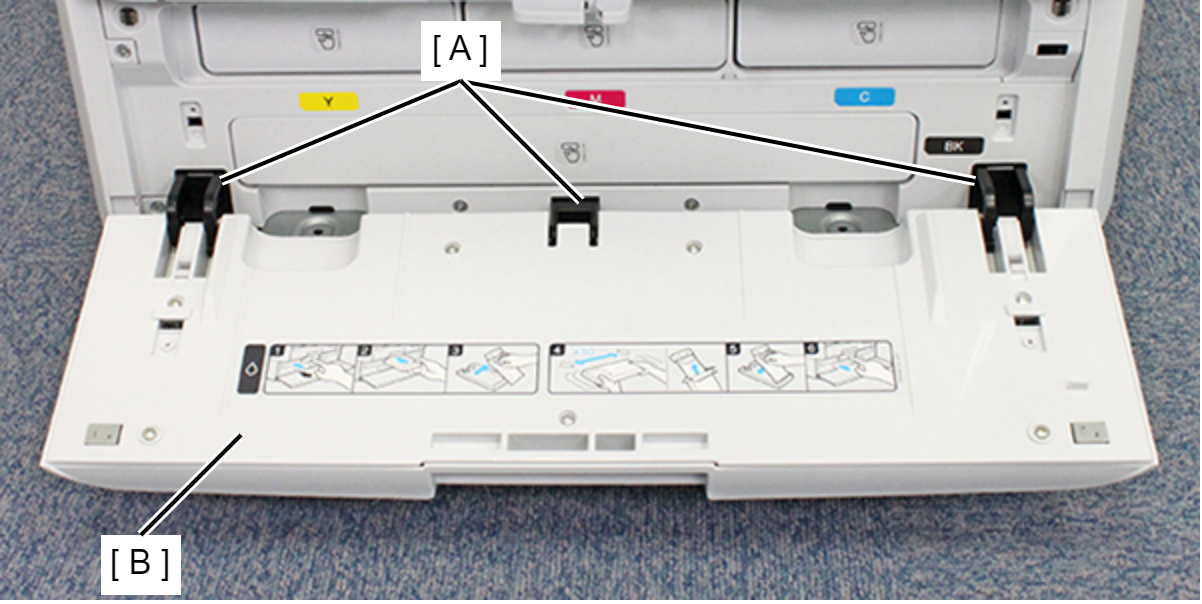

9. Remove the Ink Pack Cover (B from the three hinges (A).




10. Remove one screw.


    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
11. Slide the Left SC Cover (A) while pushing the dent (B) of Left SC Cover, and remove it.

12. Remove the four screws fastening the Left Housing (A).


    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
13. Remove the two dowels.

14. Remove the rib on the front side while lifting up the Left Housing (A).

15. Remove the rib on the back side while lifting up the Left Housing (A), release the hook (B) and then remove the Left Housing (A).

16. Move the Lock Lever (A) in the direction of the arrow to set the Ink Pack Cover lock in the released state.

17. Remove the two screws fastening the Left RIPS Housing Assy (A).

    • : C.SHOULDER S-TITE,3X5
18. Remove the two screws fastening the Left RIPS Housing Assy (A).

    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
19. Lift the Left RIPS Housing Assy (B) and rotate in the direction of the arrow while releasing the two hooks to release the interfering unit (A) behind the Left RIPS Housing Assy (B).

20. Remove the three ribs and remove the Left RIPS Housing Assy (A).




    Assembly / 組み立て

    When mounting the Left RIPS Housing Assy (A), mount by aligning the Lock Lever Shaft (B) and the receiving part (C).
