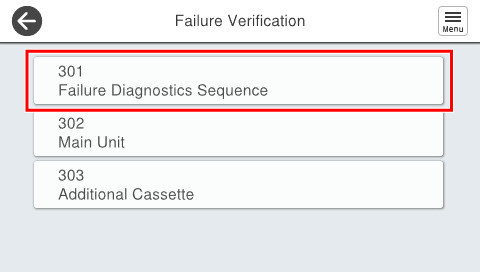

301 Failure Diagnostics Sequence

You can check the situation for each part displayed on the menu.

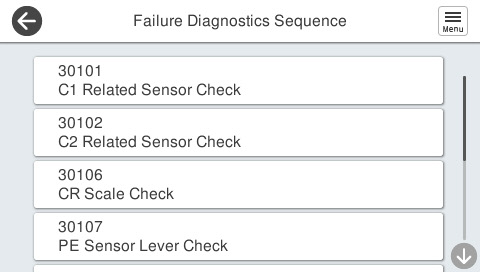

Unit	Program No.	Menu Name	Overview	Remarks

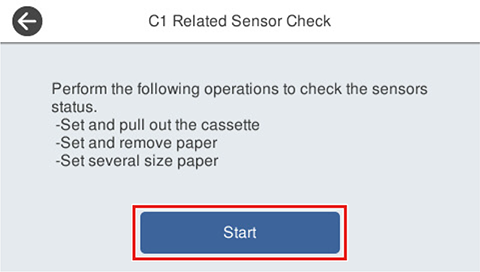

Main Unit	30101	C1 Related Sensor Check	Perform the following operations to confirm the situation of the C1 Cassette sensor and the C1 paper sensor. Cassette insertion and removal Paper setting and removal	---
Optional Paper Cassette	30102	C2 Related Sensor Check	Perform the following operations to confirm the situation of the C2, C3, and C4 cassette sensors, the paper sensor, and the hopper sensor. Cassette insertion and removal Paper setting and removal	Displayed only when the option is connected.
	30103	C3 Related Sensor Check
	30104	C4 Related Sensor Check
Main Unit	30106	CR Scale Check	The Failure Diagnostics Sequence for each part is executed, and when there is a problem the error is displayed.	---
	30107	PE Sensor Lever Check
	30108	APG Operation Check
	30109	Paper Eject Tray Check	This allows you to check the operation of the motor and sensor for extending the output tray (Paper Eject Tray).
	30110	NIP Solenoid/Sensor Check	The Failure Diagnostics Sequence for each part is executed, and when there is a problem the error is displayed.
	30111	PF Related Parts Check
	30112	PW Sensor Shutter Check
