70703 Check Pattern Print (Plain)

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
70703 Check Pattern Print (Plain)
  • Print from Service Nozzle Check Pattern to Gradation Pattern in batches.
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 10
 --- ---
Procedure
  1. Start service support mode. (Starting Service Support Mode)

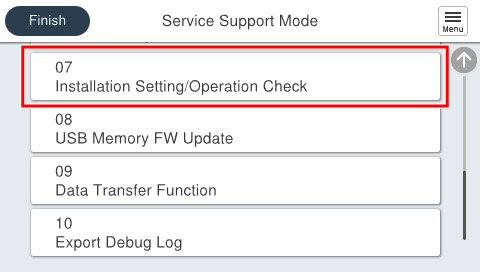

  2. Select [07 Installation Setting / Operation Check].

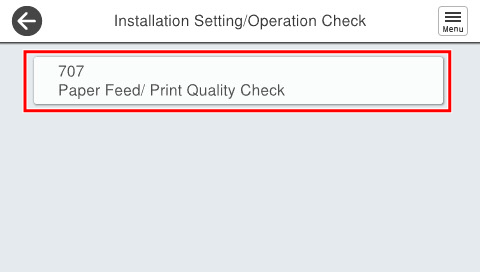

  3. Select the [707 Paper Feed/ Print Quality Check].

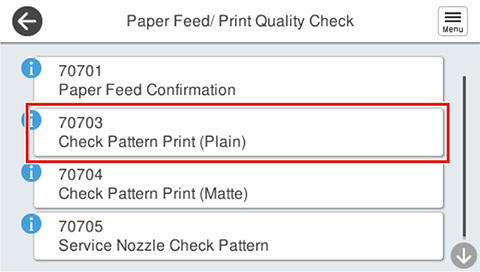

  4. Select [70703 Check Pattern Print (Plain)].

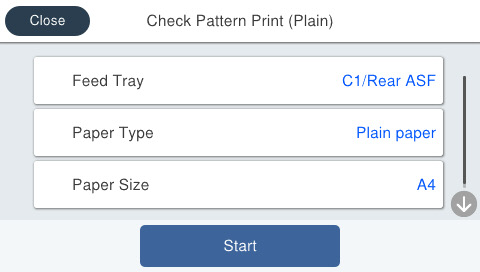

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, Rear ASF Setting change not possible. Set the paper in C1 or Rear ASF
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---
  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “Check Pattern Print (Plain)”.)
