30205 Others

You can check the situation and detected temperature of each sensor displayed on the menu.

Menu list
Program No. Menu Name Judgment method Remarks

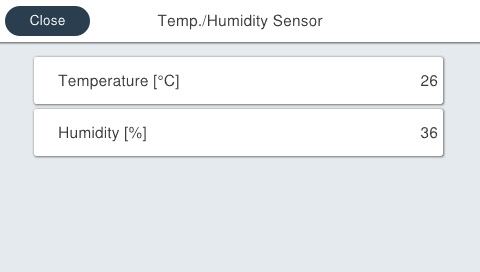

3020501 Temperature and Humidity Sensor Check the indicated values of temperature and humidity.

---
3020502 Ink End Sensor
  1. Press [Start].
  2. Check that the below items displayed are OK.
    • Black
    • Magenta
    • Cyan
    • Yellow

TRUE: Ink End

FALSE: Ink Remaining

Default: FALSE
3020507 Head Temperature
  1. Press [Start].
  2. Check the temperature displayed.

---
Procedure
  1. Start service support mode. (Starting Service Support Mode)

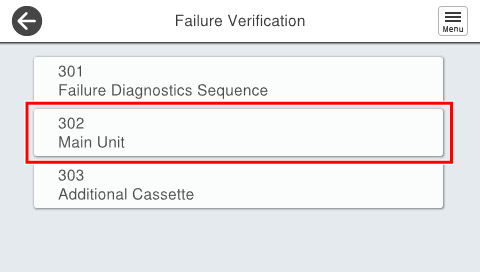

  2. Select [03 Failure Verification].

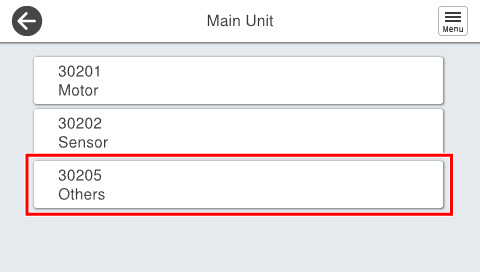

  3. Select [302 Main Unit].

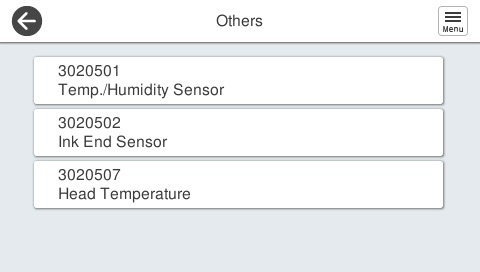

  4. Select [30205 Others].
  5. Select the menu the user wishes to execute.
  6. Check the situation displayed.
